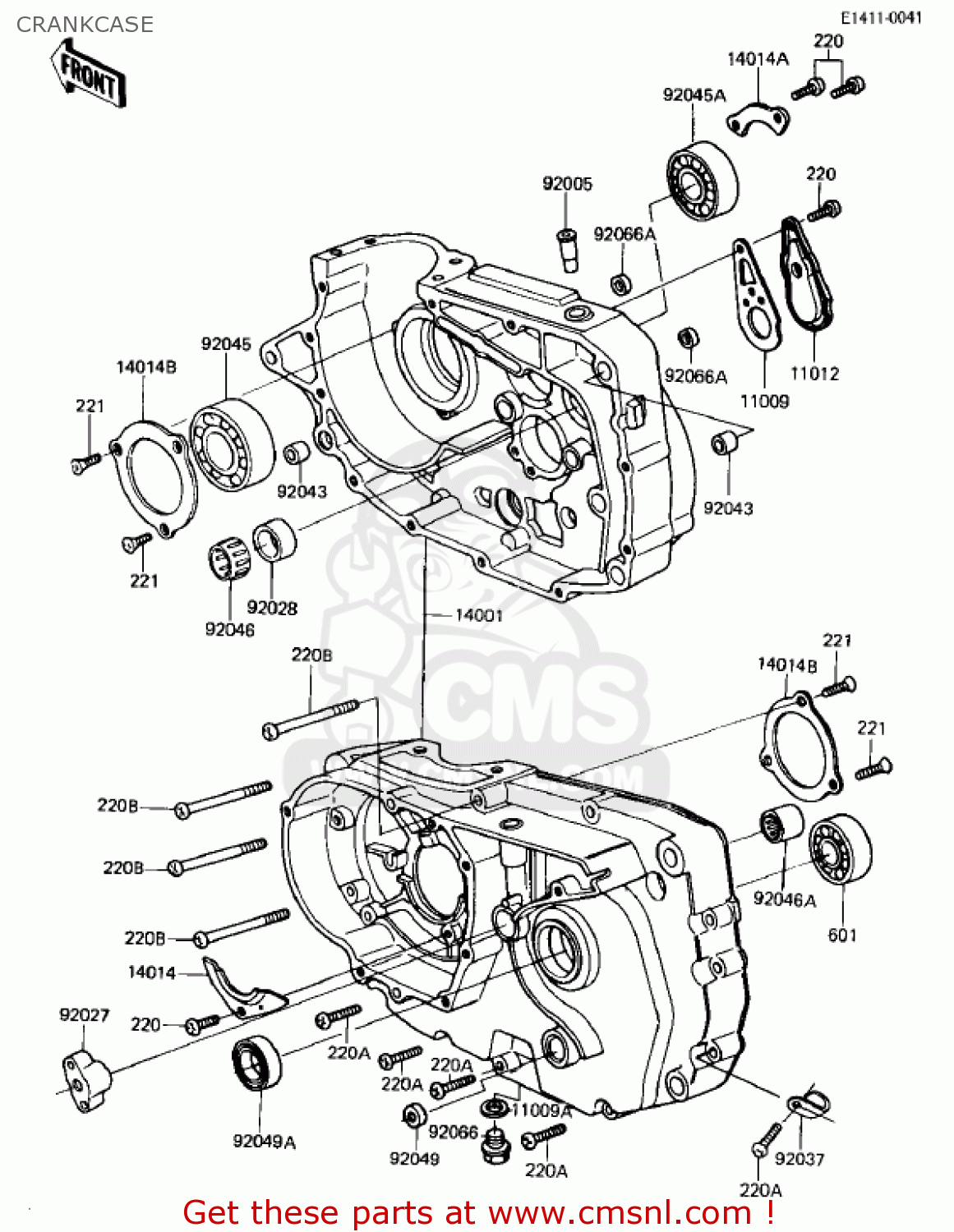

CRANKCASE

ref

part #

description

quantity

11009

16079002
ref: 11009

GASKET (MCA)

€ 2.50

11009A

92065097
ref: 11009A

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

11012

16078002
ref: 11012

CAP

€ 6.00

14001

140015034
ref: 14001

CRANKCASE SET,F.BLACK

€ 580.00

14014

14014035
ref: 14014

PLATE-POSITION,CAM CH

€ 3.00

14014A

14014037
ref: 14014A

PLATE-POSITION

€ 2.50

14014B

140141004
ref: 14014B

PLATE,POSITIONING

€ 8.00

92005

14067006
ref: 92005

BREATHER JOINT

€ 14.00

92027

920271467
ref: 92027

COLLAR,PUSH ROD

€ 2.50

92028

92028132
ref: 92028

BUSHING

€ 28.00

92037

21126008
ref: 92037

CLAMP,WIRING HARNESS

€ 3.00

92043

92042032
ref: 92043

PIN,DOWEL,14MM

€ 3.00

92045

92045037
ref: 92045

BEARING-BALL,#6306

€ 40.00

92045A

92045038
ref: 92045A

BEARING-BALL,#6006

€ 23.50

92046

920461184
ref: 92046

BEARING-NEEDLE

€ 20.00

92046A

92046060
ref: 92046A

BEARING-NEEDLE,HMK151

€ 17.50

92049

92050082
ref: 92049

OIL SEAL,CHANGE SHAFT

€ 5.50

92049A

920491159
ref: 92049A

SEAL-OIL,TC32457

€ 8.00

92066

920661174
ref: 92066

PLUG,OIL DRAIN,12X15

€ 4.00

92066A

920661282
ref: 92066A

PLUG

€ 4.00

220

220B0614
ref: 220

SCREW-PAN HEAD,6X14

€ 2.00

220A

220B0630
ref: 220A

SCREW-PAN HEAD,6X30

€ 2.50

220B

220B0675
ref: 220B

SCREW,PAN HEAD,6X75

€ 3.00

221

221B0616
ref: 221

SCREW-CNTSNK HD,6X16

€ 0.50

601

601B6205
ref: 601

BEARING-BALL,#6205C3

€ 14.00
