FRAME FITTINGS

KL250A5 KLR250 1982 USA CANADA

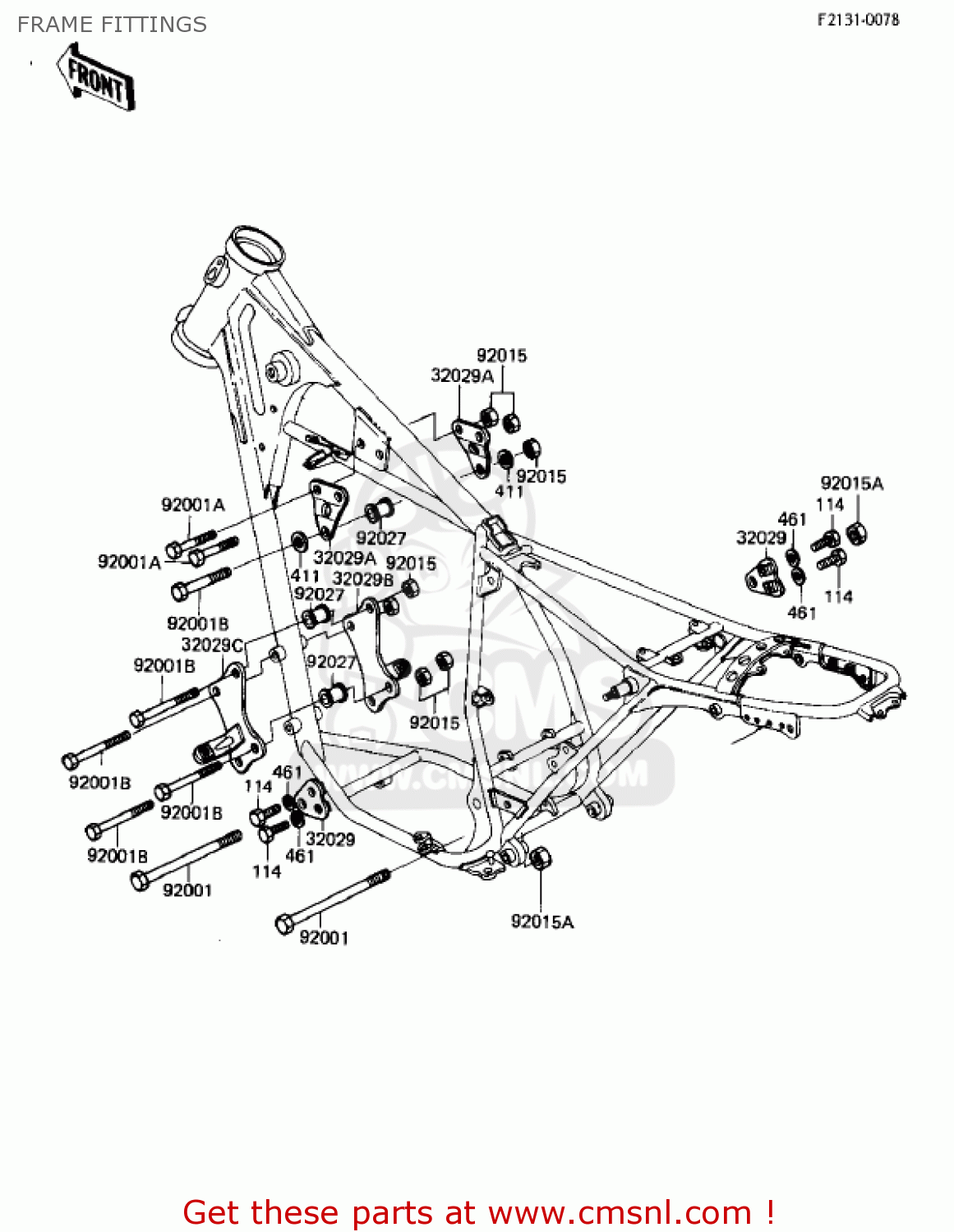

Frame fittings diagram KL250A5 KLR250 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

32029

320291008
ref: 32029

BRACKET-ENGINE

€ 7.00

32029A

320291083
ref: 32029A

BRACKET,ENGINE,HEAD

€ 6.50

32029B

320291128
ref: 32029B

BRACKET,ENGINE,R.H

€ 8.50

32029C

320291158
ref: 32029C

BRACKET,ENGINE,FR,LH

€ 10.50

92001

920011602
ref: 92001

BOLT,FLANGED,10X110

€ 7.50

92001A

920011579
ref: 92001A

BOLT,FLANGED,8X45

€ 3.00

92001B

920011596
ref: 92001B

BOLT,FLANGED,8X85

€ 3.50

92015

920151124
ref: 92015

NUT,LOCK,8MM

€ 3.50

92015A

920151429
ref: 92015A

NUT,10MM

€ 4.50

92027

920271180
ref: 92027

COLLAR,L=20

€ 4.50

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

411

411B0800
ref: 411

WASHER-PLAIN,8MM

€ 0.50

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50
