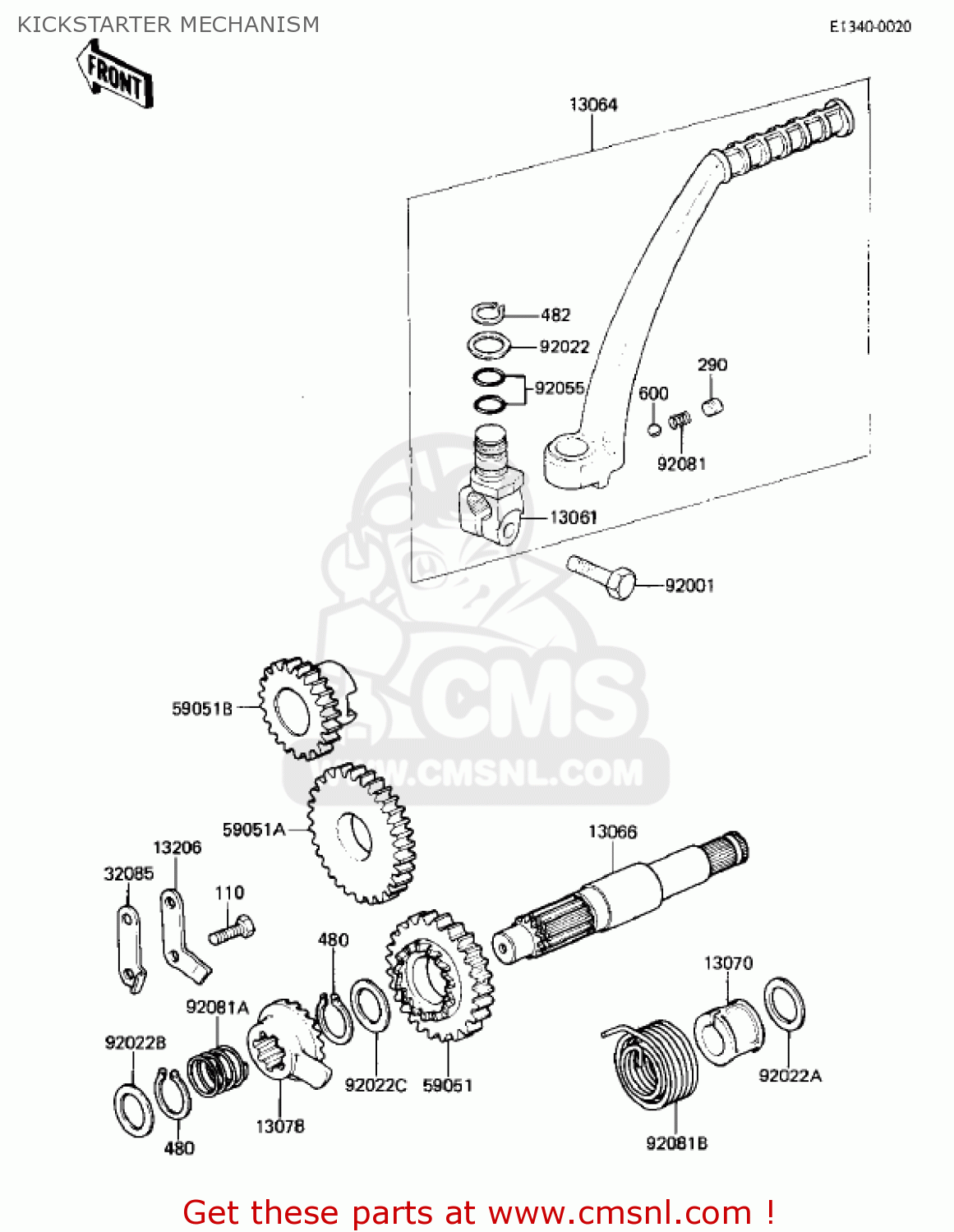

KICKSTARTER MECHANISM

ref

part #

description

quantity

13061

130611045
ref: 13061

BOSS,KICK PEDAL

€ 43.00

13064

130641027
ref: 13064

LEVER-ASSY-KICK,PEDAL

€ 134.00

13066

130661018
ref: 13066

SHAFT-KICK,KICK

€ 79.50

13070

13070011
ref: 13070

GUIDE,KICKSTARTER SPR

€ 6.50

13078

130781052
ref: 13078

RATCHET,KL250-D2

€ 50.50

13206

132061004
ref: 13206

GUIDE,KICK RATCHET

€ 4.00

32085

13072017
ref: 32085

STOPPER,KICKSTARTER

€ 9.50

59051

132161099
ref: 59051

GEAR-COMP,KICKSTARTER

€ 38.50

59051A

13073013
ref: 59051A

GEAR-SPUR,KICK STARTE

€ 67.50

59051B

13075012
ref: 59051B

GEAR-SPUR,KICKSTARTER

€ 56.50

92001

920011042
ref: 92001

BOLT,HEX HEAD,8X28

€ 4.00

92022

920221019
ref: 92022

WASHER,15.2X20X1

€ 3.50

92022A

92022118
ref: 92022A

WASHER,18.5X23X1.2

€ 3.00

92022B

92022269
ref: 92022B

WASHER,PLAIN

€ 1.00

92022C

92022315
ref: 92022C

WASHER, 16.8X22X0.5

€ 4.00

92055

92055061
ref: 92055

RING-O,10X1.5

€ 3.00

92081

92081020
ref: 92081

SPRING-KICK PEDAL

€ 2.50

92081A

92081122
ref: 92081A

SPRING,RATCHET

€ 6.00

92081B

92082003
ref: 92081B

SPRING-KICKSTARTER

€ 19.00

110

112G0618
ref: 110

BOLT-UPSET

€ 0.50

290

290Q0808
ref: 290

SCREW,8X8

€ 2.50

480

480J1600
ref: 480

CIRCLIP-TYPE-C,16MM

€ 2.50

482

482K0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50
