CHASSIS ELECTRICAL EQUIPMENT
KL250A5 KLR250 1982 USA CANADA

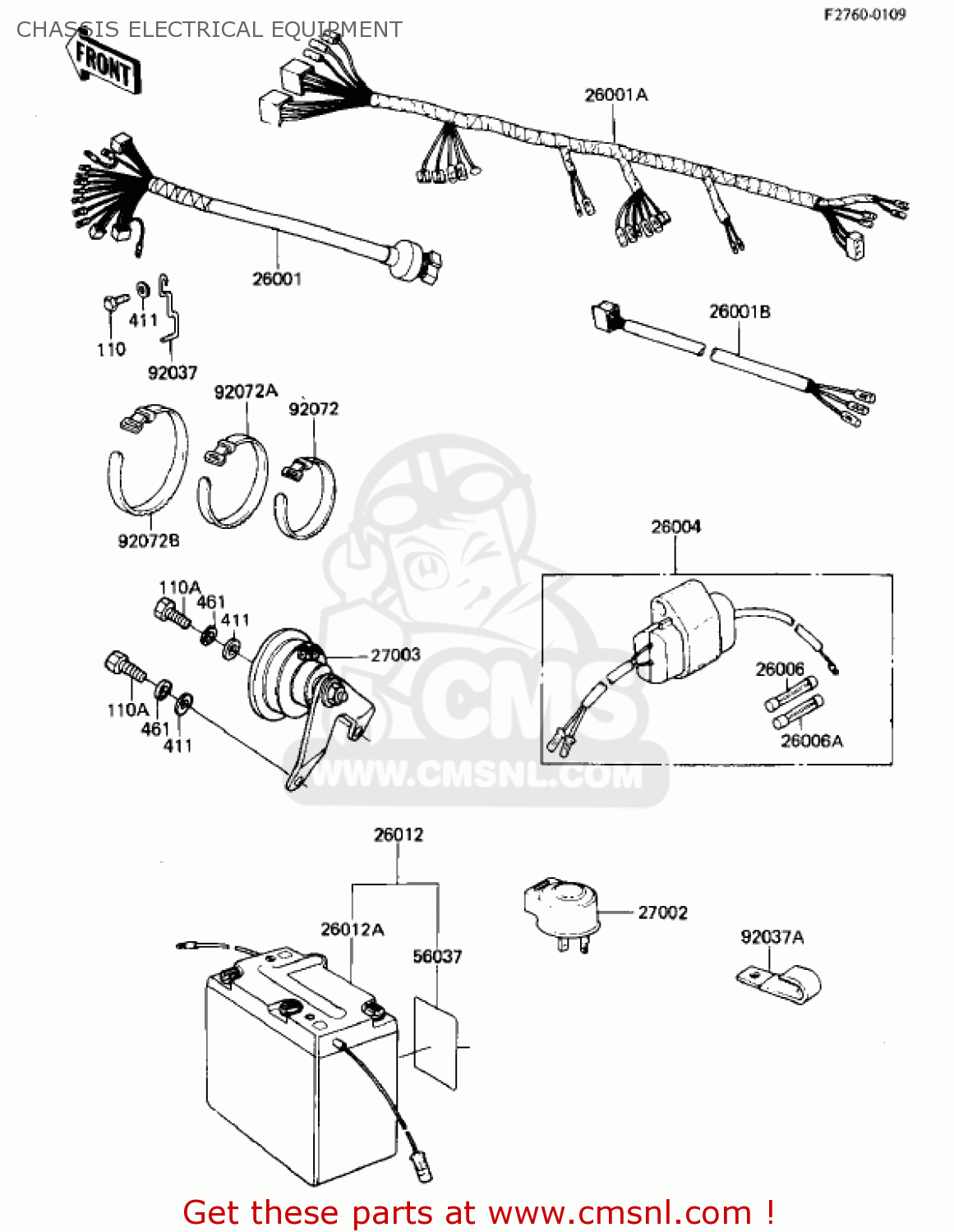

Chassis electrical equipment diagram KL250A5 KLR250 1982 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT KL250A5 KLR250 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
26001
260011250
ref: 26001
WIRING HARNESS,FR
€ 99.00
26001A
260011310
ref: 26001A
HARNESS,MAIN
€ 100.00
26001B
26002046
ref: 26001B
HARNESS,TAIL LAMP
€ 12.50
26004
260041010
ref: 26004
FUSE-ASSY
€ 19.50
26006
260061002
ref: 26006
FUSE,10A,L=30M/M
€ 3.00
26006A
260061003
ref: 26006A
FUSE,15A,L=30M/M
€ 3.00
26012
K26012034
ref: 26012
US
BATTERY,YUA,6N6-1D-2
€ 78.00
26012A
260121003
ref: 26012A
CN
BATTERY,6V 6AH
€ 49.50
27002
27002013
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 27.00
27003
270031008
ref: 27003
HORN
€ 36.00
56037
560401036
ref: 56037
US
WARNING, BATTERY
€ 2.00
92037
920371062
ref: 92037
CLAMP,HEAD LAMP HARNS
€ 3.50
92037A
920371069
ref: 92037A
CLAMP,L=60
€ 1.50
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072031
ref: 92072A
BAND,MIDDLE
€ 3.00
92072B
92072032
ref: 92072B
BAND,LONG
€ 3.00
110
112G0612
ref: 110
BOLT-UPSET
€ 2.50
110A
112G0616
ref: 110A
BOLT UPSET,6X16
€ 1.00
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
