IGNITION/GENERATOR/REGULATOR (H1

KH500A8 1976 CANADA

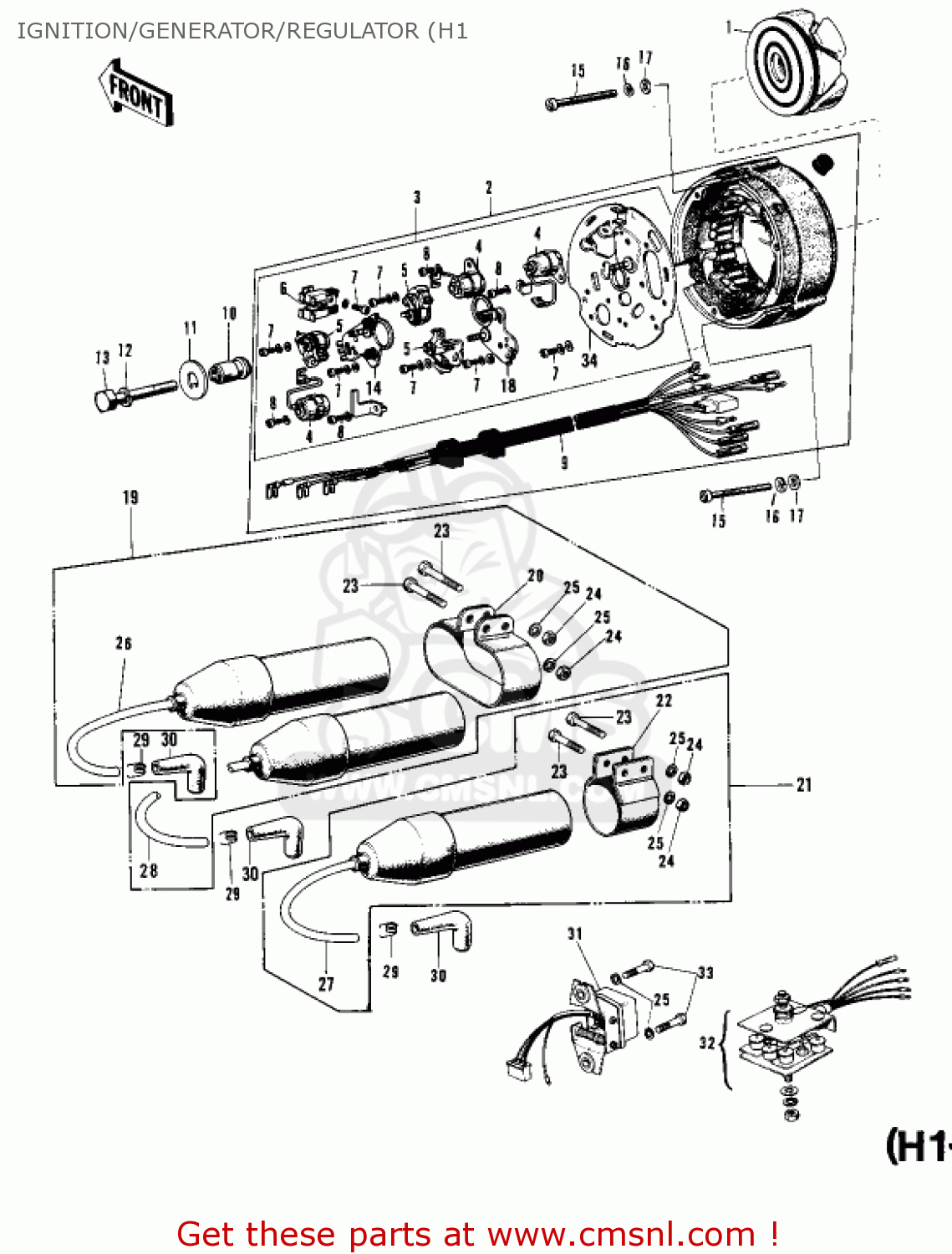

Ignition/generator/regulator (h1 diagram KH500A8 1976 CANADA

IGNITION/GENERATOR/REGULATOR (H1 KH500A8 1976 CANADA

IGNITION/GENERATOR/REGULATOR (H1 KH500A8 1976 CANADA

prices are in EUR

ref

part #

description

quantity

1

21007016
ref: 1

ROTOR

€ 124.50

2

21076012
ref: 2

YOKE ASSEMBLY

€ 1,091.00

3

21018001
ref: 3

BREAKER ASSY

€ 68.50

4

21013015
ref: 4

CONDENSER

€ 8.00

5

21082007
ref: 5

POINT-CONTACT BREAKER

€ 50.50

6

21088009
ref: 6

HOLDER-CARBON BRUSH

€ 27.50

7

21085004
ref: 7

SCREW-PAN HEAD,4X8

€ 0.50

7

220B0408
ref: 7

SCREW-PAN-CROS

€ 0.50

8

21085005
ref: 8

UNAVAILABLE IN PRICE BOOK

€ 0.00

8

220B0406
ref: 8

SCREW-PAN-CROS,4X6

€ 2.50

9

21029021
ref: 9

WIRING HARNESS-MAG

€ 37.00

10

21103005
ref: 10

CAM-MAGNETO

€ 51.50

11

21106003
ref: 11

PLATE,CAM

€ 6.50

12

461F0800
ref: 12

WASHER-SPRING,8MM

€ 0.50

13

920011583
ref: 13

BOLT,FLANGED,8X70

€ 6.00

14

21156007
ref: 14

CENTER BREAKER PLATE

€ 39.50

15

220B0555A
ref: 15

SCREW-PAN HEAD,5X55

€ 2.00

16

461F0500
ref: 16

WASHER-SPRING,5MM

€ 0.50

17

411B0500
ref: 17

WASHER-PLAIN,5MM

€ 0.50

18

21156006
ref: 18

BREAKER PLATE,RH

€ 38.00

19

21121054
ref: 19

COIL-IGNITION,L.H&R.H

€ 110.00

20

21126005
ref: 20

CLAMP-IGNITION COIL

€ 11.50

21

21121055
ref: 21

COIL-IGNITION,CENTER

€ 65.00

22

21126006
ref: 22

CLAMP-IGNITION COIL

€ 9.50

23

112G0640
ref: 23

BOLT-UPSET,6X40

€ 2.50

24

311B0600
ref: 24

NUT,6MM

€ 0.50

25

461F0600
ref: 25

WASHER-SPRING,6MM

€ 0.50

26

21133023
ref: 26
L=215 MM

CORD-HIGH TENTION,L.H

€ 12.00

27

21133021
ref: 27
L=106 MM

CORD-HIGH TENSION,CNT

€ 8.00

28

21133025
ref: 28
L=215 MM

CORD-HIGH TENTION,R.H

€ 7.00

29

92101001
ref: 29

SPRING-SPARK PLUG CAP

€ 1.50

30

21130009
ref: 30

CAP-SPARK PLUG

€ 15.00

31

21072004
ref: 31

REGULATOR-VOLTAGE

€ 190.00

32

21061008
ref: 32

RECTIFIER

€ 225.50

33

112G0618
ref: 33

BOLT-UPSET

€ 0.50

34

21155006
ref: 34

YOKE PLATE

€ 54.50
