FENDERS ('73-'75 D/E/F & '76 A8)
KH500A8 1976 CANADA

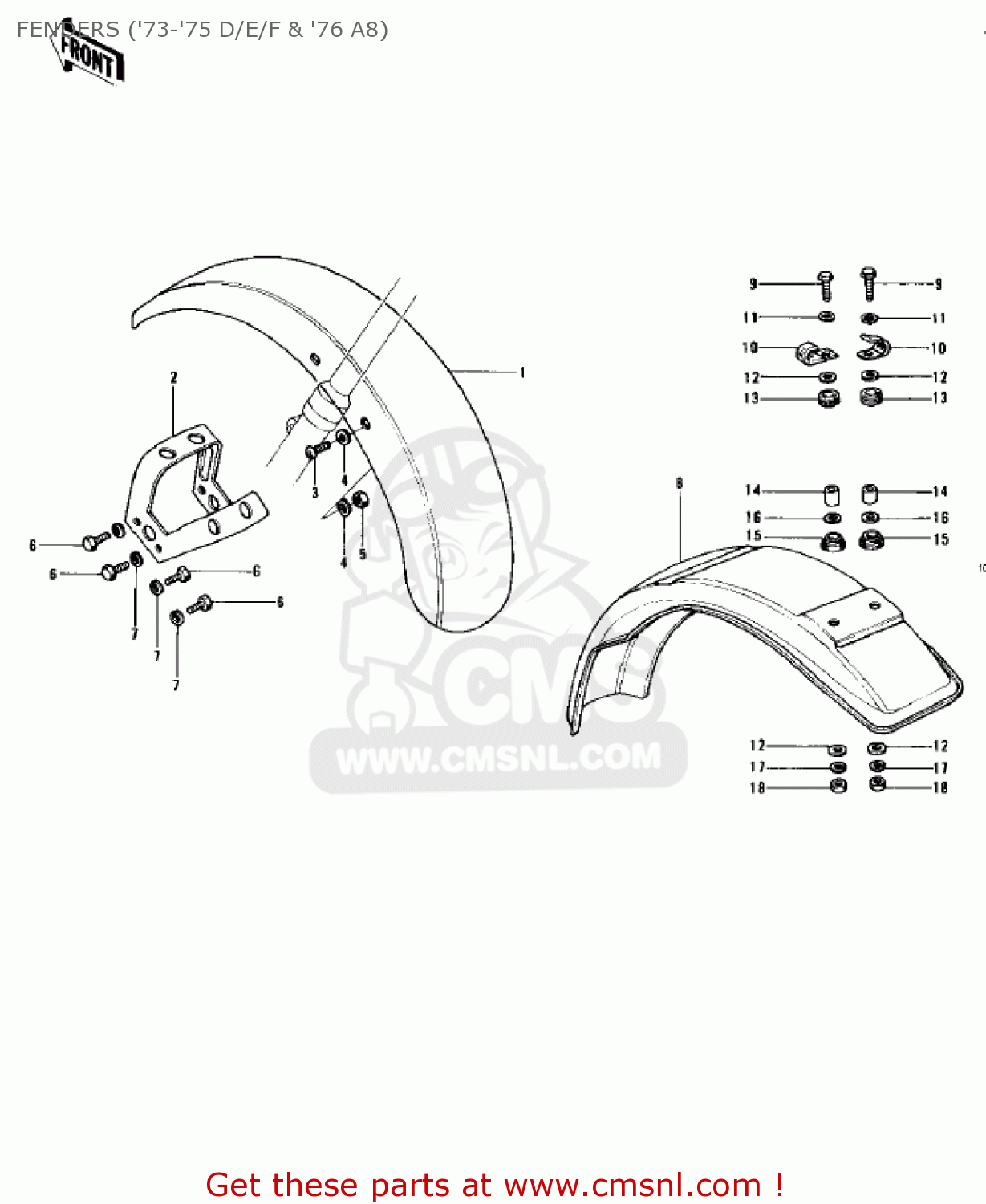

Fenders ('73-'75 d/e/f & '76 a8) diagram KH500A8 1976 CANADA
FENDERS ('73-'75 D/E/F & '76 A8) KH500A8 1976 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
35004076
ref: 1
H1-D
FENDER-FRONT
€ 233.50
1
35004085
ref: 1
H1-E/F,KH500-A8
FENDER,FRONT
€ 80.50
2
35009025
ref: 2
H1-D
BRACE-FRONT FENDER
€ 29.00
2
35009029
ref: 2
H1-E/F,KH500-A8
BRACE,FRONT FENDER
€ 47.00
3
220E0614
ref: 3
SCREW-PAN HEAD,6X14
€ 2.00
4
411B0600
ref: 4
WASHER-PLAIN,6MM
€ 0.50
5
92019008
ref: 5
NUT-LOCK,6MM
€ 3.00
6
115G0816
ref: 6
BOLT-HEX,HEAD 8X16
€ 0.50
7
461F0800
ref: 7
WASHER-SPRING,8MM
€ 0.50
8
35022076
ref: 8
FENDER,REAR
€ 25.50
9
110N0632
ref: 9
BOLT,6X32
€ 2.50
10
92037113
ref: 10
H1-E/F,KH500-A8
CLAMP
€ 4.00
11
411B0600
ref: 11
H1-E/F,KH500-A8
WASHER-PLAIN,6MM
€ 0.50
12
92022228
ref: 12
WASHER-PLAIN,7MM
€ 2.50
13
92075121
ref: 13
DAMPER,FENDER
€ 2.50
14
92027162
ref: 14
COLLAR-REAR FENDER
€ 4.50
15
92075133
ref: 15
DAMPER,RR FENDER
€ 4.00
16
92022227
ref: 16
WASHER-PLAIN,7MM
€ 3.00
17
461F0600
ref: 17
WASHER-SPRING,6MM
€ 0.50
18
311B0600
ref: 18
NUT,6MM
€ 0.50
