CHASSIS ELECTRICAL EQUIPMENT (H1
KH500A8 1976 CANADA

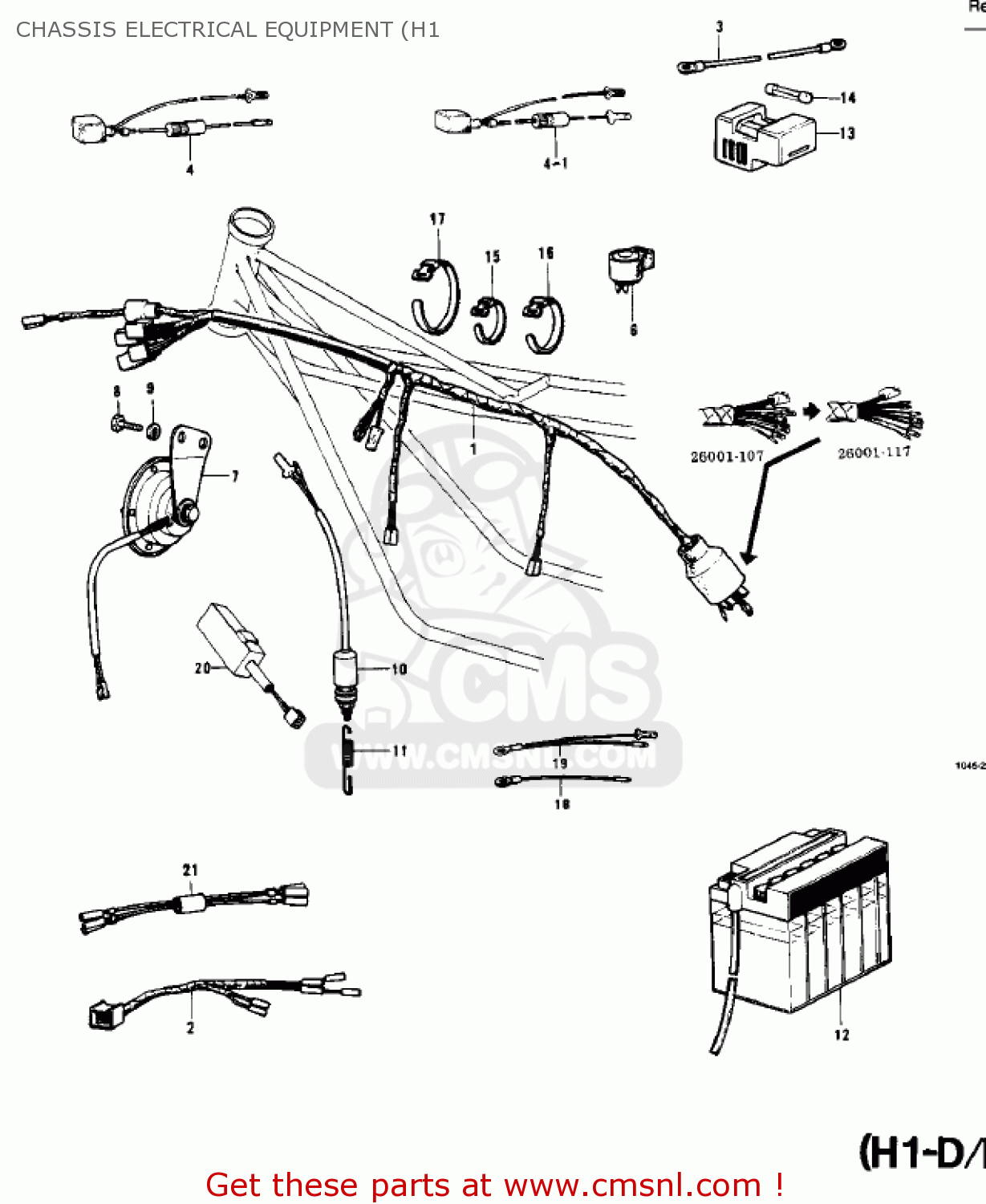

Chassis electrical equipment (h1 diagram KH500A8 1976 CANADA
CHASSIS ELECTRICAL EQUIPMENT (H1 KH500A8 1976 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
26001095
ref: 1
H1-D
WIRING HARNESS,MAIN
€ 58.00
1
26001107
ref: 1
H1-E
WIRING HARNESS,MAIN
€ 143.00
1
26001117
ref: 1
H1-E/F
WIRING HARNESS,MAIN
€ 132.00
2
26002039
ref: 2
WIRING HARNESS,REAR
€ 14.00
3
26010023
ref: 3
WIRE-LEAD,GROUND
€ 10.00
4
26004016
ref: 4
H1-D/E, USE FOR 2600
FUSE ASSY
€ 11.50
4-1
26004023
ref: 4-1
H1-E/F, USE FOR 2600
FUSE ASSY
€ 17.00
5
26006005
ref: 5
FUSE 20A
€ 3.50
6
27002011
ref: 6
RELAY-ASSY,TURN SIGNA
€ 69.50
7
27003043
ref: 7
H1-D
HORN
€ 92.00
7
27003047
ref: 7
H1-E/F
HORN
€ 47.00
8
115G0820
ref: 8
H1-D
BOLT,8X20
€ 2.00
8
115G0816
ref: 8
H1-E/F
BOLT-HEX,HEAD 8X16
€ 0.50
9
461F0800
ref: 9
WASHER-SPRING,8MM
€ 0.50
10
27010020
ref: 10
SWITCH,BRAKE LAMP
€ 29.50
10
27010025
ref: 10
H1-F
SWITCH,BRAKE LAMP
€ 18.50
11
27011013
ref: 11
H1-D/E
SPRING-BRAKE LAMP SW
€ 9.50
11
27011017
ref: 11
H1-F
SPRING,BRK LIGHT SW
€ 6.50
12
26012039
ref: 12
12N9-3B
BATTERY,YUA,12N9-3B
€ 73.50
13
26016003
ref: 13
HOLDER,SPARE FUSE
€ 8.50
14
26006005
ref: 14
FUSE 20A
€ 3.50
15
92072030
ref: 15
BAND,SHORT
€ 3.00
16
92072031
ref: 16
BAND,MIDDLE
€ 3.00
17
92072056
ref: 17
BAND,RUBBER
€ 3.00
18
26011080
ref: 18
USE FOR 26001-117
WIRE,LEAD
€ 4.00
19
26011079
ref: 19
USE FOR 26001-095/10
WIRE,LEAD
€ 6.00
20
28019001
ref: 20
H1-E/F
SWITCH,OUTAGE INDICTR
€ 46.00
21
26011067
ref: 21
H1-D
WIRE,IGNITION SW LEAD
€ 6.50
