CRANKSHAFT/PISTONS ('69-72 H1/A/
KH500A8 1976 CANADA

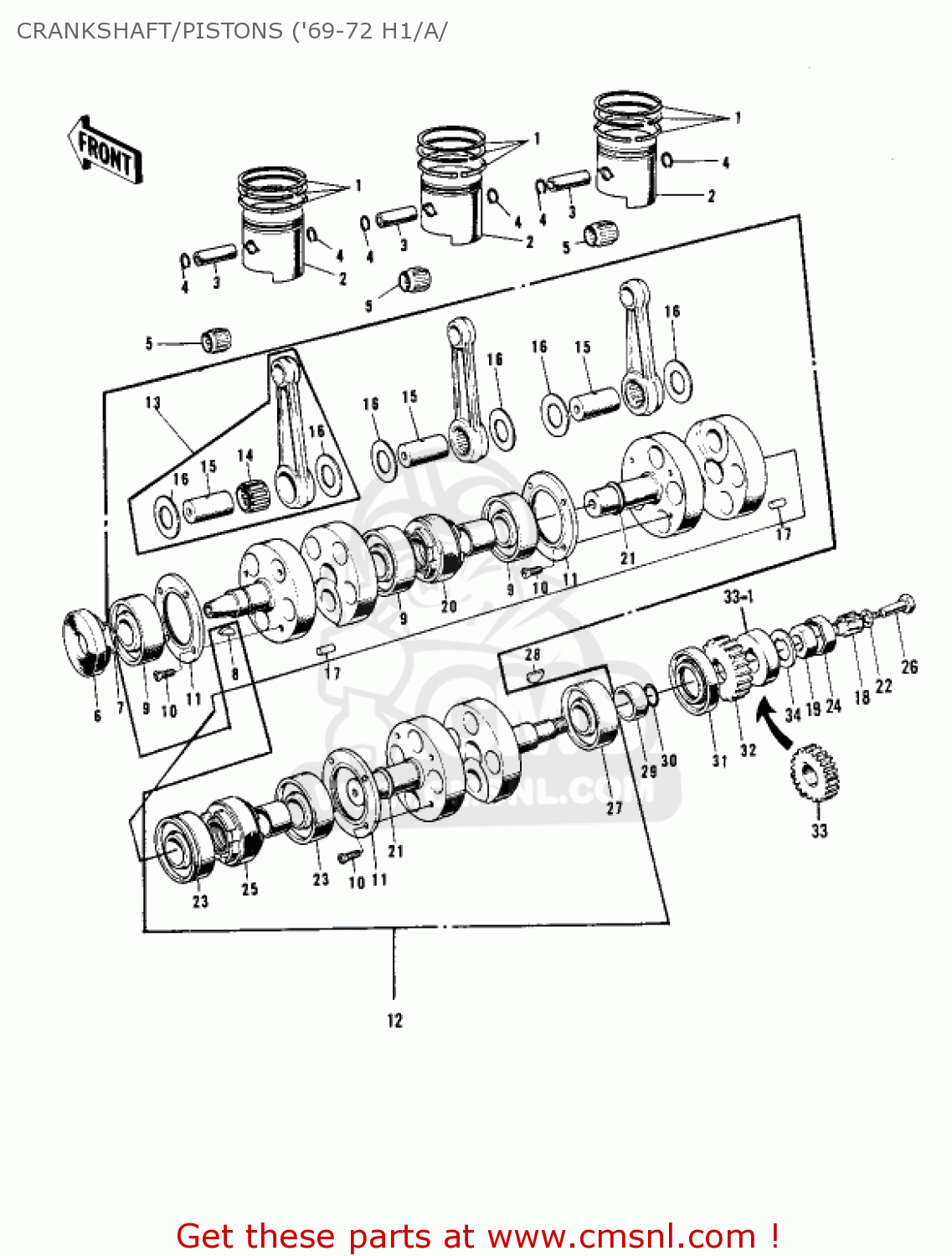

Crankshaft/pistons ('69-72 h1/a/ diagram KH500A8 1976 CANADA
CRANKSHAFT/PISTONS ('69-72 H1/A/ KH500A8 1976 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13008041
ref: 1
RING-SET-PISTON,STD
€ 74.50
1
13025044
ref: 1
RING-SET-PISTON L,O/S
€ 91.00
1
13024048
ref: 1
RING-SET-PISTON LL,O/
€ 83.50
2
13001031
ref: 2
PISTON,STD
€ 57.50
2
13029031
ref: 2
PISTON-ENGINE-L,O/S 0
€ 103.00
2
13027031
ref: 2
PISTON-ENGINE-LL,O/S
€ 98.00
3
13002010
ref: 3
PIN-PISTON
€ 22.00
4
92036004
ref: 4
CIRCLIP-PISTON PIN
€ 0.50
5
920461038
ref: 5
BEARING-NEEDLE,KBK16X
€ 17.00
6
92050051
ref: 6
TC 255210
OIL SEAL,TC255210
€ 11.50
7
92036013
ref: 7
CIRCLIP
€ 2.00
8
92038001
ref: 8
WOODRUFF KEY
€ 3.00
9
601B6205
ref: 9
BEARING-BALL,#6205C3
€ 14.00
10
92012001
ref: 10
SCREW-CNTRSNK HD,5X10
€ 1.50
11
13045010
ref: 11
OIL RECEIVER,CRANKSHF
€ 12.50
12
13031049
ref: 12
CRANK-CONROD ASSY
€ 1,060.50
13
13044034
ref: 13
CONNECTING ROD SET
€ 167.50
14
13034010
ref: 14
BEARING-NEEDLE,B10
€ 28.50
15
13035017
ref: 15
CRANK PIN
€ 28.50
16
92026024
ref: 16
SPACER,24.7X40X1.0
€ 16.00
17
610A0512
ref: 17
ROLLER,5X12
€ 3.00
18
16084010
ref: 18
PINION-OIL PUMP
€ 29.00
19
92015019
ref: 19
NUT,18MM
€ 4.00
20
92054017
ref: 20
Y3252225
OIL SEAL,Y325222.5
€ 22.50
21
92026066
ref: 21
SPACER-CRANKSHAFT
€ 1.50
22
463H0600
ref: 22
WASHER-LOCK,6MM
€ 0.50
23
92045020
ref: 23
BEARING-BALL,#6305N
€ 29.00
24
92024021
ref: 24
WASHER-LOCK
€ 8.50
25
92054018
ref: 25
Y326219
OIL SEAL,Y326219
€ 22.50
26
92001060
ref: 26
BOLT-OIL PUMP PINION
€ 7.50
27
601B6305
ref: 27
BEARING-BALL,#6305C3
€ 30.00
28
510A5200
ref: 28
KEY-WOODRUFF
€ 1.50
29
92027031
ref: 29
COLLAR-CRANK OIL SEAL
€ 17.50
30
92055018
ref: 30
RING-O,22MM
€ 2.50
31
92050052
ref: 31
TC 326210
OIL SEAL,TC326210
€ 28.00
32
13121013
ref: 32
PINION-PRIMARY
€ 52.50
33
21146001
ref: 33
H1/A/C
PINION-DISTRIBUTOR
€ 40.00
33-1
92027091
ref: 33-1
H1-B
COLLAR
€ 4.00
34
92024015
ref: 34
WASHER,CLAW,18.2X32X0
€ 2.50
