FRAME/FRAME FITTINGS ('69-'72 H1
KH500A8 1976 CANADA

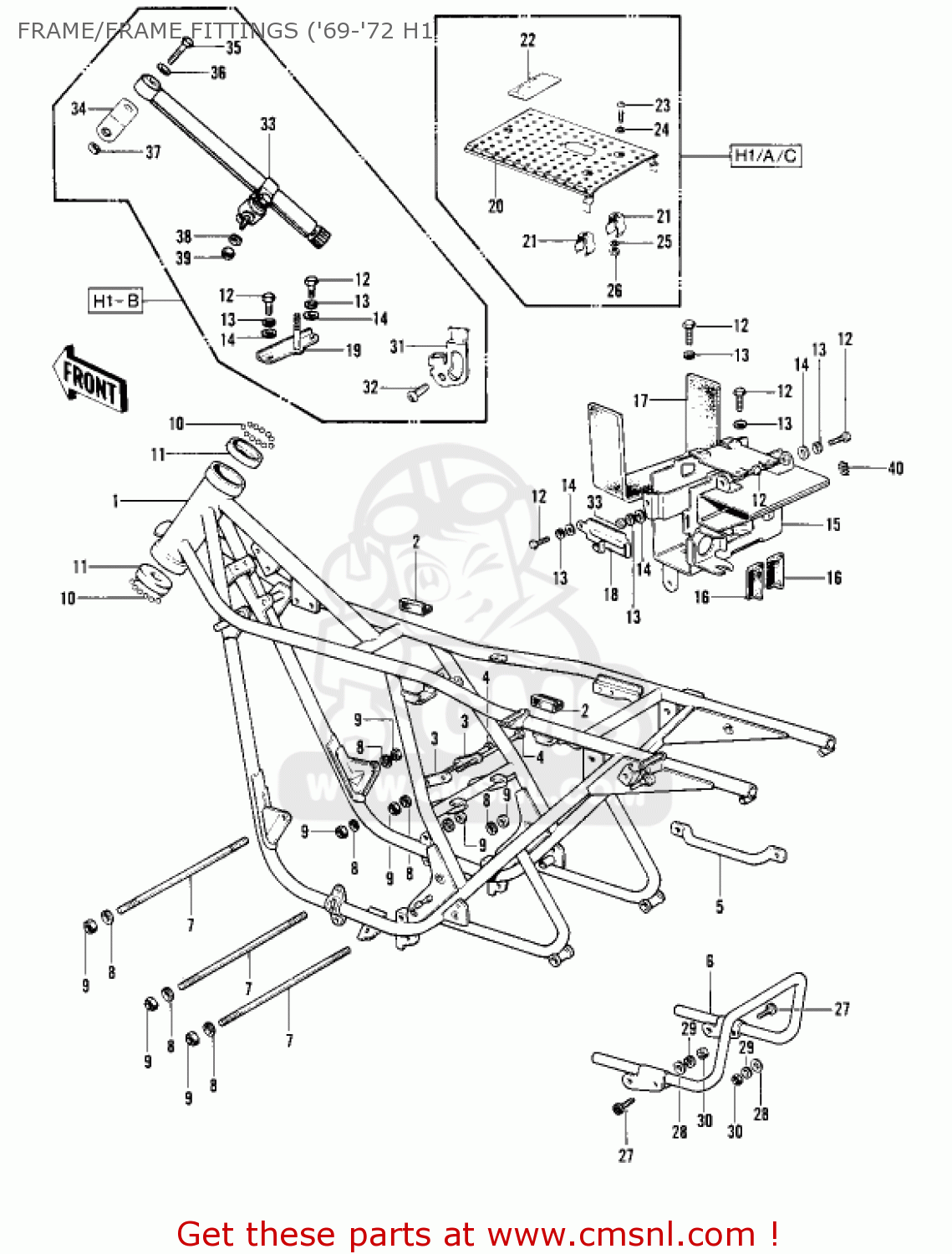

Frame/frame fittings ('69-'72 h1 diagram KH500A8 1976 CANADA
FRAME/FRAME FITTINGS ('69-'72 H1 KH500A8 1976 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
32002021
ref: 1
H1/A
FRAME
€ 156.50
1
32002052
ref: 1
H1-C
FRAME
€ 564.50
1
32002049
ref: 1
H1-B
FRAME
€ 496.00
2
31082005
ref: 2
DAMPER,RUBBER
€ 3.50
3
32030016
ref: 3
PLATE-REAR ENG HOLDER
€ 4.00
4
920011248
ref: 4
BOLT,HEX HEAD,10X125
€ 8.00
5
32109009
ref: 5
GRIP-FRAME
€ 9.50
6
35032021
ref: 6
STAY-REAR FENDER
€ 60.50
7
92091024
ref: 7
BOLT-ENG MOUNT,10X274
€ 19.50
8
461F1000
ref: 8
WASHER-SPRING,10MM
€ 0.50
9
314B1000
ref: 9
NUT,10MM
€ 0.50
10
600A0800
ref: 10
BALL-STEEL,1/4
€ 0.50
11
92048006
ref: 11
RACE-STRNG BEARIN-STE
€ 11.50
12
112G0616
ref: 12
H1/A/C
BOLT UPSET,6X16
€ 1.00
12
112G0616
ref: 12
H1-B
BOLT UPSET,6X16
€ 1.00
13
461F0600
ref: 13
H1/A/C
WASHER-SPRING,6MM
€ 0.50
13
461F0600
ref: 13
H1-B
WASHER-SPRING,6MM
€ 0.50
14
411B0600
ref: 14
H1/A/C
WASHER-PLAIN,6MM
€ 0.50
14
411B0600
ref: 14
H1-B
WASHER-PLAIN,6MM
€ 0.50
15
32099004
ref: 15
H1/A/C
BOX-BATTERY&TOOL
€ 34.00
15
32099009
ref: 15
H1-B
CASE-BATTERY&TOOL
€ 32.50
16
32103003
ref: 16
DAMPER,RECTIFIER RUBB
€ 3.50
17
32103012
ref: 17
MAT-BATTERY
€ 2.50
18
32100013
ref: 18
BAND-BATTERY
€ 2.50
19
32051005
ref: 19
H1-B
BRACEKT-FUEL TANK
€ 3.00
20
32104003
ref: 20
H1/A/C
PLATE-PUNCHED
€ 17.50
21
32095003
ref: 21
H1/A/C
BRACKET
€ 3.00
22
56020010
ref: 22
H1/A/C
EMBLEM
€ 2.00
23
220B0610
ref: 23
H1/A/C
SCREW-PAN HEAD,6X10
€ 2.00
24
411B0600
ref: 24
H1/A/C
WASHER-PLAIN,6MM
€ 0.50
25
461F0600
ref: 25
H1/A/C
WASHER-SPRING,6MM
€ 0.50
26
311B0600
ref: 26
H1/A/C
NUT,6MM
€ 0.50
27
28012007
ref: 27
H1-B/C
REFLECTOR-REFLEX,REAR
€ 15.00
28
411B0500
ref: 28
H1-B/C
WASHER-PLAIN,5MM
€ 0.50
29
461F0500
ref: 29
H1-B/C
WASHER-SPRING,5MM
€ 0.50
30
311B0500
ref: 30
H1-B/C
NUT-HEX
€ 0.50
31
32064008
ref: 31
H1-B
BRACKET-TURN SIG RELY
€ 8.00
32
112B0614
ref: 32
H1-B
BOLT-UPSET 6X14
€ 2.50
33
46117006
ref: 33
H1-B
SHOCKABSORBER
€ 335.00
34
32056012
ref: 34
H1-B
BRACKET-STEERING DAMP
€ 3.00
35
920011581
ref: 35
H1-B
BOLT,FLANGED,8X60
€ 3.50
36
411B0800
ref: 36
H1-B
WASHER-PLAIN,8MM
€ 0.50
37
920151124
ref: 37
H1-B
NUT,LOCK,8MM
€ 3.50
38
461F0800
ref: 38
H1-B
WASHER-SPRING,8MM
€ 0.50
39
311B0800
ref: 39
H1-B
NUT,8MM
€ 0.50
40
464H0600
ref: 40
H1-B
WASHER-LOCK,6MM
€ 0.50
