FRONT MASTER CYLINDER (H1-B)

KH500A8 1976 CANADA

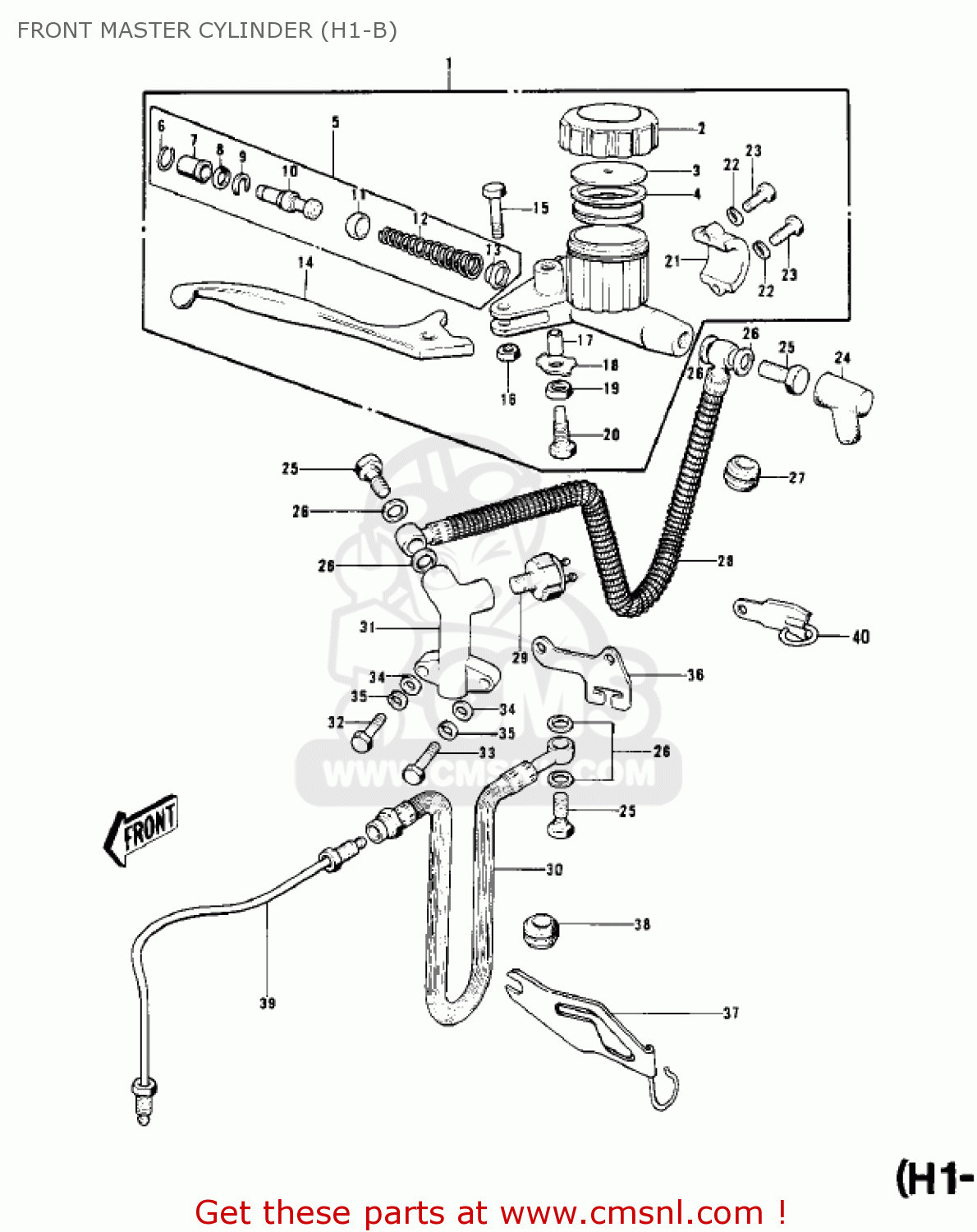

Front master cylinder (h1-b) diagram KH500A8 1976 CANADA

FRONT MASTER CYLINDER (H1-B) KH500A8 1976 CANADA

FRONT MASTER CYLINDER (H1-B) KH500A8 1976 CANADA

prices are in EUR

ref

part #

description

quantity

1

43015032
ref: 1

CYLINDER ASSY, MASTER

€ 122.50

2

43026003
ref: 2

CAP,OIL CUP

€ 20.50

3

43027001
ref: 3

PLATE-MASTER CYLINDER

€ 4.50

4

43028001
ref: 4

DIAPHRAGM

€ 27.50

5

43073001
ref: 5

KIT-KHI PARTS

€ 92.00

6

43025001
ref: 6

STOPPER-BOOTS

€ 3.00

7

43024001
ref: 7

BOOTS

€ 4.50

8

481J1800
ref: 8

CIRCLIP-TYPE-C,18MM

€ 2.50

9

43022001
ref: 9

STOPPER-PISTON

€ 2.50

10

43072001
ref: 10

PISTON ASSY-MSTR CYL

€ 17.00

11

43019001
ref: 11

CUP-BRAKE

€ 8.50

12

43018001
ref: 12

SPRING ASSY-RETURN

€ 12.50

13

43017001
ref: 13

VALVE ASSY-CHECK

€ 9.00

14

43029003
ref: 14

LEVER-GRIP

€ 58.50

15

43033001
ref: 15

BOLT-LEVER FITTING

€ 6.00

16

312N0600
ref: 16

NUT-HEX,6MM

€ 2.50

17

43074001
ref: 17

TUBE

€ 2.50

18

43031001
ref: 18

WASHER,LOCK,8MM

€ 3.50

19

314N0800
ref: 19

NUT,8MM

€ 0.50

20

43030002
ref: 20

BOLT-LEVER ADJUSTING

€ 3.50

21

43034001
ref: 21

HOLDER-MASTER CYL

€ 29.50

22

411B0600
ref: 22

WASHER-PLAIN,6MM

€ 0.50

23

110N0625
ref: 23

BOLT-HEX HEAD,6X25

€ 3.50

24

490061041
ref: 24

BOOT,DUST

€ 7.50

25

920021888
ref: 25

BOLT,OIL,L=23

€ 3.50

26

43067001
ref: 26

WASHER,10.5X15X1.5

€ 1.50

27

43064006
ref: 27

GROMMET,BRAKE HOSE

€ 2.50

28

43059001
ref: 28

HOSE-FRONT BRAKE

€ 54.00

29

43065001
ref: 29

SWITCH,BRAKE,FR

€ 37.50

30

430591262
ref: 30

HOSE-BRAKE,L=350

€ 85.50

31

43061001
ref: 31

JOINT-THREE WAY

€ 49.50

32

112N0620
ref: 32

BOLT-UPSET

€ 1.00

33

110N0632
ref: 33

BOLT,6X32

€ 2.50

34

411B0600
ref: 34

WASHER-PLAIN,6MM

€ 0.50

35

461F0600
ref: 35

WASHER-SPRING,6MM

€ 0.50

36

43062001
ref: 36

GUIDE-HOSE

€ 2.00

37

43063001
ref: 37

BRACKET,BRAKE HOSE

€ 36.50

38

43064001
ref: 38

DAMPER RUBBER-CAL HSE

€ 2.50

39

43060001
ref: 39

PIPE-BRAKE

€ 23.00

40

43063002
ref: 40

BRACKET-BRAKE HOSE

€ 10.50
