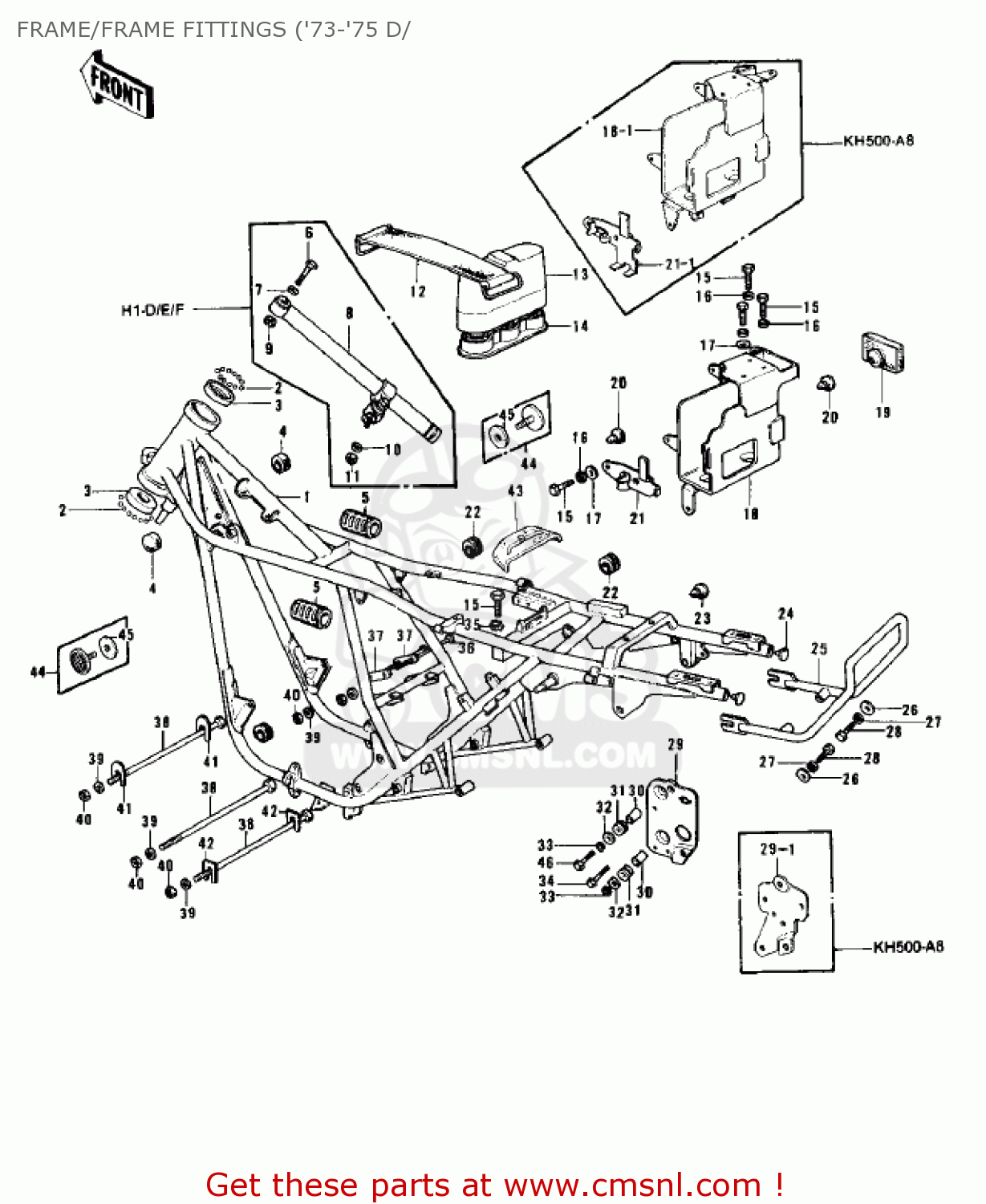

FRAME/FRAME FITTINGS ('73-'75 D/

ref

part #

description

quantity

1

32002062
ref: 1
H1-D

FRAME

€ 483.00

1

32002085
ref: 1
H1-E

FRAME

€ 483.00

1

32002114
ref: 1
H1-F

FRAME

€ 483.00

1

32002127
ref: 1
H1-D/E/F

FRAME

€ 483.00

1

32002131
ref: 1
KH500-A8

FRAME

€ 1,109.50

2

600A0800
ref: 2

BALL-STEEL,1/4

€ 0.50

3

92048006
ref: 3

RACE-STRNG BEARIN-STE

€ 11.50

4

92075101
ref: 4

DAMPER RUBBER-FL TANK

€ 4.00

5

92075084
ref: 5
H1-D/E/F

DAMPER,FUEL TANK

€ 6.50

6

110B0860
ref: 6
H1-D/E/F

BOLT-HEX HEAD,8X60

€ 3.50

7

411B0800
ref: 7
H1-D/E/F

WASHER-PLAIN,8MM

€ 0.50

8

46117006
ref: 8
H1-D/E/F

SHOCKABSORBER

€ 335.00

9

920151124
ref: 9
H1-D/E/F

NUT,LOCK,8MM

€ 3.50

10

461F0800
ref: 10
H1-D/E/F

WASHER-SPRING,8MM

€ 0.50

11

311B0800
ref: 11
H1-D/E/F

NUT,8MM

€ 0.50

12

32100015
ref: 12

BAND,SPARK PLUG COVER

€ 10.00

13

32132003
ref: 13

COVER-SPARK PLUG

€ 3.00

14

32132002
ref: 14

HOLDER-SPARK PLUG COV

€ 2.00

15

112G0616
ref: 15
H1-D/E/F

BOLT UPSET,6X16

€ 1.00

15

112G0612
ref: 15
KH500-A8

BOLT-UPSET

€ 2.50

16

461F0600
ref: 16

WASHER-SPRING,6MM

€ 0.50

17

411B0600
ref: 17

WASHER-PLAIN,6MM

€ 0.50

18

32097026
ref: 18
H1-D

CASE,BATTERY

€ 34.50

18

32097033
ref: 18
H1-E/F

CASE,BATTERY

€ 27.00

18-1

32097038
ref: 18-1
KH500-A8

CASE,BATTERY

€ 45.50

19

92075163
ref: 19

DAMPER,BATTERY

€ 5.50

20

92075078
ref: 20

DAMPER,RUBBER

€ 2.50

21

32100016
ref: 21
H1-D/E/F

BAND,BATTERY

€ 9.00

21-1

32100018
ref: 21-1
KH500-A8

BAND,BATTERY CASE

€ 4.50

22

92071056
ref: 22

GROMMET

€ 2.50

23

92071081
ref: 23
H1-E/F

GROMMET

€ 3.50

24

32112006
ref: 24

PLUG

€ 1.00

25

35032023
ref: 25

STAY,REAR FENDER

€ 59.00

26

411B0800
ref: 26

WASHER-PLAIN,8MM

€ 0.50

27

461F0800
ref: 27

WASHER-SPRING,8MM

€ 0.50

28

115G0820
ref: 28

BOLT,8X20

€ 2.00

29

26002036
ref: 29
H1-D

HARNESS&BKT,WIRING

€ 10.00

29

26002044
ref: 29
H1-E/F

BKT & HARNESS,WIRING

€ 12.00

29-1

32129007
ref: 29-1
KH500-A8

BRACKET,ELECT BASE

€ 7.50

30

92027156
ref: 30

COLLAR-BATTERY CASE

€ 3.00

31

92075167
ref: 31

DAMPER

€ 3.50

32

92022125
ref: 32

WASHER,6.5X20X1.6

€ 1.00

33

461F0600
ref: 33

WASHER-SPRING,6MM

€ 0.50

34

112G0630
ref: 34

BOLT-UPSET

€ 1.00

35

464H0600
ref: 35

WASHER-LOCK,6MM

€ 0.50

36

920011248
ref: 36

BOLT,HEX HEAD,10X125

€ 8.00

37

32030016
ref: 37

PLATE-REAR ENG HOLDER

€ 4.00

38

92091024
ref: 38

BOLT-ENG MOUNT,10X274

€ 19.50

39

410B1000
ref: 39

WASHER-PLAIN-SMALL,10

€ 0.50

40

920151429
ref: 40

NUT,10MM

€ 4.50

41

92025048
ref: 41

SHIM-ENG FIT RR,0.5MM

€ 0.50

41

92025049
ref: 41

SHIM-ENG FIT RR,0.8MM

€ 0.50

41

92025050
ref: 41

SHIM-ENG FIT RR,1.0MM

€ 0.50

41

92025051
ref: 41

SHIM-ENG FIT RR,1.6MM

€ 0.50

41

92025052
ref: 41

SHIM-ENG FIT RR,2.0MM

€ 0.50

42

92025053
ref: 42

SHIM,T=0.5

€ 3.00

42

92025054
ref: 42

SHIM-ENG FIT FR,0.8MM

€ 2.50

42

92025055
ref: 42

SHIM-ENG FIT FR,1.0MM

€ 1.50

42

92025056
ref: 42

SHIM-ENG FIT FR,1.6MM

€ 1.00

42

92025057
ref: 42

SHIM,T=2.0

€ 2.50

42

92025058
ref: 42

SHIM,T=2.3

€ 2.50

43

92075278
ref: 43
KH500-A8

DAMPER RUBBER,FUEL TK

€ 2.00

44

28001026
ref: 44
KH500-A8

REFLECTOR,REFLEX

€ 12.50

45

92094011
ref: 45
KH500-A8

DAMPER,REFLECTOR

€ 3.00

46

112G0630
ref: 46
H1-D/E/F

BOLT-UPSET

€ 1.00

46

112G0625
ref: 46
KH500-A8

BOLT-UPSET,6X25

€ 4.00
