AIR CLEANER (H1-D/E/F)

KH500A8 1976 CANADA

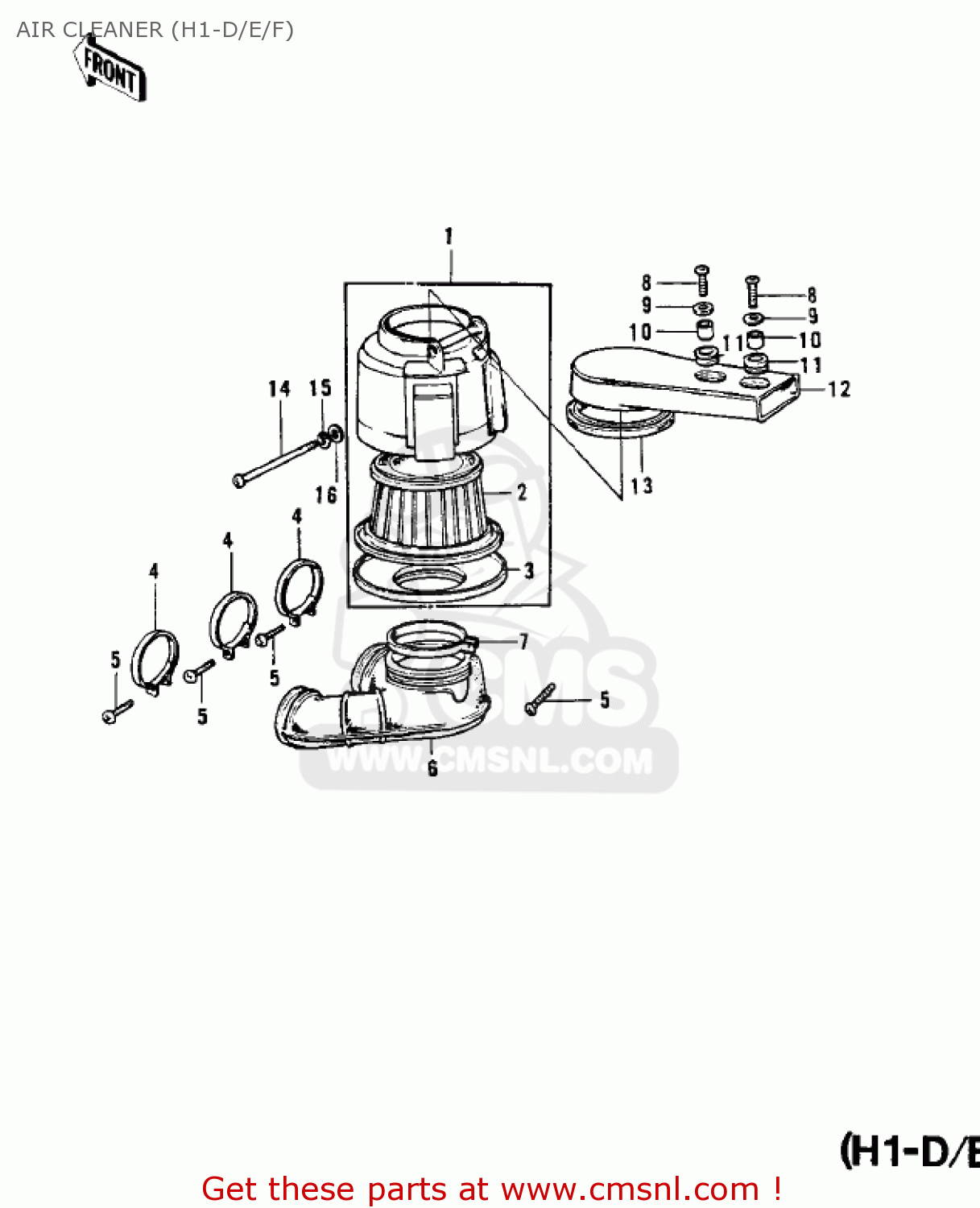

Air cleaner (h1-d/e/f) diagram KH500A8 1976 CANADA

AIR CLEANER (H1-D/E/F) KH500A8 1976 CANADA

AIR CLEANER (H1-D/E/F) KH500A8 1976 CANADA

prices are in EUR

ref

part #

description

quantity

1

1101006510
ref: 1
H1-D/E

AIR CLEANER ASY,BLACK

€ 39.00

1

1101009121
ref: 1
H1-F

AIR CLEANER ASSY

€ 39.00

2

11013019
ref: 2

ELEMENT-AIR CLEANER

€ 27.50

3

11012011
ref: 3

CAP-AIR CLEANER

€ 12.00

4

920371326
ref: 4

CLAMP

€ 5.50

5

220B0635
ref: 5
H1-D

SCREW-PAN HEAD,6X35

€ 1.00

5

220C0635
ref: 5
H1-E/F

SCREW-PAN-CROS,6X35,B

€ 3.50

6

11015033
ref: 6

DUCT,AIR INLET

€ 189.00

7

92037128
ref: 7

CLAMP,AIR CLEANER

€ 4.00

8

220B0645
ref: 8

SCREW-PAN HEAD,6X45

€ 2.50

9

92022125
ref: 9

WASHER,6.5X20X1.6

€ 1.00

10

92027149
ref: 10

COLLAR-SILENSER

€ 4.00

11

92075118
ref: 11

DAMPER RUBBER

€ 1.00

12

11016006
ref: 12

SILENCER

€ 5.50

13

11017009
ref: 13

GASKET,SILENCER (NAS)

€ 12.50

14

220B06110
ref: 14

SCREW-PAN HEAD,6X110

€ 2.50

15

461F0600
ref: 15

WASHER-SPRING,6MM

€ 0.50

16

411B0600
ref: 16

WASHER-PLAIN,6MM

€ 0.50
