Genuine KE Kawasaki Parts delivered quickly!


TURN SIGNALS ('82-'83 KE175-D4/D

KE175-D3 KE175 1981 USA CANADA

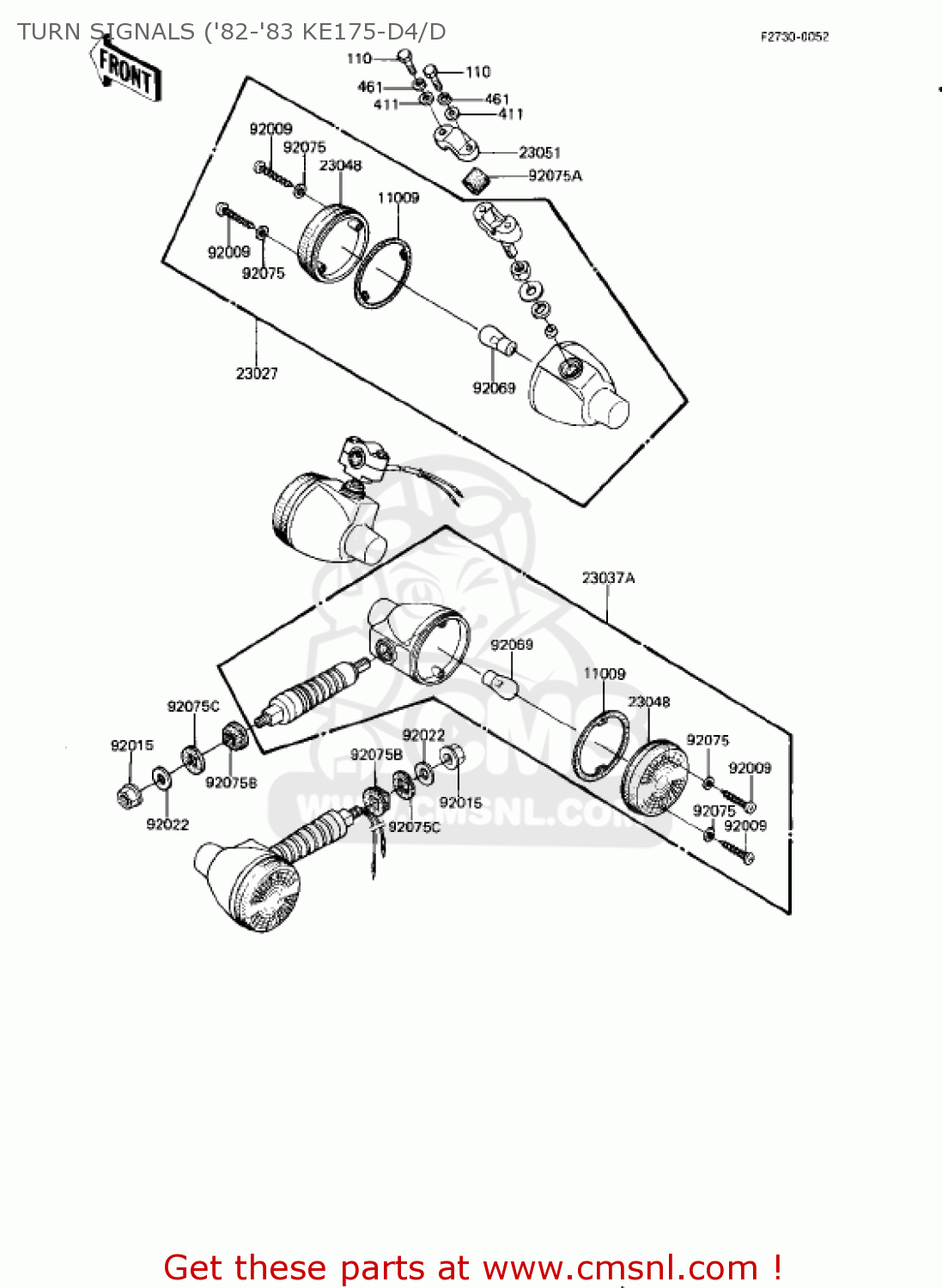

Turn signals ('82-'83 ke175-d4/d diagram KE175-D3 KE175 1981 USA CANADA

TURN SIGNALS ('82-'83 KE175-D4/D KE175-D3 KE175 1981 USA CANADA
TURN SIGNALS ('82-'83 KE175-D4/D KE175-D3 KE175 1981 USA CANADA
TURN SIGNALS ('82-'83 KE175-D4/D KE175-D3 KE175 1981 USA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091128
ref: 11009
GASKET,TURN SIGNAL LA (NAS)
110091128
€ 3.00
23037
230371039
ref: 23037
LAMP-ASSY-SIGNAL,FR
230371039
€ 55.00
23037A
230371040
ref: 23037A
REAR SIGNAL LAMP ASSEMBLY
230371040
€ 58.50
23048
230481076
ref: 23048
LENS-SIGNAL LAMP
230481076
€ 10.50
23051
230511018
ref: 23051
BRACKET-SIGNAL LAMP
230511018
€ 6.00
92009
920091056
ref: 92009
SCREW,TAPPING
920091056
€ 2.50
92015
920151428
ref: 92015
NUT,FLANGED,10MM
920151428
€ 3.00
92022
920221071
ref: 92022
WASHER,10.5X32X1.6
920221071
€ 2.50
92069
92069056
ref: 92069
BULB,6V 21CP
92069056
€ 4.50
92075
23058002
ref: 92075
WASHER,PLAIN,4MM
23058002
€ 2.00
92075A
23066003
ref: 92075A
DAMPER
23066003
€ 3.50
92075B
920751079
ref: 92075B
DAMPER,RUBBER
€ 2.50
92075C
920751080
ref: 92075C
DAMPER,RUBBER
920751080
€ 2.50
110
110B0530A
ref: 110
BOLT,HEX HEAD,5X30
€ 2.50
411
411B0500
ref: 411
WASHER-PLAIN,5MM
411B0500
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
