CLUTCH ('82-'83 KE175-D4/D5)
KE175-D3 KE175 1981 USA CANADA

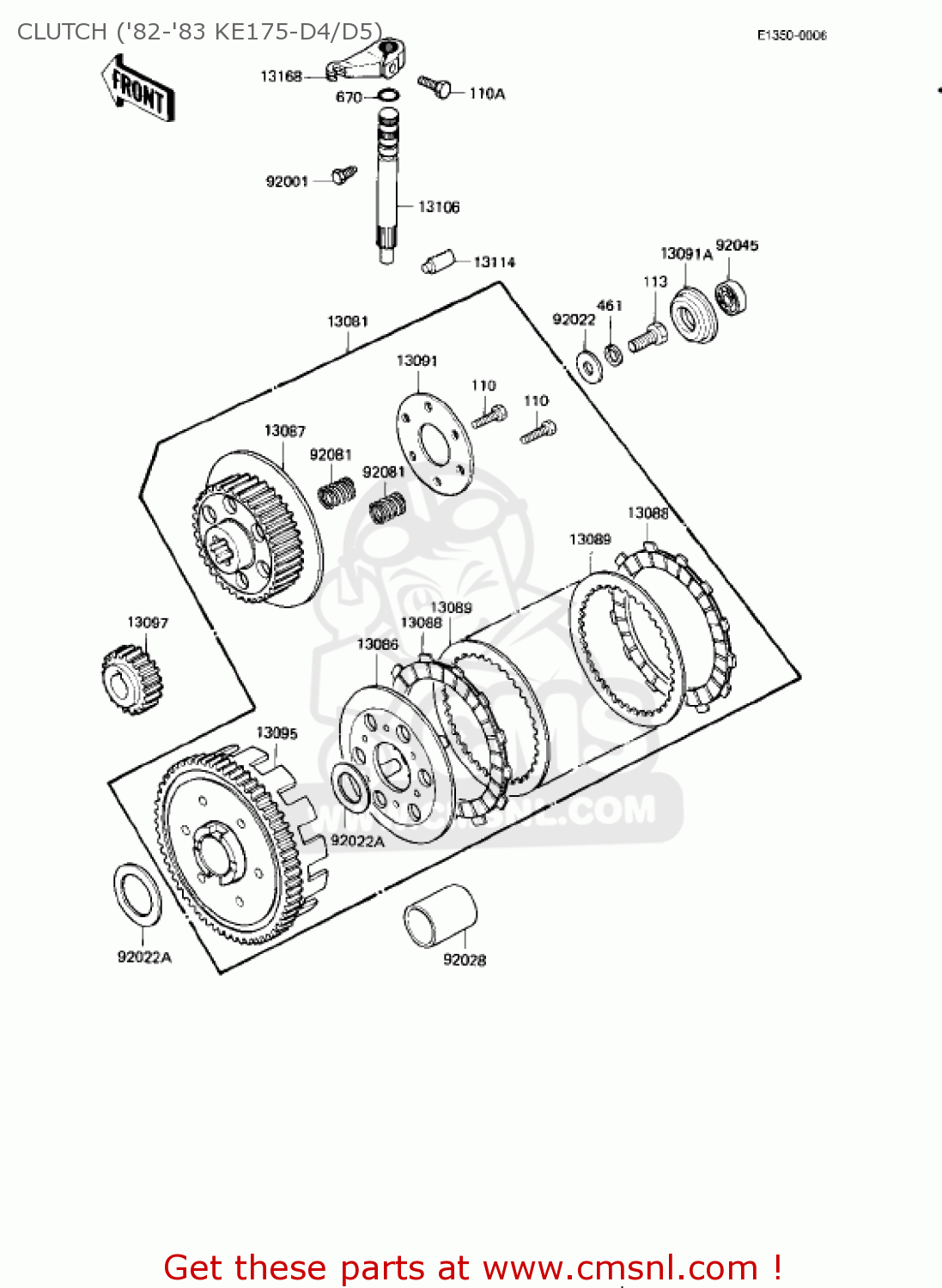

Clutch ('82-'83 ke175-d4/d5) diagram KE175-D3 KE175 1981 USA CANADA
CLUTCH ('82-'83 KE175-D4/D5) KE175-D3 KE175 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13081
130811050
ref: 13081
CLUTCH-ASSY
€ 253.00
13086
13086017
ref: 13086
WHEEL-CLUTCH
€ 25.00
13087
13087041
ref: 13087
HUB-CLUTCH
€ 37.50
13088
130881015
ref: 13088
PLATE-FRICTION (NAS)
€ 11.50
13089
13089003
ref: 13089
PLATE-CLUTCH,STEEL (NAS)
€ 7.50
13091
130911017
ref: 13091
HOLDER,CLUTCH SPRING
€ 7.00
13091A
130911136
ref: 13091A
HOLDER,CLUTCH PUSHER
€ 9.00
13095
130951024
ref: 13095
HOUSING-COMP-CLUTCH
€ 277.00
13097
130971006
ref: 13097
GEAR-PRIMARY SPUR,24T
€ 94.50
13106
131061002
ref: 13106
SHAFT-CLUTCH RELEASE
€ 28.00
13114
131141009
ref: 13114
PUSHER-CLUTCH
€ 13.00
13168
131681023
ref: 13168
LEVER,CLUTCH RELEASE
€ 22.00
92001
92003130
ref: 92001
BOLT,CLUTCH RELEASE
€ 3.50
92022
920221088
ref: 92022
WASHER,10.2X28X2
€ 3.00
92022A
92022168
ref: 92022A
WASHER-CLUTCH THRUST
€ 6.50
92028
92028014
ref: 92028
BUSH-CLUTCH
€ 27.50
92045
92045026
ref: 92045
BEARING,BALL,#627
€ 19.50
92081
920811174
ref: 92081
SPRING,CLUTCH
€ 2.50
110
110G0520
ref: 110
BOLT
€ 2.50
110A
112G0618
ref: 110A
BOLT-UPSET
€ 0.50
113
113G1022
ref: 113
BOLT,HEX HEAD,10X22
€ 2.50
461
461F1000
ref: 461
WASHER-SPRING,10MM
€ 0.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
