Genuine KE Kawasaki Parts delivered quickly!


BRAKE PEDAL/TORQUE LINK ('82-'83

KE175-D3 KE175 1981 USA CANADA

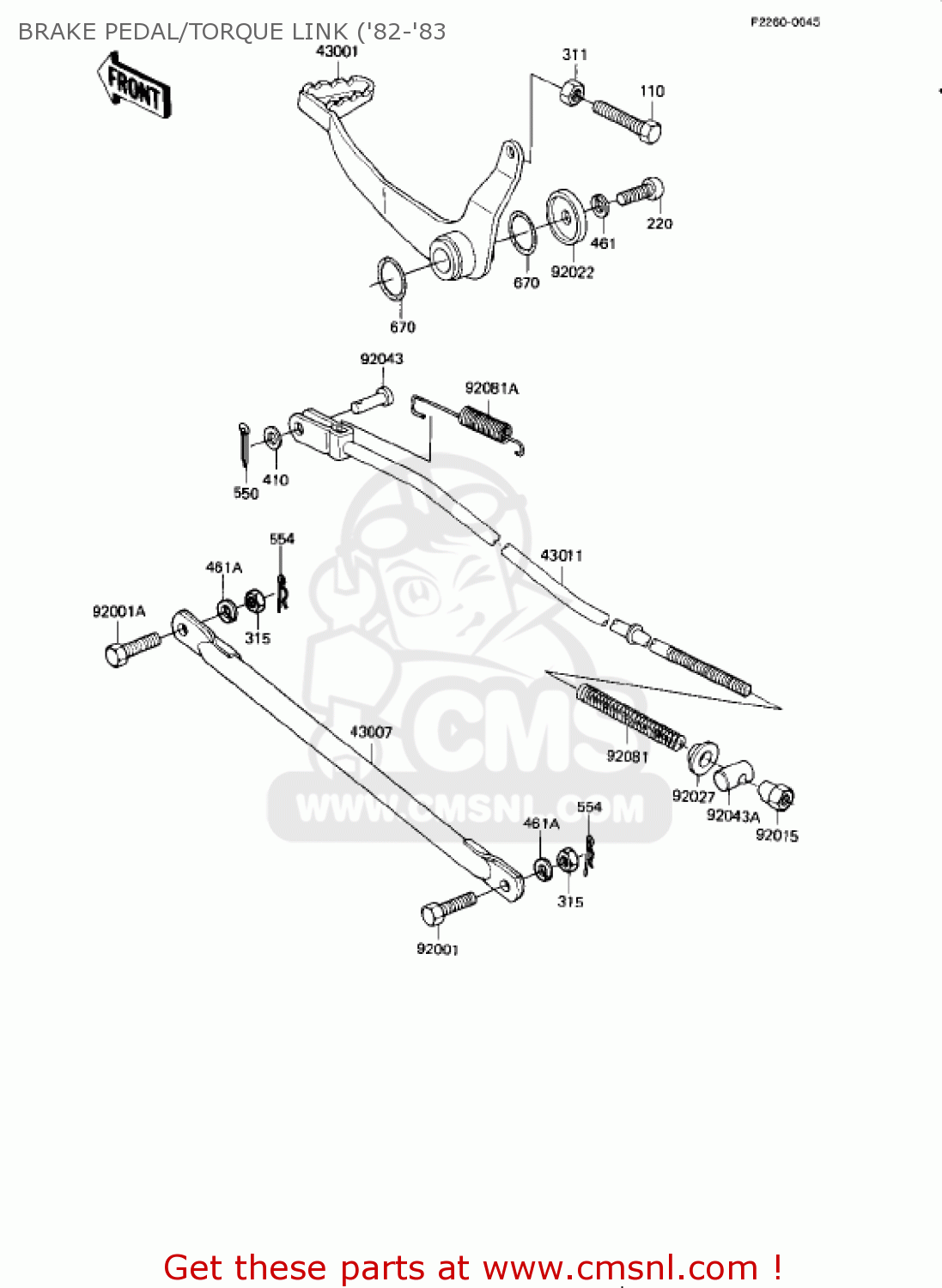

Brake pedal/torque link ('82-'83 diagram KE175-D3 KE175 1981 USA CANADA

BRAKE PEDAL/TORQUE LINK ('82-'83 KE175-D3 KE175 1981 USA CANADA
BRAKE PEDAL/TORQUE LINK ('82-'83 KE175-D3 KE175 1981 USA CANADA
BRAKE PEDAL/TORQUE LINK ('82-'83 KE175-D3 KE175 1981 USA CANADA
prices are in EUR
ref
part #
description
quantity
43001
430011020
ref: 43001
PEDAL,BRAKE
€ 31.50
43007
43007048
ref: 43007
ROD-TORQUE,RR
€ 15.50
43011
430111009
ref: 43011
ROD-BRAKE
€ 13.50
92001
92003003
ref: 92001
BOLT-HEX HEAD,10X32
92003003
€ 4.00
92001A
92003017
ref: 92001A
BOLT-TRQ LINK 10X25
92003017
€ 3.50
92015
92015042
ref: 92015
NUT-BRAKE ROD ADJUST
92015042
€ 4.00
92022
92022284
ref: 92022
WASHER,PLAIN,6MM
€ 2.50
92027
92027122
ref: 92027
COLLAR,L=4.7
92027122
€ 5.50
92043
92043064
ref: 92043
PIN-BRAKE ROD FITTING
92043064
€ 4.50
92043A
92043065
ref: 92043A
PIN-BRAKE ROD
92043065
€ 3.50
92081
43012001
ref: 92081
SPRING,BRAKE ROD
43012001
€ 3.00
92081A
920811071
ref: 92081A
SPRING,BRAKE PEDAL
€ 4.50
110
112G0620
ref: 110
BOLT 6X20
112G0620
€ 1.00
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
315
315B1000
ref: 315
NUT,10MM
315B1000
€ 0.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
461A
461F1000
ref: 461A
WASHER-SPRING,10MM
461F1000
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
554
554A0800
ref: 554
PIN-SNAP,8MM
554A0800
€ 1.00
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
