OWNER TOOLS
KE175-D3 KE175 1981 USA CANADA

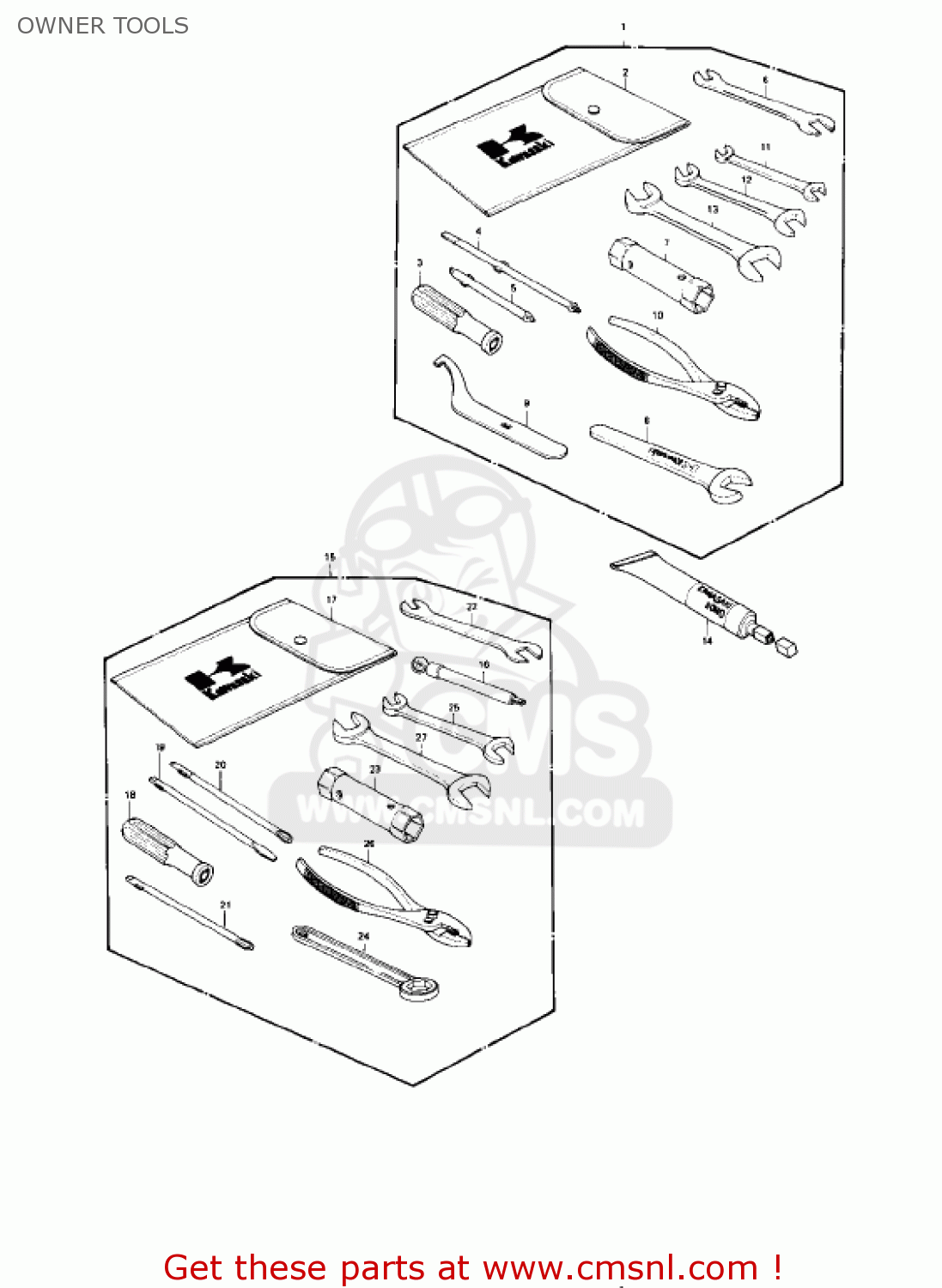

Owner tools diagram KE175-D3 KE175 1981 USA CANADA
OWNER TOOLS KE175-D3 KE175 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
560071023
ref: 1
TOOL KIT
€ 67.50
2
56008008
ref: 2
BAG,TOOL
€ 16.50
3
921061001
ref: 3
GRIP,SCREW DRIVER
€ 7.00
4
921071052
ref: 4
TOOL-DRIVER
€ 6.50
5
92107005
ref: 5
SCREW DRIVER-#3 PHLIP
€ 7.00
6
92108011
ref: 6
TIGHTENER,SPOKE
€ 23.00
7
92110012
ref: 7
TOOL-WRENCH,BOX,21MM
€ 13.00
8
921101004
ref: 8
WRENCH, OPEN END,19MM
€ 9.00
9
921101014
ref: 9
WRENCH,HOOK
€ 6.00
10
92112003
ref: 10
PLIERS,150MM
€ 18.00
11
92126001
ref: 11
TOOL-WRENCH,OPEN END,
€ 9.00
12
92126002
ref: 12
WRENCH-OPEN END,12X13
€ 7.50
13
921101153
ref: 13
TOOL-WRENCH,OPEN END,
€ 12.50
14
92104002
ref: 14
OPTION
LIQUID GASKET
€ 69.50
15
560071072
ref: 15
F/NO. 002974~
TOOL KIT
€ 109.50
16
520051031
ref: 16
F/NO. 002974~
GAUGE,AIR,3.5KG/CM2
€ 40.50
17
56008008
ref: 17
F/NO. 002974~
BAG,TOOL
€ 16.50
18
921061001
ref: 18
F/NO. 002974~
GRIP,SCREW DRIVER
€ 7.00
19
92107007
ref: 19
F/NO. 002974~
SCREW DRIVER-#3 SLOT
€ 6.50
20
921071052
ref: 20
F/NO. 002974~
TOOL-DRIVER
€ 6.50
21
92107008
ref: 21
F/NO. 002974~
SCREW DRIVER-#3 PHILL
€ 7.00
22
92108011
ref: 22
F/NO. 002974~
TIGHTENER,SPOKE
€ 23.00
23
92110012
ref: 23
F/NO. 002974~
TOOL-WRENCH,BOX,21MM
€ 13.00
24
921101148
ref: 24
F/NO. 002974~
TOOL-WRENCH,BOX END,2
€ 12.50
25
921101038
ref: 25
F/NO. 002974~
WRENCH,OPEN END,10X12
€ 5.50
26
92112003
ref: 26
F/NO. 002974~
PLIERS,150MM
€ 18.00
27
921101153
ref: 27
F/NO. 002974~
TOOL-WRENCH,OPEN END,
€ 12.50
