GEAR CHANGE MECHANISM ('82-'83 K

KE175-D3 KE175 1981 USA CANADA

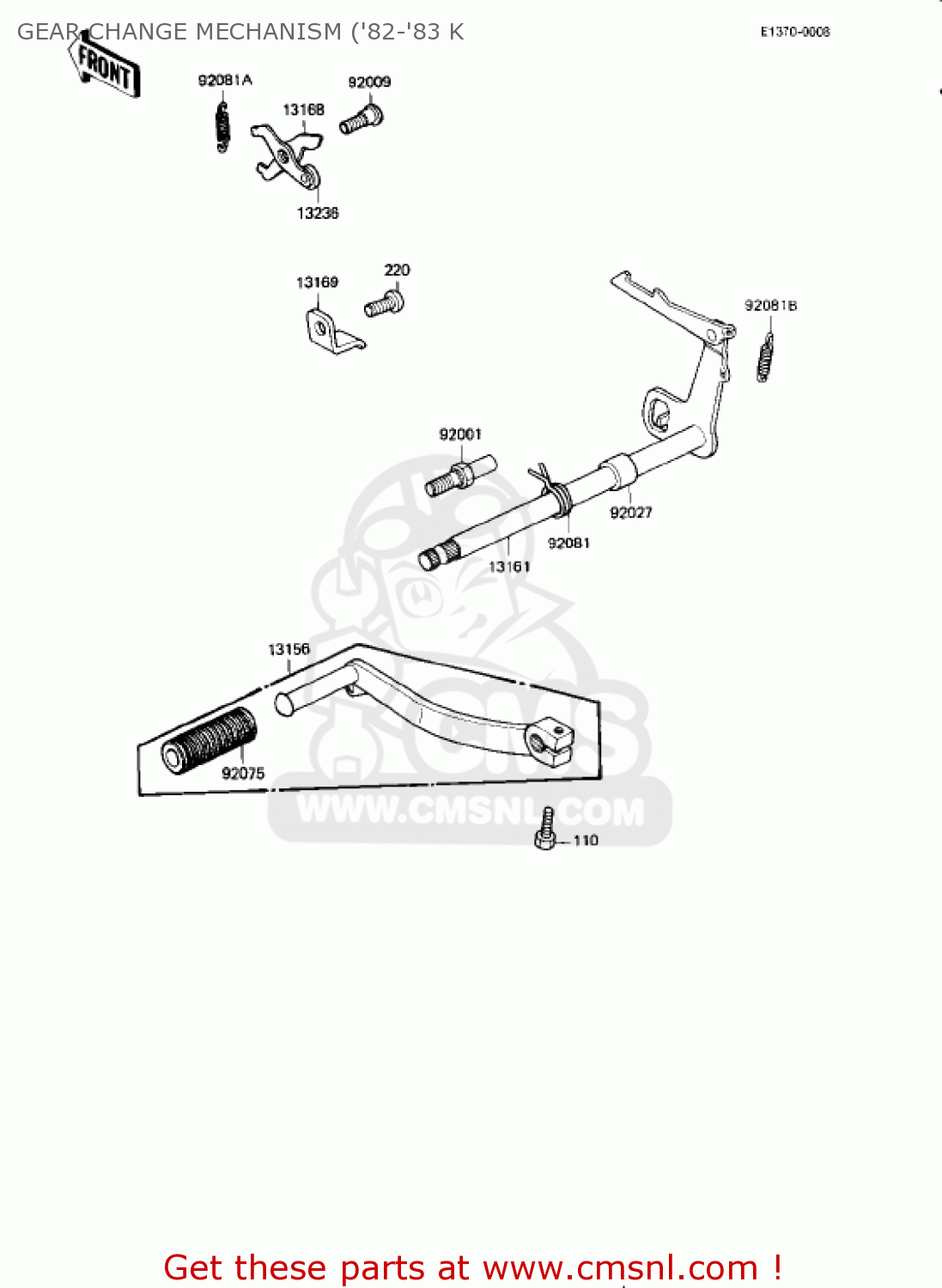

Gear change mechanism ('82-'83 k diagram KE175-D3 KE175 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

13156

132421273
ref: 13156

LEVER-ASSY-CHANGE,PED

€ 25.50

13161

131611017
ref: 13161

LEVER-COMP-CHANGE SHA

€ 40.00

13168

131681058
ref: 13168

LEVER,GEAR SET

€ 3.50

13169

131691253
ref: 13169

PLATE,GEAR CHANGE

€ 2.50

13236

132361004
ref: 13236

LEVER-COMP,NEUTRAL

€ 4.00

92001

920011401
ref: 92001

BOLT,RETURN SPRING

€ 3.00

92009

92011023
ref: 92009

SCREW-PAN HEAD

€ 2.50

92027

92027189
ref: 92027

COLLAR,13X18X11.5

€ 6.00

92075

13157004
ref: 92075

RUBBER-CHANGE PEDAL

€ 4.00

92081

920811129
ref: 92081

SPRING,TENTION

€ 6.50

92081A

920811237
ref: 92081A

SPRING,CHANGE LEVER

€ 3.00

92081B

92081156
ref: 92081B

SPRING,CHANGE LEVER

€ 4.00

110

112G0620
ref: 110

BOLT 6X20

€ 1.00

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00
