FRAME/FRAME FITTINGS
KE175-D3 KE175 1981 USA CANADA

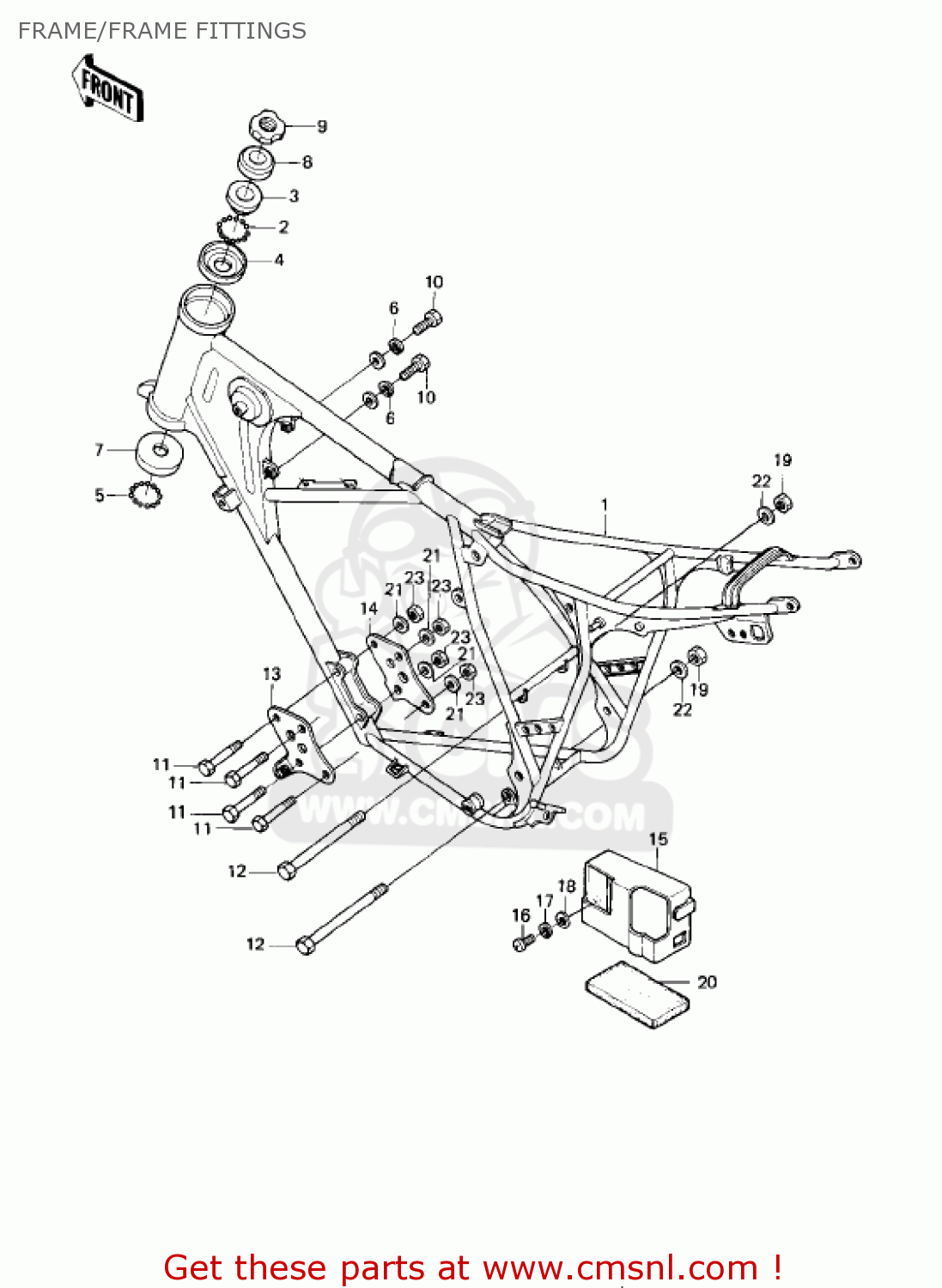

Frame/frame fittings diagram KE175-D3 KE175 1981 USA CANADA
FRAME/FRAME FITTINGS KE175-D3 KE175 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
320021142
ref: 1
FRAME
€ 432.00
2
600A0600
ref: 2
BALL-STEEL,3/16
€ 0.50
3
92047014
ref: 3
RACE,STEERING STEM BE
€ 12.50
4
92048009
ref: 4
RACE,STRG STM
€ 14.00
5
600A0800
ref: 5
BALL-STEEL,1/4
€ 0.50
6
920271181
ref: 6
COLLAR
€ 5.00
7
92048005
ref: 7
RACE-STEERING BEARING
€ 11.50
8
46098018
ref: 8
CAP,STEERING STEM
€ 4.00
9
92090022
ref: 9
NUT,STEERING LOCK,25M
€ 18.50
10
112G0640
ref: 10
BOLT-UPSET,6X40
€ 2.50
11
920011582
ref: 11
BOLT,FLANGED,8X65
€ 3.50
12
920011247
ref: 12
BOLT,HEX HEAD,10X120
€ 6.00
13
131691156
ref: 13
PLATE,ENG MNTNG,L.H.
€ 6.50
14
131691157
ref: 14
PLATE,ENG MNTNG,R.H.
€ 6.50
15
140251048
ref: 15
COVER,BATTERY
€ 9.00
16
220B0612
ref: 16
SCREW-PAN HEAD,6X12
€ 1.00
17
461F0600
ref: 17
WASHER-SPRING,6MM
€ 0.50
18
411B0600
ref: 18
WASHER-PLAIN,6MM
€ 0.50
19
92019021
ref: 19
NUT,LOCK,10M/M
€ 2.00
20
32103027
ref: 20
DAMPER,BATTERY
€ 7.50
21
411B0800
ref: 21
WASHER-PLAIN,8MM
€ 0.50
22
411B1000
ref: 22
WASHER-PLAIN,10MM
€ 0.50
23
920151124
ref: 23
NUT,LOCK,8MM
€ 3.50
