FRAME FITTINGS/BATTERY CASE
KE175-D3 KE175 1981 USA CANADA

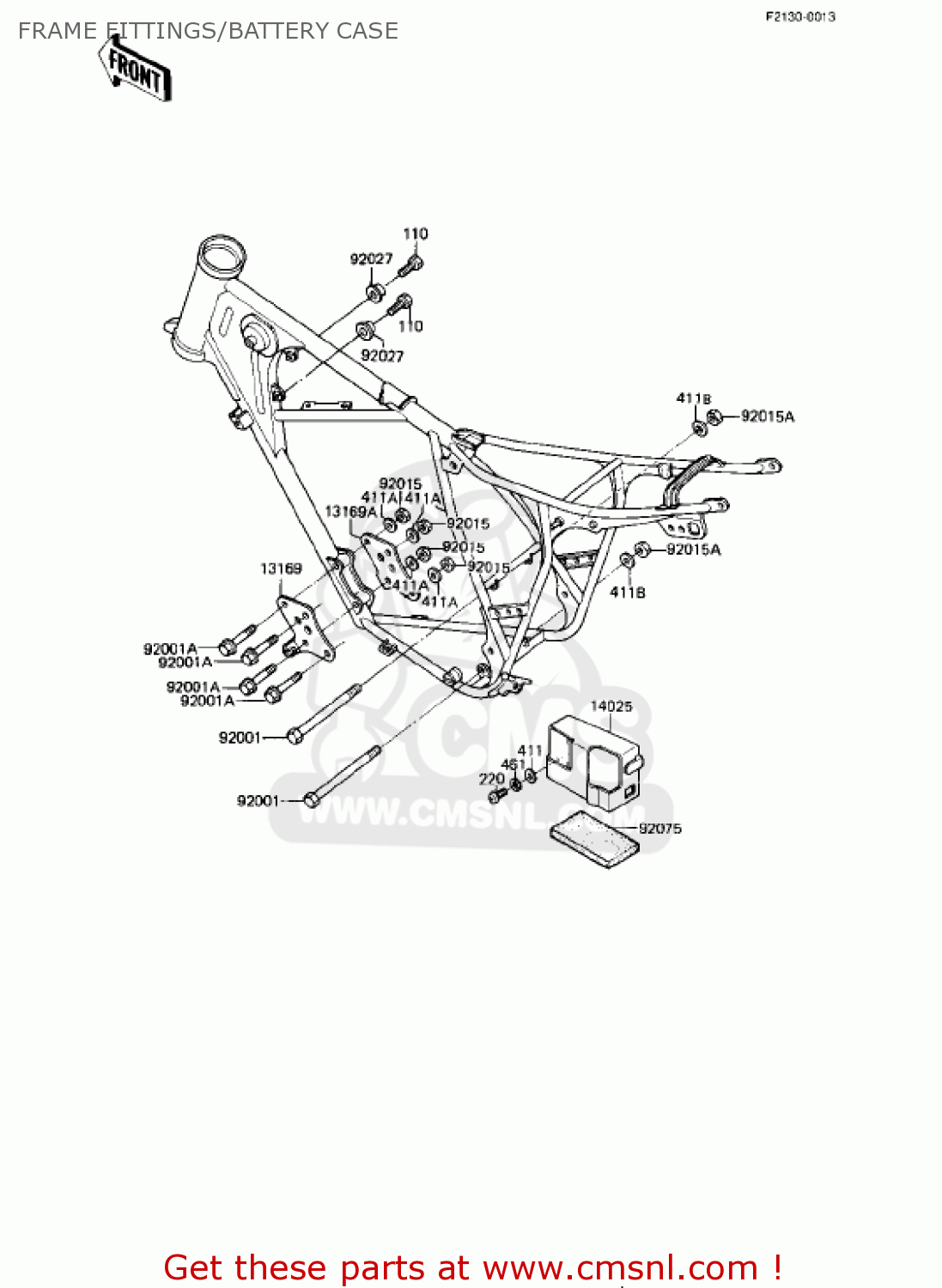

Frame fittings/battery case diagram KE175-D3 KE175 1981 USA CANADA
FRAME FITTINGS/BATTERY CASE KE175-D3 KE175 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13169
131691156
ref: 13169
PLATE,ENG MNTNG,L.H.
€ 6.50
13169A
131691157
ref: 13169A
PLATE,ENG MNTNG,R.H.
€ 6.50
14025
140251048
ref: 14025
COVER,BATTERY
€ 9.00
92001
920011247
ref: 92001
BOLT,HEX HEAD,10X120
€ 6.00
92001A
920011582
ref: 92001A
BOLT,FLANGED,8X65
€ 3.50
92015
920151124
ref: 92015
NUT,LOCK,8MM
€ 3.50
92015A
920151429
ref: 92015A
NUT,10MM
€ 4.50
92027
920271181
ref: 92027
COLLAR
€ 5.00
92075
32103027
ref: 92075
DAMPER,BATTERY
€ 7.50
110
112G0640
ref: 110
BOLT-UPSET,6X40
€ 2.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
411A
411B0800
ref: 411A
WASHER-PLAIN,8MM
€ 0.50
411B
411B1000
ref: 411B
WASHER-PLAIN,10MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
