ENGINE COVERS ('80-'81 KE175-D2/

KE175-D3 KE175 1981 USA CANADA

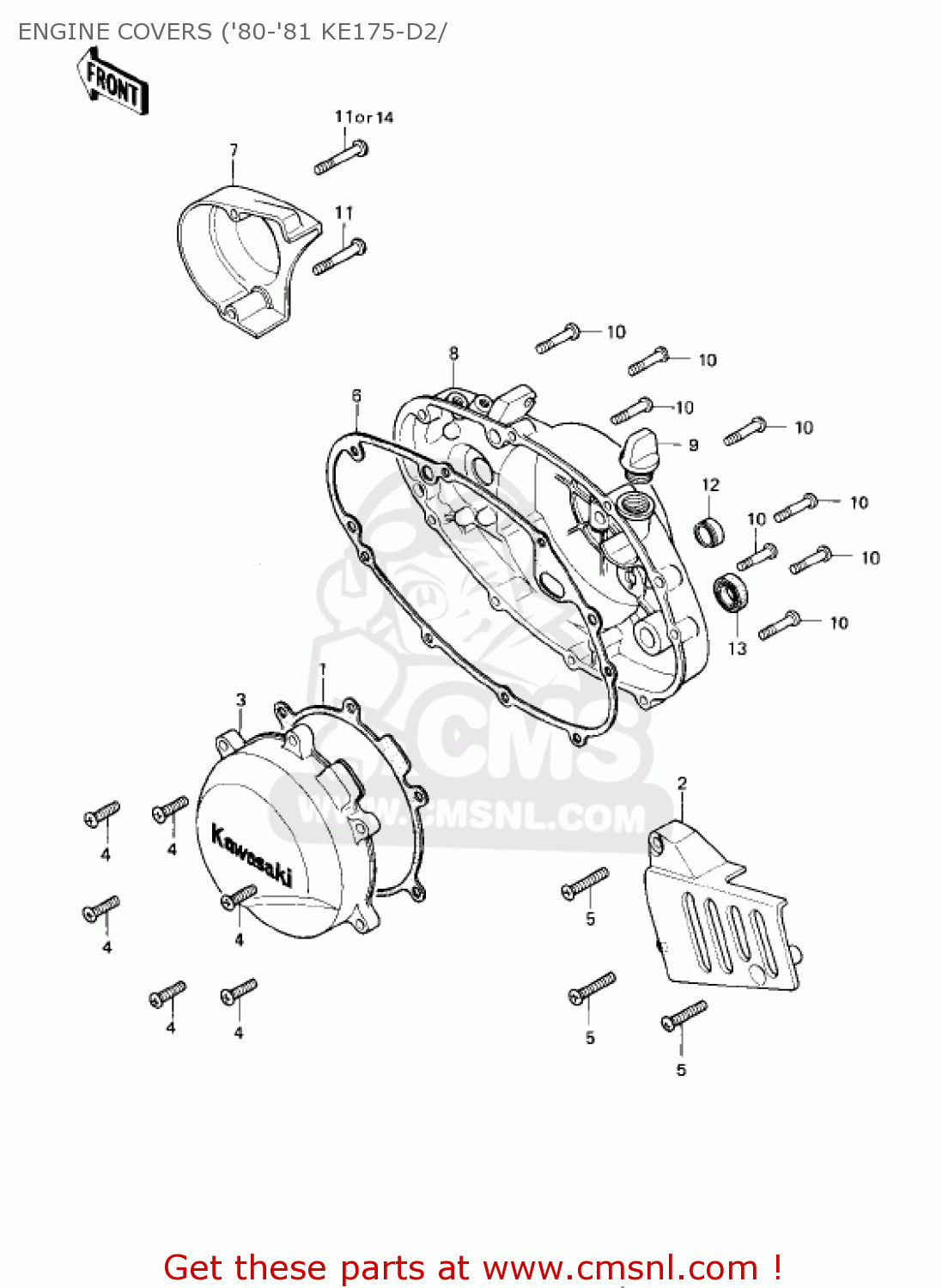

Engine covers ('80-'81 ke175-d2/ diagram KE175-D3 KE175 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

110091063
ref: 1

GASKET,MAGNETO COVER (MCA)

€ 9.00

140261067
ref: 2

COVER-CHAIN,F.BLACK

€ 12.00

140311016
ref: 3

COVER-GENERATOR

€ 47.50

220B0625
ref: 4

SCREW-PAN HEAD,6X25

€ 1.50

220B0635
ref: 5

SCREW-PAN HEAD,6X35

€ 1.00

110091062
ref: 6

GASKET,CLUTCH COVER (MCA)

€ 18.00

140301010
ref: 7

OIL PUMP COVER

€ 17.00

140321007
ref: 8

COVER-CLUTCH

€ 173.50

16115018
ref: 9

PLUG,OIL FILLER

€ 7.00

220B0630
ref: 10

SCREW-PAN HEAD,6X30

€ 2.50

220B0640
ref: 11

SCREW-PAN HEAD,6X40

€ 2.00

520051005
ref: 12

GAUGE,OIL LEVEL

€ 10.50

92051003
ref: 13

OIL SEAL TB16267

€ 6.00

220B0650
ref: 14

SCREW-PAN HEAD,6X50

€ 2.00
