MUFFLER ('82-'83 KE175-D4/D5)
KE175-D3 KE175 1981 USA CANADA

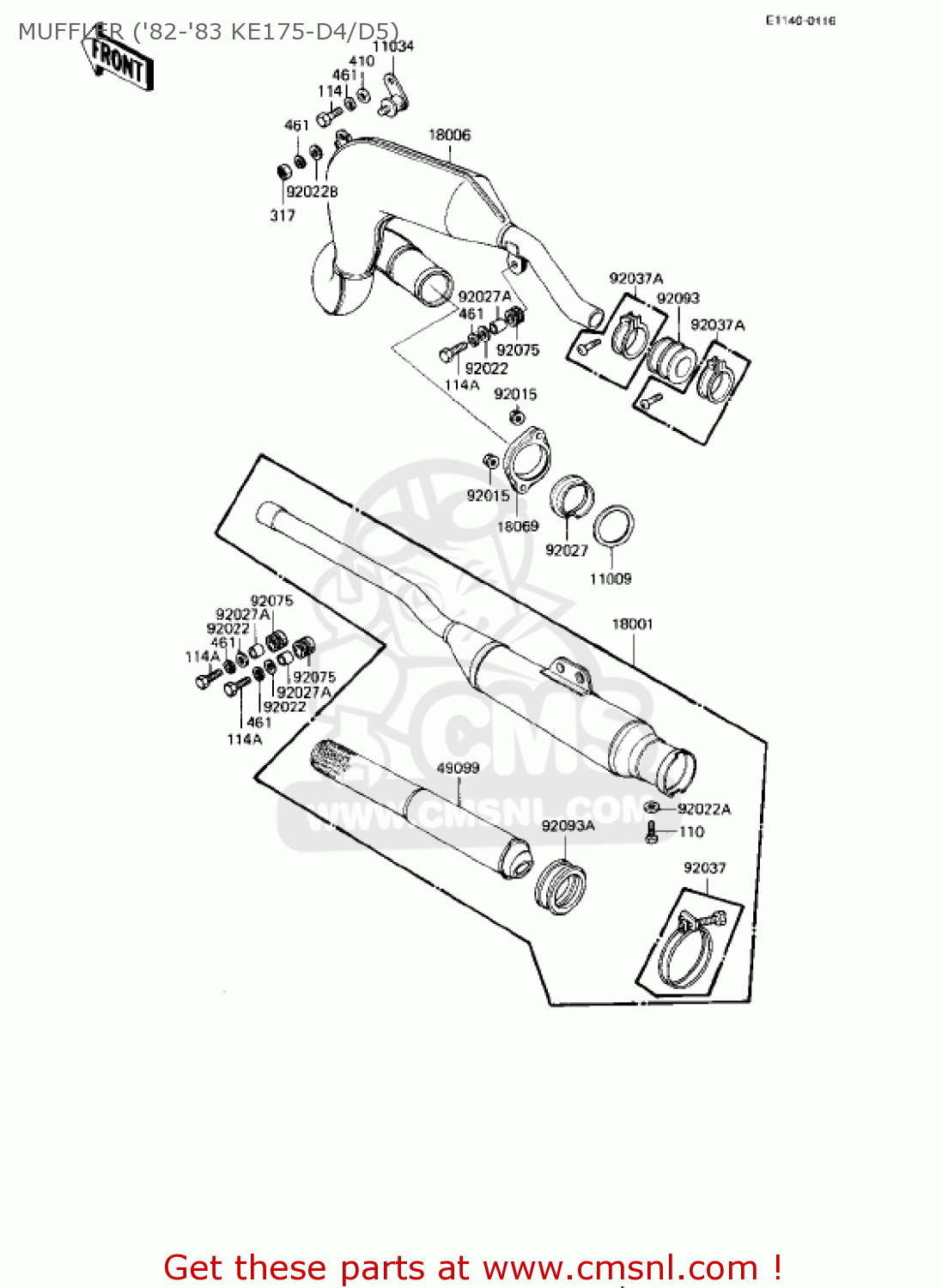

Muffler ('82-'83 ke175-d4/d5) diagram KE175-D3 KE175 1981 USA CANADA
MUFFLER ('82-'83 KE175-D4/D5) KE175-D3 KE175 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
18067008
ref: 11009
GASKET-EXHAUST PIPE (NAS)
€ 10.50
11034
18061060
ref: 11034
BRACKET,MUFFLER
€ 16.50
18001
180011153
ref: 18001
MUFFLER ASSY
€ 223.50
18006
180061050
ref: 18006
BODY,MUFFLER
€ 215.50
18069
18069049
ref: 18069
HOLDER-EXHAUST PIPE
€ 27.50
49099
490991006
ref: 49099
BAFFLE PIPE,MUFFLER
€ 77.00
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92022
920221564
ref: 92022
WASHER
€ 2.50
92022A
92022077
ref: 92022A
WASHER,6.1X12X1
€ 0.50
92022B
920221561
ref: 92022B
WASHER,8.5X20X1.6
€ 2.50
92027
18070007
ref: 92027
COLLAR,EXHAUST PIPE H
€ 6.50
92027A
92027102
ref: 92027A
COLLAR
€ 1.00
92037
920371190
ref: 92037
CLAMP,MUFFLER
€ 5.50
92037A
920371242
ref: 92037A
CLAMP,CARBURETOR HOLD
€ 6.50
92075
18063005
ref: 92075
DAMPER,MUFFLER
€ 3.00
92093
920931012
ref: 92093
SEAL,EXHAUST PIPE
€ 24.00
92093A
920931013
ref: 92093A
SEAL,MUFFLER
€ 7.50
110
110B0608
ref: 110
BOLT-HEX HEAD,6X8
€ 0.50
114
115G0816
ref: 114
BOLT-HEX,HEAD 8X16
€ 0.50
114A
114G0828
ref: 114A
BOLT-SMALL,8X28
€ 2.50
317
317B0800
ref: 317
NUT,8M/M
€ 0.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
