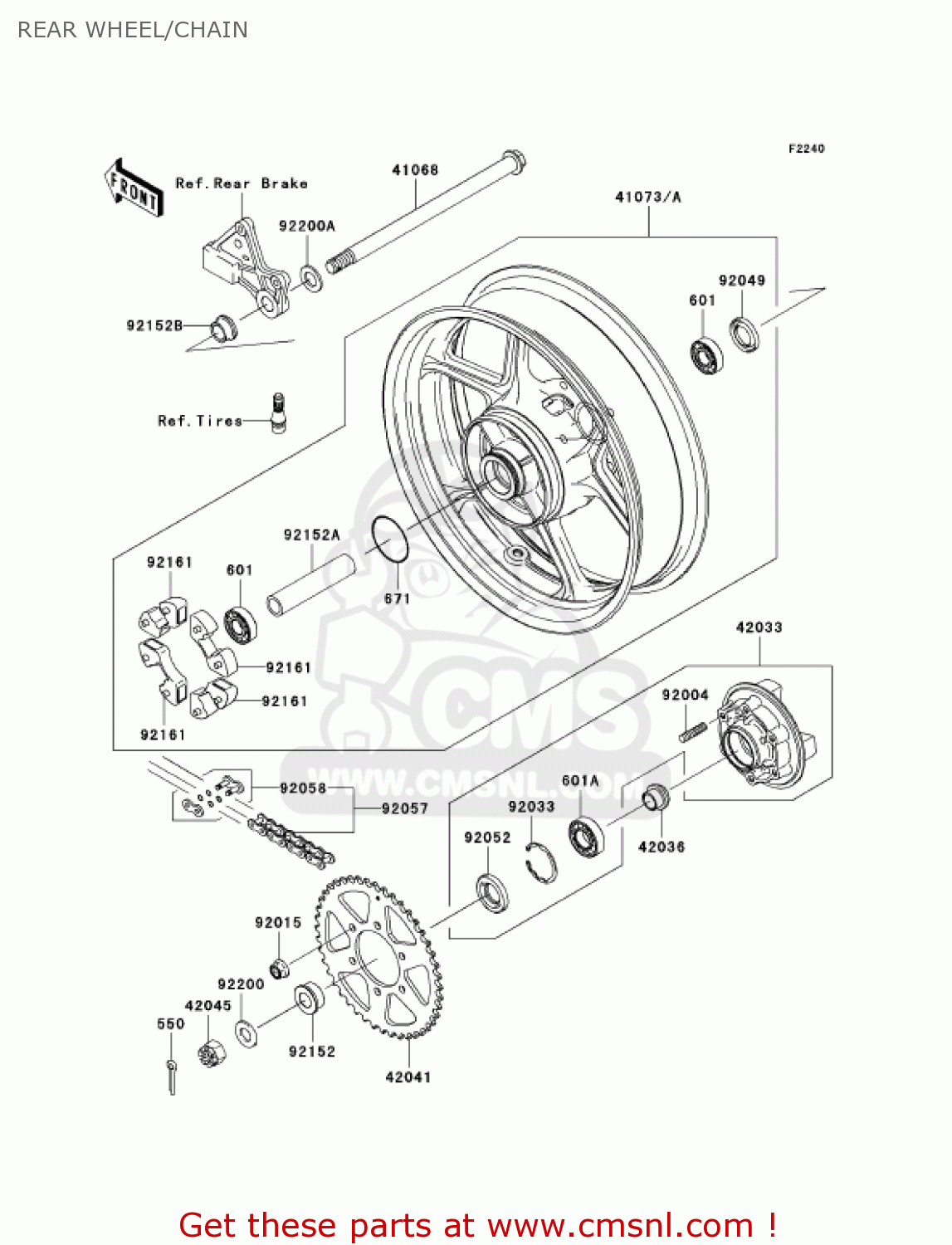

REAR WHEEL/CHAIN

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6204UU
ref: 601

BEARING-BALL,6204UUC3

€ 28.00

601A

601B6205UU
ref: 601A

BEARING-BALL

€ 27.50

671

671B2560
ref: 671

O RING,60MM

€ 1.50

41068

410680053
ref: 41068

AXLE,RR

€ 38.50

41073

410730051R2
ref: 41073

WHEEL-ASSY,RR,BLACK

€ 752.00

41073A

4107300512A
ref: 41073A

WHEEL-ASSY,RR,GRAYSTO

€ 673.00

42033

420330003
ref: 42033

COUPLING-ASSY,RR HUB

€ 217.00

42036

420361251
ref: 42036

SLEEVE,RR HUB,L=23

€ 18.00

42041

420410020
ref: 42041

SPROCKET-HUB,46T

€ 62.00

42045

42045018
ref: 42045

NUT,18MM

€ 7.50

92004

920041275
ref: 92004

STUD

€ 6.50

92015

920151335
ref: 92015

NUT,FLANGED,10MM

€ 1.50

92033

920331043
ref: 92033

RING,SNAP,56.2M/M

€ 6.00

92049

920491056
ref: 92049

OIL SEAL,BJN28475

€ 8.50

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92057

920570101
ref: 92057

CHAIN,DRIVE,EK520MVXL

€ 133.00

92058

920580007
ref: 92058

JOINT-CHAIN,DRIVE

€ 8.00

92152

921520118
ref: 92152

COLLAR,RR AXLE,LH,L=1

€ 5.50

92152A

921520301
ref: 92152A

COLLAR,RR HUB,L=133

€ 17.50

92152B

921520302
ref: 92152B

COLLAR,RR AXLE,RH,L=1

€ 12.50

92161

921610303
ref: 92161

DAMPER,SHOCK,RR HUB

€ 11.50

92200

922000296
ref: 92200

WASHER,19X36X3.2

€ 1.50

92200A

922000297
ref: 92200A

WASHER,20.5X36X3.2

€ 3.50
