OIL PUMP/OIL FILTER

EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

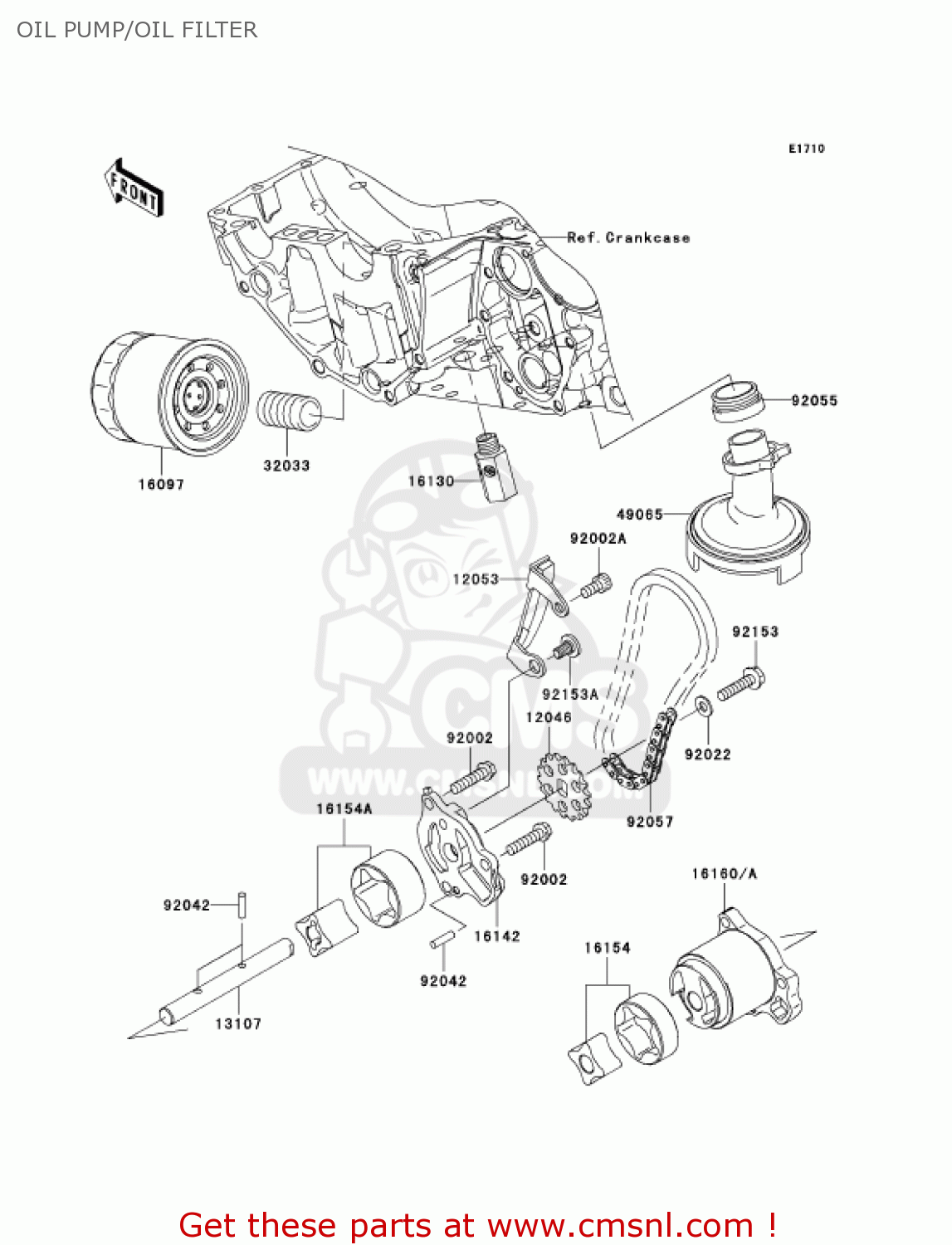

Oil pump/oil filter diagram EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

OIL PUMP/OIL FILTER EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
OIL PUMP/OIL FILTER EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
OIL PUMP/OIL FILTER EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
12046
120460040
ref: 12046
SPROCKET,18T,BF04M
120460040
€ 11.00
12053
120530071
ref: 12053
GUIDE-CHAIN
120530071
€ 24.50
13107
131070093
ref: 13107
SHAFT,OIL PUMP
131070093
€ 23.00
16097
160970004
ref: 16097
FILTER-ASSY-OIL
160970004
€ 10.50
16130
161301058
ref: 16130
VALVE-ASSY-RELIEF
161301058
€ 30.00
16142
161420024
ref: 16142
COVER-PUMP
161420024
€ 23.00
16154
161540037
ref: 16154
ROTOR-PUMP,L=14
161540037
€ 47.50
16154A
161541115
ref: 16154A
ROTOR-PUMP
161541115
€ 51.00
16160A
161600110
ref: 16160A
BODY
€ 29.50
32033
320331535
ref: 32033
PIPE
320331535
€ 9.00
49065
490650011
ref: 49065
FILTER-OIL
490650011
€ 19.50
92002
920021344
ref: 92002
BOLT,6X25
920021344
€ 1.50
92002A
920021796
ref: 92002A
BOLT,SOCKET,6X12
920021796
€ 3.00
92022
920221827
ref: 92022
WASHER,6X12.8X1.2
920221827
€ 3.00
92042
92042014
ref: 92042
PIN-GEAR CHANGE DRUM
92042014
€ 0.50
92055
920551354
ref: 92055
RING-O,OIL FILTER
920551354
€ 6.50
92057
920570098
ref: 92057
CHAIN,DID 215FD-DHA,5
920570098
€ 21.50
92153
921530952
ref: 92153
BOLT,FLANGED,6X25
921530952
€ 1.50
92153A
921530969
ref: 92153A
BOLT,SOCKET,6X11
921530969
€ 4.50
