REAR MASTER CYLINDER

EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

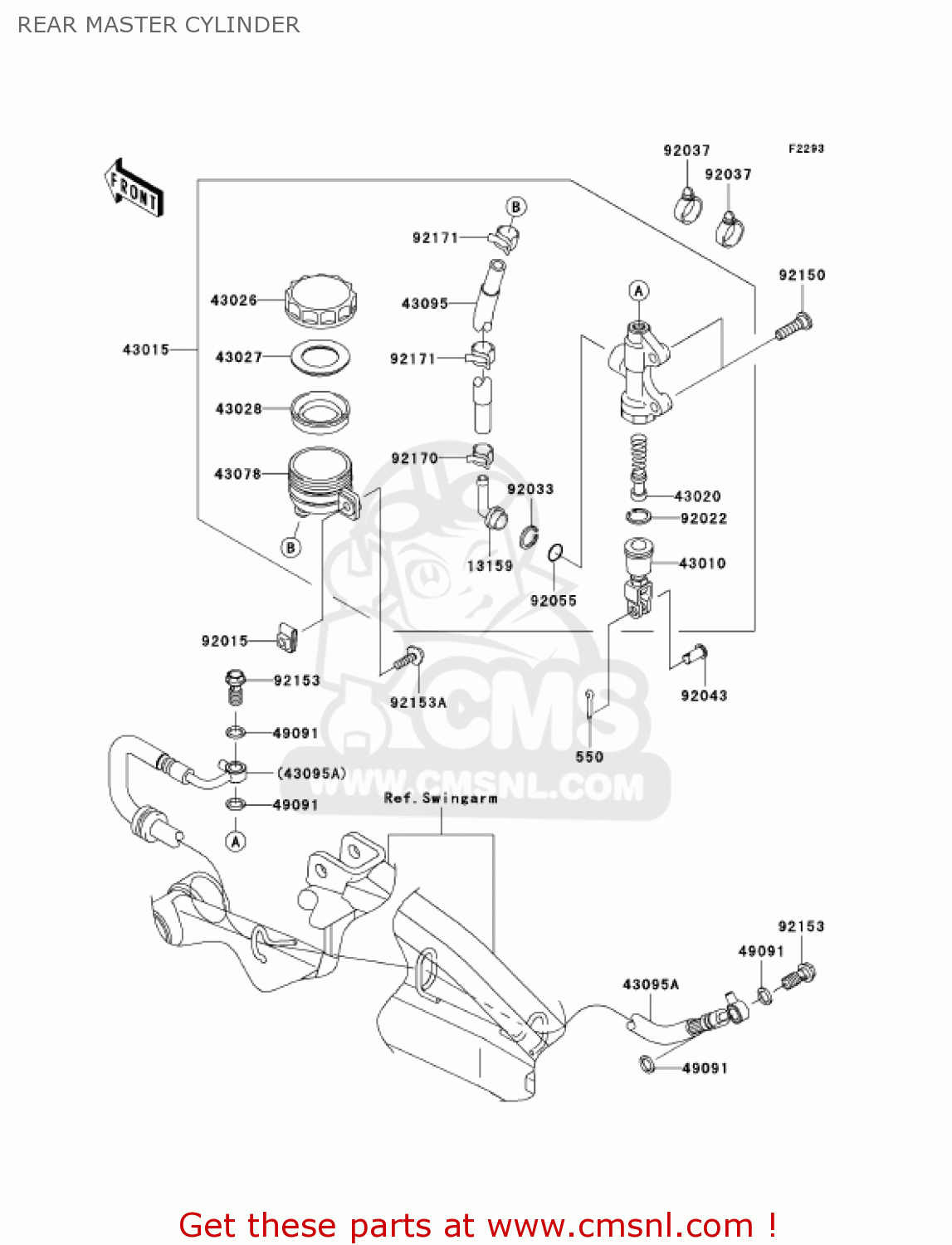

Rear master cylinder diagram EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

REAR MASTER CYLINDER EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
REAR MASTER CYLINDER EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
REAR MASTER CYLINDER EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
13159
131591056
ref: 13159
CONNECTOR
131591056
€ 9.50
43010
430101074
ref: 43010
ROD-ASSY-BRAKE
€ 50.00
43015
430150068
ref: 43015
CYLINDER-ASSY-MASTER,
430150068
€ 248.00
43020
430201094
ref: 43020
PISTON-COMP, BRAKE
430201094
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
430261051
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43078
430781082
ref: 43078
RESERVOIR, RR MASTER
430781082
€ 19.00
43095
430950193
ref: 43095
HOSE-BRAKE,RR MASTER
430950193
€ 18.00
43095A
430950238
ref: 43095A
HOSE-BRAKE,RR
430950238
€ 77.50
49091
490910001
ref: 49091
WASHER-SEAL,10.1X14.5
490910001
€ 1.50
92015
920151602
ref: 92015
NUT,6MM
920151602
€ 4.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371827
ref: 92037
CLAMP,HOSE
920371827
€ 5.00
92043
920431303
ref: 92043
PIN,8MM
920431303
€ 2.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92150
921501843
ref: 92150
BOLT
921501843
€ 2.50
92153
921530627
ref: 92153
BOLT,OIL,L=23
921530627
€ 3.50
92153A
921530725
ref: 92153A
BOLT,6X22
921530725
€ 1.50
92170
921701091
ref: 92170
CLAMP,HOSE
921701091
€ 3.00
92171
921710463
ref: 92171
CLAMP,HOSE
921710463
€ 4.00
