GEAR CHANGE MECHANISM

EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

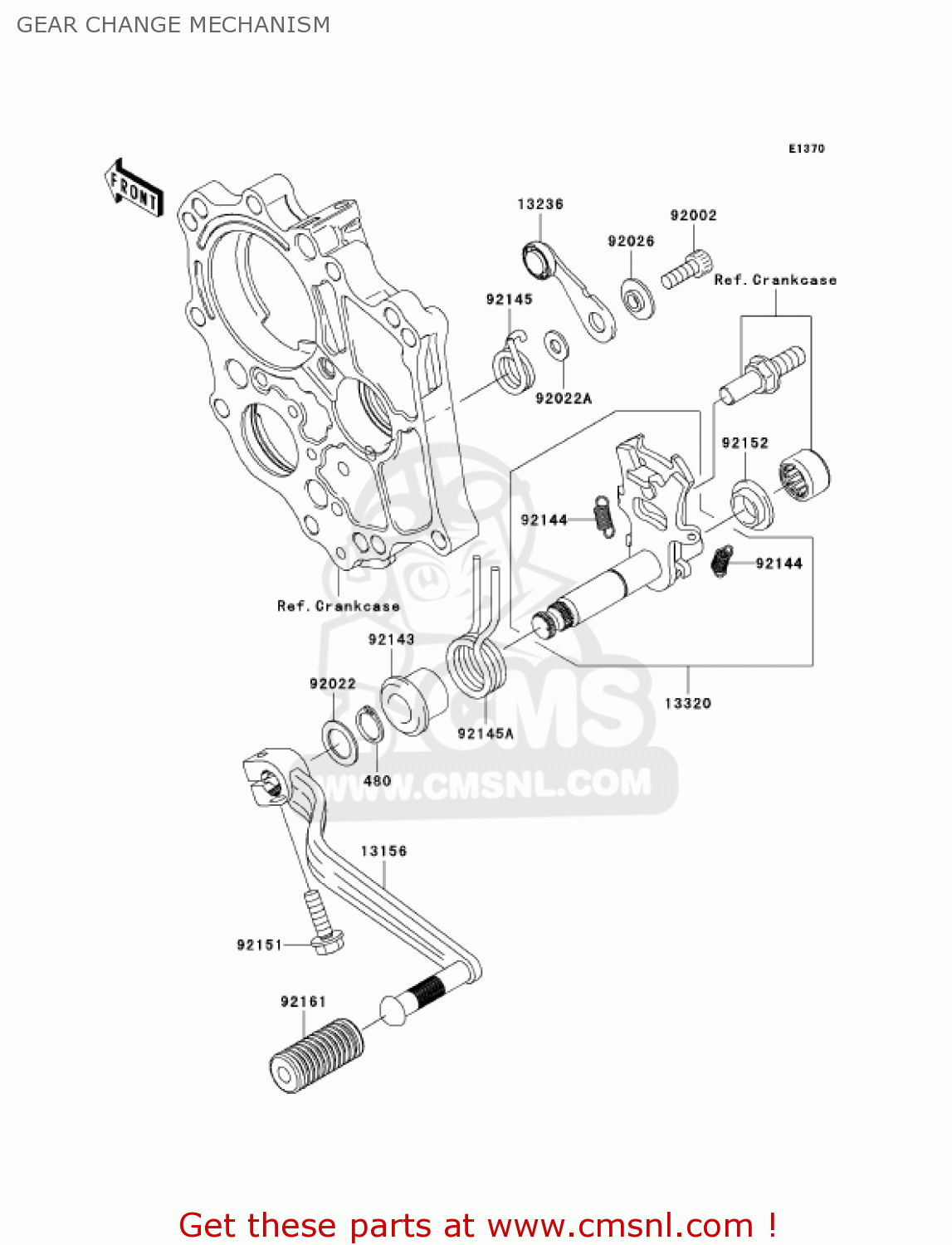

Gear change mechanism diagram EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13156

131560072
ref: 13156

LEVER-CHANGE,PEDAL

€ 52.50

13236

132360094
ref: 13236

LEVER-COMP,POSITION

€ 6.50

13320

133200010
ref: 13320

LEVER-ASSY

€ 45.50

92002

920021778
ref: 92002

BOLT,SOCKET,6X16

€ 3.00

92022

920221496
ref: 92022

WASHER,13.3X20X1

€ 2.50

92022A

920221827
ref: 92022A

WASHER,6X12.8X1.2

€ 3.00

92026

920261217
ref: 92026

SPACER

€ 3.50

92143

921431498
ref: 92143

COLLAR,RETURN SPRING

€ 7.00

92144

921441975
ref: 92144

SPRING,CHANGE LEVER

€ 3.00

92145

921450304
ref: 92145

SPRING,POSITION

€ 2.50

92145A

921450326
ref: 92145A

SPRING,RETURN

€ 4.00

92151

921511226
ref: 92151

BOLT,6X20

€ 1.50

92152

921521075
ref: 92152

COLLAR

€ 2.50

92161

921611300
ref: 92161

DAMPER,CHANGE PEDAL

€ 4.00
