OIL PAN

EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

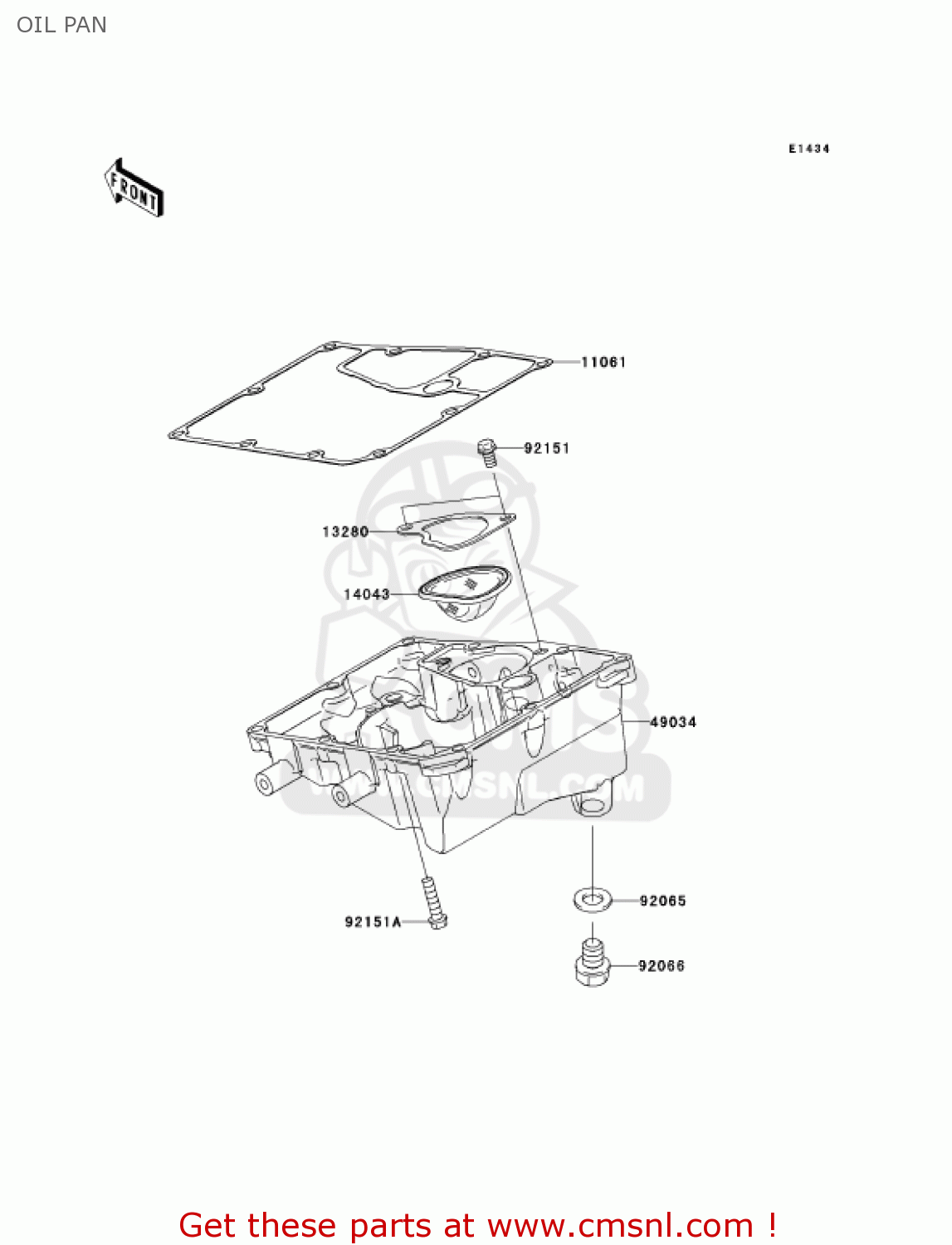

Oil pan diagram EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

OIL PAN EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

OIL PAN EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11061

110610167
ref: 11061

GASKET,OIL PAN (NAS)

€ 11.00

13280

132800134
ref: 13280

HOLDER,OIL FILTER

€ 3.00

14043

140430008
ref: 14043

FILTER,DRAIN,BOLT

€ 8.50

49034

490340014
ref: 49034

PAN-OIL

€ 138.00

92065

92065097
ref: 92065

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

92066

920660069
ref: 92066

PLUG,DRAIN,12X22

€ 2.50

92151

921511389
ref: 92151

BOLT,6X10

€ 1.50

92151A

921511930
ref: 92151A

BOLT,6X25

€ 2.00
