CYLINDER HEAD

EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

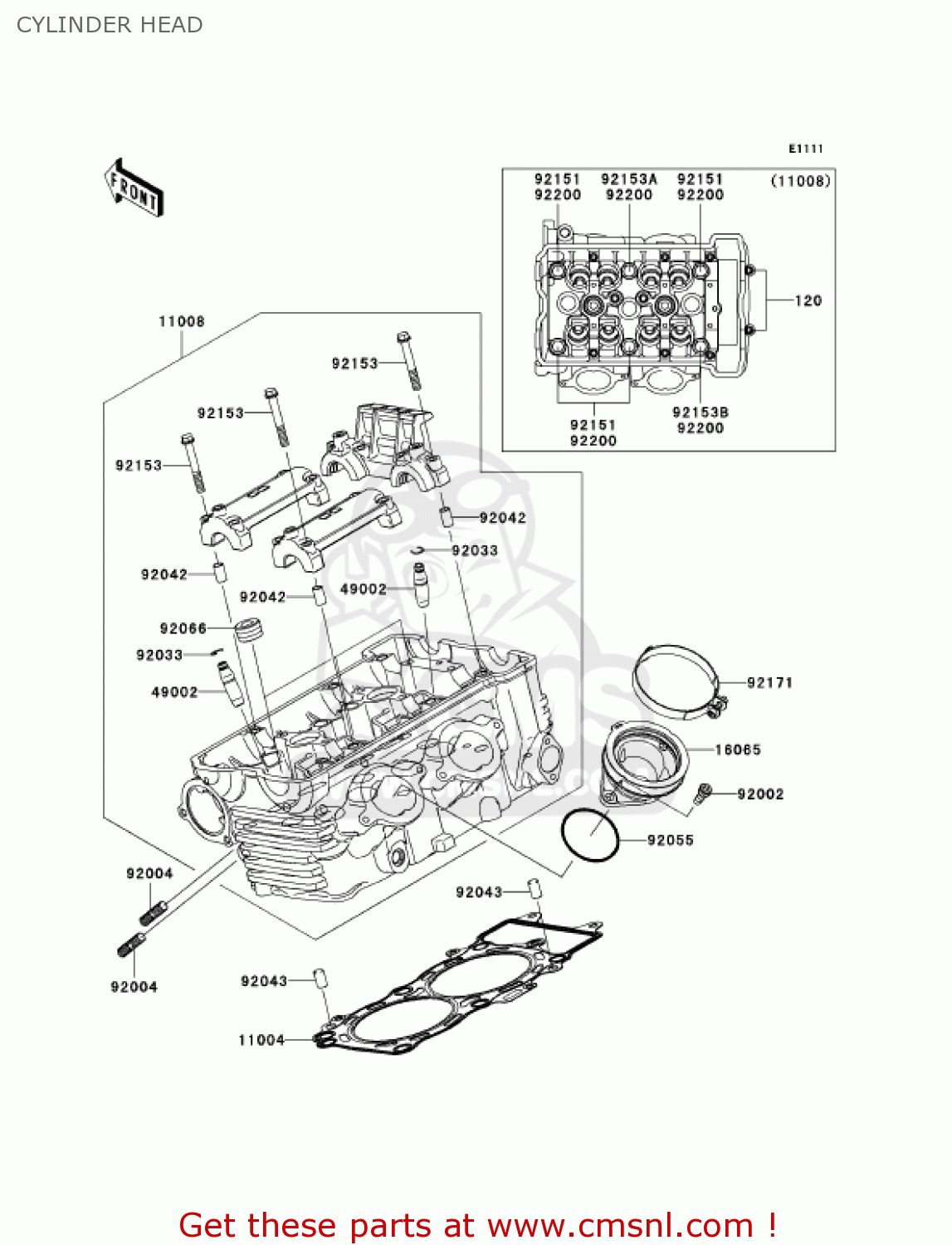

Cylinder head diagram EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

CYLINDER HEAD EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
CYLINDER HEAD EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
CYLINDER HEAD EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120Z0630
ref: 120
BOLT-SOCKET,6X30
€ 3.00
11004
110040035
ref: 11004
GASKET-HEAD (NAS)
110040035
€ 51.00
11008
110080089
ref: 11008
HEAD-COMP-CYLINDER
€ 1,697.50
16065
160650024
ref: 16065
HOLDER,THROTTLE BODY
160650024
€ 28.50
49002
490021116
ref: 49002
GUIDE-VALVE
490021116
€ 23.00
92002
920021143
ref: 92002
BOLT,6X16
920021143
€ 2.50
92004
920041249
ref: 92004
STUD,8X22
920041249
€ 2.50
92033
920331247
ref: 92033
RING-SNAP
920331247
€ 2.00
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92043
920431567
ref: 92043
PIN,8X14
920431567
€ 1.50
92055
920551600
ref: 92055
RING-O,47X1.9
920551600
€ 6.50
92066
920660002
ref: 92066
PLUG,PT1/2X12.5
920660002
€ 6.50
92151
921511152
ref: 92151
BOLT,10X158
921511152
€ 10.00
92153
921530339
ref: 92153
BOLT,6X45
921530339
€ 2.00
92153A
921530972
ref: 92153A
BOLT,FLANGED-SMALL,10
921530972
€ 11.00
92153B
921531321
ref: 92153B
BOLT,FLANGED-SMALL,10
921531321
€ 11.00
92171
921711089
ref: 92171
CLAMP
921711089
€ 10.00
92200
922000114
ref: 92200
WASHER,10.5X19X2.3
922000114
€ 2.00
