CLUTCH

EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

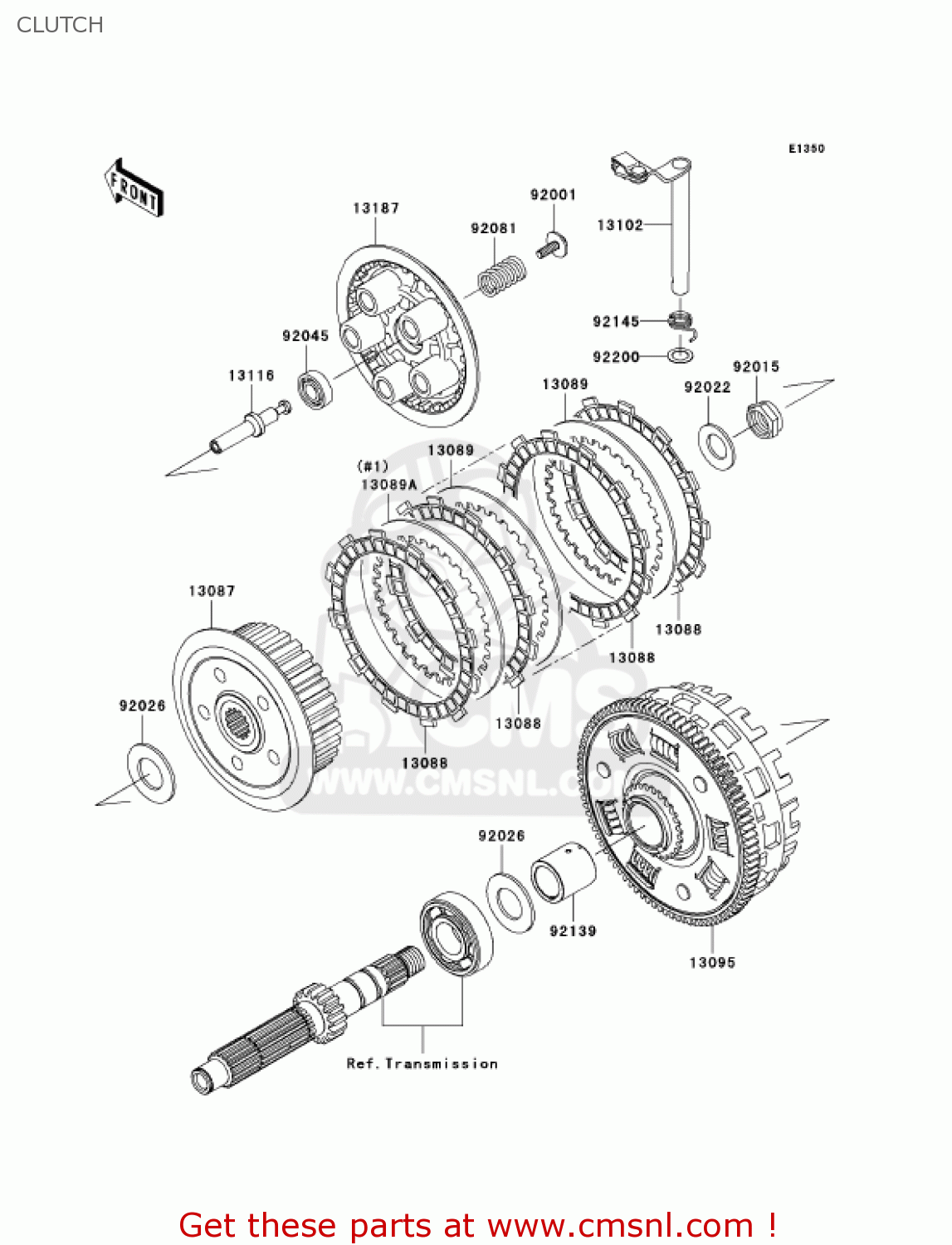

Clutch diagram EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

CLUTCH EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
CLUTCH EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
CLUTCH EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13087
13087042
ref: 13087
HUB,CLUTCH
13087042
€ 133.00
13088
130881105
ref: 13088
PLATE-FRICTION (NAS)
130881105
€ 14.50
13089
130890016
ref: 13089
PLATE-CLUTCH,T=2.3 (NAS)
130890016
€ 8.00
13089A
130890017
ref: 13089A
PLATE-CLUTCH,T=2.6 (NAS)
130890017
€ 8.00
13095
130950059
ref: 13095
HOUSING-COMP-CLUTCH
130950059
€ 427.50
13102
131020021
ref: 13102
RELEASE-COMP-CLUTCH
131020021
€ 34.00
13116
131160018
ref: 13116
ROD-PUSH
131160018
€ 17.50
13187
131871006
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
131871006
€ 58.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
920011066
€ 4.00
92015
920151555
ref: 92015
NUT,20MM
920151555
€ 9.00
92022
920221868
ref: 92022
WASHER
920221868
€ 6.50
92026
92026022
ref: 92026
SPACER,25.5X47X2.5
92026022
€ 6.50
92045
920451235
ref: 92045
BEARING-BALL,6001C3ML
920451235
€ 15.50
92081
920811033
ref: 92081
SPRING,CLUTCH
920811033
€ 6.50
92139
921390106
ref: 92139
BUSHING
921390106
€ 25.50
92145
921450066
ref: 92145
SPRING,CLUTCH RELEASE
921450066
€ 5.00
92200
922001487
ref: 92200
WASHER,12X18.5X0.5
922001487
€ 1.50
