IGNITION SYSTEM

EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

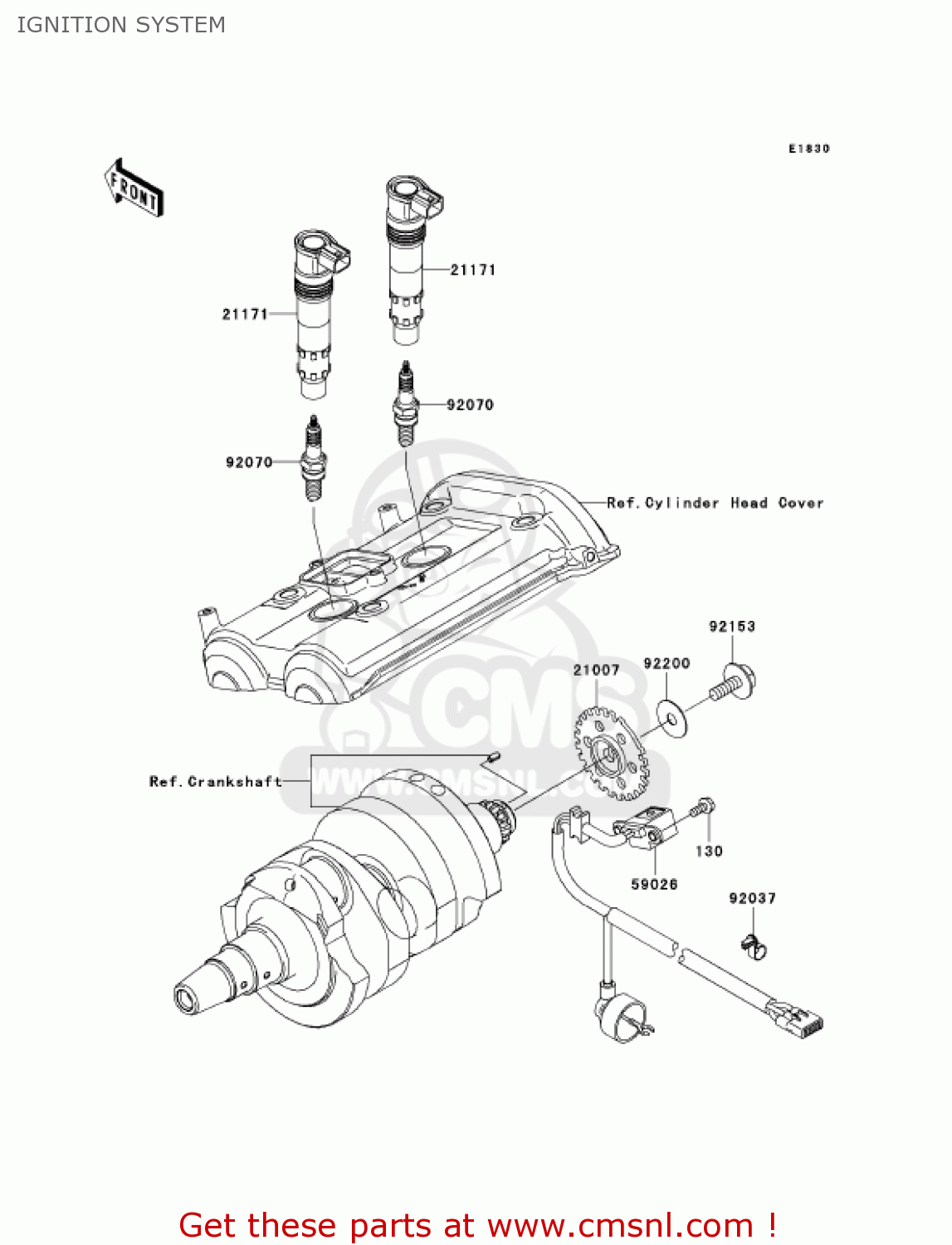

Ignition system diagram EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130G0512

130G0512
ref: 130G0512

BOLT-FLANGED

€ 1.00

21007

210070053
ref: 21007

ROTOR,PULSING

€ 13.50

21171

211711286
ref: 21171

COIL-ASSY-IGNITION

€ 137.00

59026

590260018
ref: 59026

COIL-PULSING

€ 60.00

92037

920371290
ref: 92037

CLAMP,CARBURETOR

€ 4.50

92070

920700014
ref: 92070

CR9EIA-9 (NGK SPARKPL

€ 20.50

92153

921530549
ref: 92153

BOLT,8X23

€ 6.00

92200

922000274
ref: 92200

WASHER,8.5X28X0.8

€ 1.50
