Genuine EX Kawasaki Parts delivered quickly!


FRONT FORK

EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

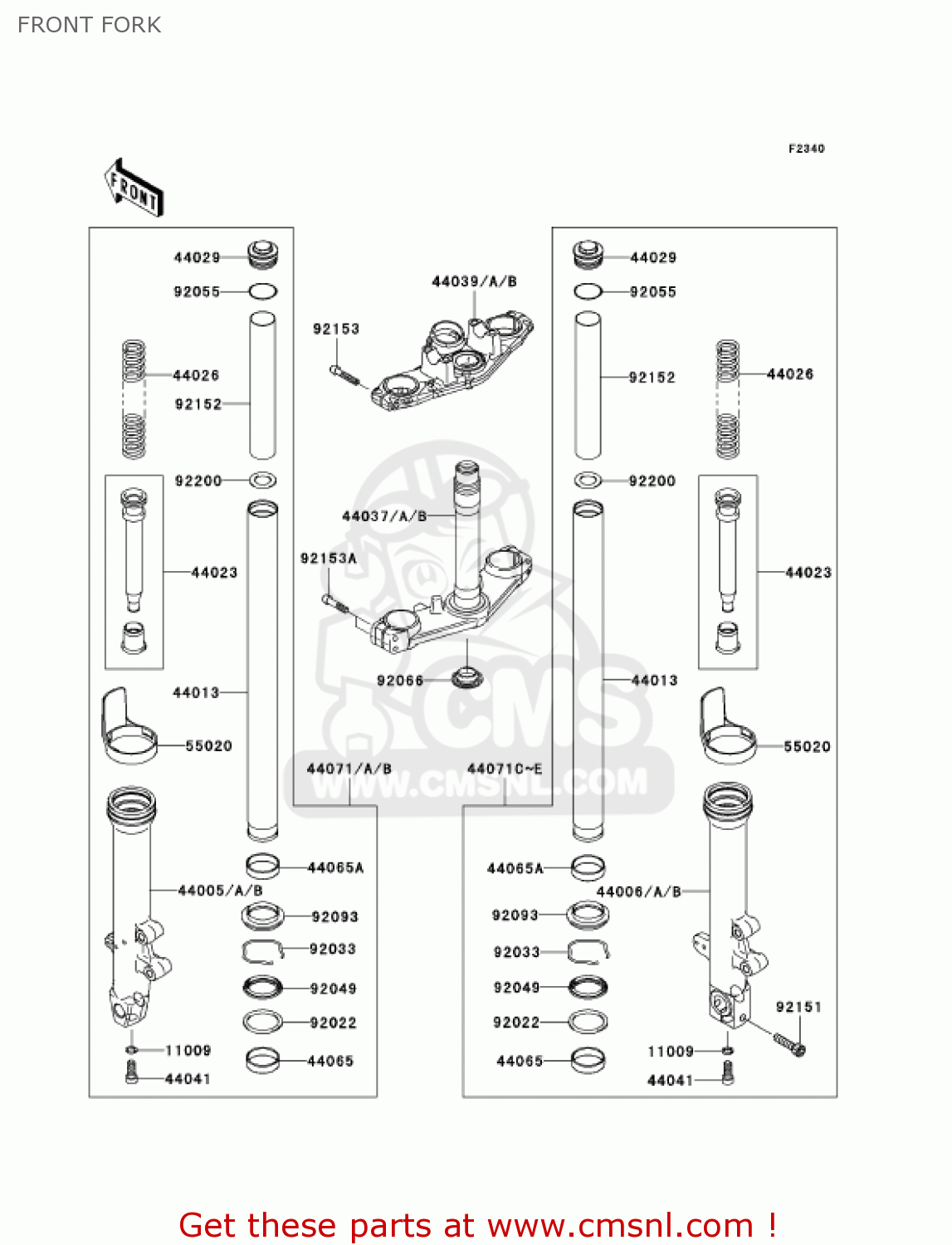

Front fork diagram EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

FRONT FORK EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
FRONT FORK EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
FRONT FORK EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091325
ref: 11009
GASKET,FORK, CYL BOLT (NAS)
€ 3.00
44005
440050045458
ref: 44005
PIPE-LEFT FORK OUTER,
€ 272.50
44006
440060045458
ref: 44006
PIPE-RIGHT FORK OUTER
€ 287.50
44013
440130063
ref: 44013
PIPE-FORK INNER
€ 278.50
44023
440230044
ref: 44023
CYLINDER-SET-FORK
€ 88.00
44026
440260090
ref: 44026
SPRING-FRONT FORK
€ 45.50
44029
440290005
ref: 44029
SEAT-FORK SPRING
€ 35.00
44037
440370050458
ref: 44037
HOLDER-FORK UNDER,P.S
440370050458
€ 266.00
44039
440390033458
ref: 44039
HOLDER-FORK UPPER,P.S
440390033458
€ 255.00
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
44041040
€ 4.50
44065
440650014
ref: 44065
BUSHING-FRONT FORK,IN
440650014
€ 23.50
44065A
440651115
ref: 44065A
BUSHING-FRONT FORK
440651115
€ 19.50
44071
440710289458
ref: 44071
DAMPER-ASSY,FORK,LH,P
€ 636.50
44071C
440710290458
ref: 44071C
DAMPER-ASSY,FORK,RH,P
€ 636.50
55020
550201691
ref: 55020
GUARD,FORK
550201691
€ 6.50
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
920221298
€ 5.50
92033
920331036
ref: 92033
CIRCLIP
920331036
€ 4.00
92049
920490073
ref: 92049
SEAL-OIL
920490073
€ 16.00
92055
920551321
ref: 92055
RING-O
€ 1.00
92066
920660032
ref: 92066
PLUG
920660032
€ 8.50
92093
920931472
ref: 92093
SEAL,FORK OUTER TUBE
920931472
€ 16.50
92151
921511357
ref: 92151
BOLT,SOCKET,10X40
921511357
€ 3.50
92152
921520410
ref: 92152
COLLAR,FORK
921520410
€ 10.50
92153
921530506
ref: 92153
BOLT,SOCKET,8X40
921530506
€ 5.50
92153A
921531472
ref: 92153A
BOLT,SOCKET,8X35
€ 5.50
92200
922001302
ref: 92200
WASHER
922001302
€ 3.00
