CRANKCASE

EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

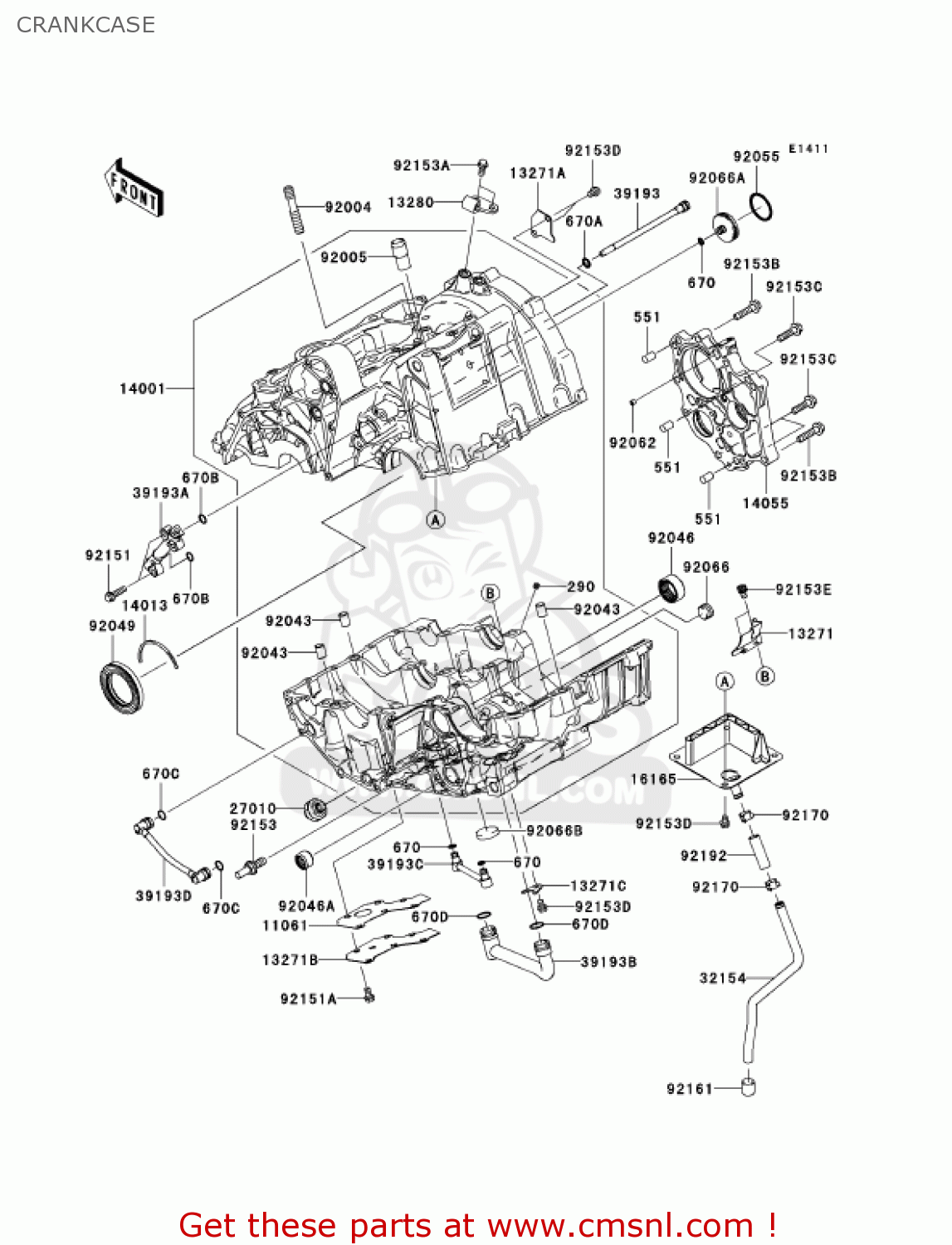

Crankcase diagram EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA

CRANKCASE EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
CRANKCASE EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
CRANKCASE EX650A7F NINJA 650R 750 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
290
290Q0606
ref: 290
SCREW,6X6
290Q0606
€ 3.00
11061
110610182
ref: 11061
GASKET (NAS)
110610182
€ 5.00
13271
132710575
ref: 13271
PLATE,OIL SHIELDING
€ 14.50
13271A
132710577
ref: 13271A
PLATE,CASE,LH
132710577
€ 1.50
13271B
132710584
ref: 13271B
PLATE
€ 3.00
13271C
132711187
ref: 13271C
PLATE,OIL PIPE
132711187
€ 1.50
13280
132800171
ref: 13280
HOLDER,CLUTCH CABLE
€ 6.50
14001
140010075
ref: 14001
SET-CRANKCASE
€ 1,269.50
14013
140131004
ref: 14013
RING-POSITION,CRANK
140131004
€ 3.00
14055
140550018
ref: 14055
CASE-GEAR
€ 96.00
16165
161650001
ref: 16165
SEPARATOR
161650001
€ 48.00
27010
270101313
ref: 27010
SWITCH,OIL PRESSURE
270101313
€ 28.00
32154
321540661
ref: 32154
PIPE,BREATHER
€ 10.50
39193
391930029
ref: 39193
PIPE-OIL
391930029
€ 21.50
39193A
391930030
ref: 39193A
PIPE-OIL
€ 60.00
39193B
391930031
ref: 39193B
PIPE-OIL
€ 39.00
39193C
391930032
ref: 39193C
PIPE-OIL
391930032
€ 20.00
39193D
391930033
ref: 39193D
PIPE-OIL
€ 39.00
92004
920040024
ref: 92004
STUD,10X34.5
€ 6.50
92005
920051238
ref: 92005
FITTING,BREATHER
920051238
€ 7.50
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
92046
920460017
ref: 92046
BEARING-NEEDLE,24BTM3
920460017
€ 13.50
92046A
920461148
ref: 92046A
BEARING-NEEDLE,HK1312
920461148
€ 19.50
92049
920491501
ref: 92049
SEAL-OIL,HTC40628
920491501
€ 7.50
92055
920550006
ref: 92055
RING-O,29.7X2.4
920550006
€ 4.00
92062
920621086
ref: 92062
NOZZLE
€ 2.50
92066
920660003
ref: 92066
PLUG
920660003
€ 2.50
92066A
920660056
ref: 92066A
PLUG,INPUT SHAFT
920660056
€ 15.00
92066B
920660061
ref: 92066B
PLUG,25X5
920660061
€ 4.00
92151
921511197
ref: 92151
BOLT
921511197
€ 3.00
92151A
921511389
ref: 92151A
BOLT,6X10
921511389
€ 1.50
92153
921530530
ref: 92153
BOLT,8X20
921530530
€ 4.00
92153A
921530542
ref: 92153A
BOLT,6X14
€ 2.00
92153B
921530962
ref: 92153B
BOLT,FLANGED,6X30
921530962
€ 2.00
92153C
921530963
ref: 92153C
BOLT,FLANGED,7X26
€ 2.00
92153D
921530964
ref: 92153D
BOLT,FLANGED-SMALL,6X
€ 1.50
92153E
921531414
ref: 92153E
BOLT,SOCKET,6X8
921531414
€ 1.00
92161
921610267
ref: 92161
DAMPER
€ 2.50
92170
921701167
ref: 92170
CLAMP
921701167
€ 4.00
92192
921920225
ref: 92192
TUBE,9X12X38
921920225
€ 2.50
551
551A0814
ref: 551
PIN-DOWEL,8X14
551A0814
€ 0.50
670
670D1505
ref: 670
O RING
670D1505
€ 2.50
670A
670D1508
ref: 670A
O RING,8MM
670D1508
€ 2.50
670B
670D1509
ref: 670B
O RING,9MM
670D1509
€ 3.00
670C
670D1510
ref: 670C
O RING,10MM
670D1510
€ 3.00
670D
670D2014
ref: 670D
O RING,14MM
670D2014
€ 3.50
