TRANSMISSION
EN500C5 2000 IS / KPH

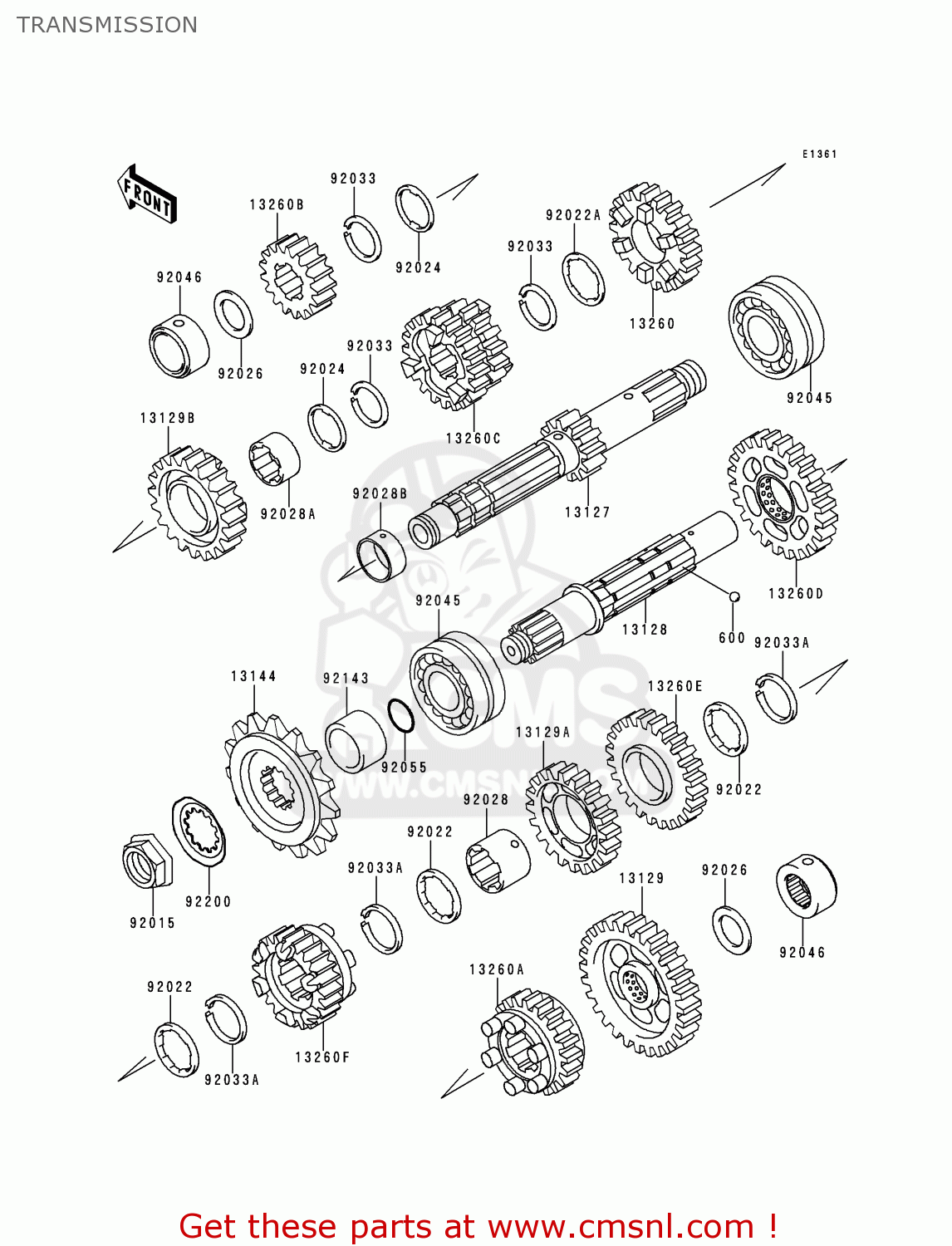

Transmission diagram EN500C5 2000 IS / KPH
TRANSMISSION EN500C5 2000 IS / KPH
×
prices are in EUR
ref
part #
description
quantity
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13127
131271148
ref: 13127
SHAFT-TRANSMISSION IN
€ 187.50
13128
131281212
ref: 13128
SHAFT-TRANSMISSION OU
€ 154.00
13129
131291564
ref: 13129
GEAR,OUTPUT LOW,36T
€ 120.50
13129A
131291660
ref: 13129A
GEAR,OUTPUT 4TH,27T
€ 113.50
13129B
131291859
ref: 13129B
GEAR,INPUT TOP,27T
€ 107.00
13144
131441272
ref: 13144
SPROCKET-OUTPUT,16T
€ 36.00
13260
132601203
ref: 13260
GEAR,INPUT 5TH,26T
€ 101.50
13260A
132601388
ref: 13260A
GEAR,OUTPUT 5TH,25T
€ 127.50
13260B
132601507
ref: 13260B
GEAR,INPUT 2ND,18T
€ 79.50
13260C
132601508
ref: 13260C
GEAR,INPUT 3RD&4TH,21
€ 103.00
13260D
132601572
ref: 13260D
GEAR,OUTPUT 2ND,31T
€ 59.00
13260E
132601573
ref: 13260E
GEAR,OUTPUT 3RD,28T
€ 120.50
13260F
132601585
ref: 13260F
GEAR,OUTPUT TOP,23T
€ 113.50
92015
920151963
ref: 92015
NUT,20MM
€ 10.50
92022
920221139
ref: 92022
WASHER,TOOTHED,28.3X3
€ 4.00
92022A
920221861
ref: 92022A
WASHER,TOOTHED,25.3X3
€ 4.00
92024
92024033
ref: 92024
WASHER,TOOTHED,25.5X3
€ 4.50
92026
920261022
ref: 92026
SPACER,20.3X30X2.0
€ 3.00
92028
920281364
ref: 92028
BUSHING,OUTPUT 3RD&4T
€ 22.00
92028A
920281552
ref: 92028A
BUSHING,INPUT TOP GEA
€ 17.50
92028B
920281639
ref: 92028B
BUSHING
€ 14.00
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
920331037
ref: 92033A
SNAP RING,25.9X1.2T
€ 3.00
92045
92045035
ref: 92045
BEARING-BALL,83993SH2
€ 66.50
92046
920461161
ref: 92046
BEARING-NEEDLE,NKZ20X
€ 46.00
92055
92055035
ref: 92055
O RING
€ 3.00
92143
921431843
ref: 92143
COLLAR,25X40X12
€ 21.00
92200
922001065
ref: 92200
WASHER
€ 4.50
