Genuine EN Kawasaki Parts delivered quickly!


ENGINE COVER(S)

EN500C5 2000 IS / KPH

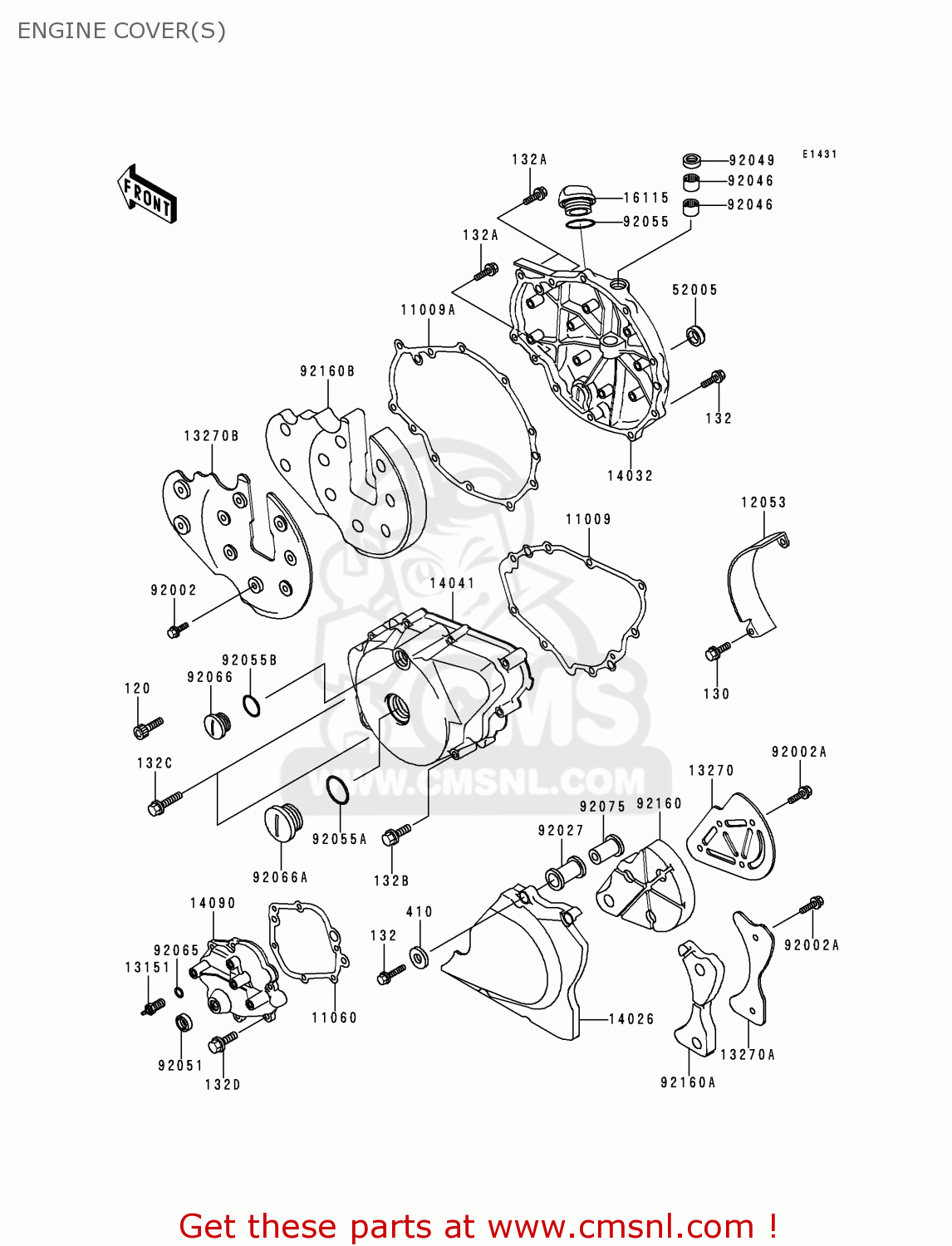

Engine cover(s) diagram EN500C5 2000 IS / KPH

ENGINE COVER(S) EN500C5 2000 IS / KPH
ENGINE COVER(S) EN500C5 2000 IS / KPH
ENGINE COVER(S) EN500C5 2000 IS / KPH
prices are in EUR
ref
part #
description
quantity
120
120S0640
ref: 120
BOLT-SOCKET
120S0640
€ 1.00
130
130G0612
ref: 130
BOLT,FLANGE,6X12
130G0612
€ 0.50
132
132E0625
ref: 132
BOLT-FLANGED-SMALL
132E0625
€ 3.00
132A
132E0635
ref: 132A
BOLT-FLANGED-SMALL
132E0635
€ 3.00
132B
132E0640
ref: 132B
BOLT-FLANGED-SMALL
132E0640
€ 3.50
132C
132E0655
ref: 132C
BOLT-FLANGED-SMALL
132E0655
€ 3.00
132D
132J0620
ref: 132D
BOLT-FLANGED-SMALL
132J0620
€ 2.00
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
11009
110091834
ref: 11009
GASKET,GEN. COVER (NAS)
110091834
€ 17.00
11009A
110091836
ref: 11009A
GASKET, CLUTCH COVER (NAS)
110091836
€ 22.00
11060
110601830
ref: 11060
GASKET (NAS)
110601830
€ 5.50
12053
120531215
ref: 12053
GUIDE-CHAIN
120531215
€ 10.00
13151
131511080
ref: 13151
SWITCH-COMP,NEUTRAL
131511080
€ 9.00
13270
132701558
ref: 13270
PLATE
€ 7.00
13270A
132701559
ref: 13270A
PLATE
€ 3.50
13270B
132701586
ref: 13270B
PLATE
€ 14.00
14026
140261232
ref: 14026
COVER-CHAIN
€ 130.50
14032
140321431
ref: 14032
COVER-CLUTCH
140321431
€ 216.00
14041
140411118
ref: 14041
COVER-COMP,GENERATOR
140411118
€ 159.50
14090
140901661
ref: 14090
COVER,CHANGE MECHANIS
140901661
€ 78.50
16115
161151062
ref: 16115
CAP-OIL FILLER
161151062
€ 13.50
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
520051009
€ 12.00
92002
920021541
ref: 92002
BOLT,6X10
920021541
€ 4.00
92002A
920021604
ref: 92002A
BOLT
920021604
€ 3.00
92027
920271858
ref: 92027
COLLAR
920271858
€ 3.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
920461010
€ 17.00
92049
920491271
ref: 92049
SEAL, OIL
920491271
€ 7.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
92051005A
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92055A
92055091
ref: 92055A
0 RING
92055091
€ 4.00
92055B
920551146
ref: 92055B
RING-O
920551146
€ 5.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
92066
920661397
ref: 92066
PLUG
920661397
€ 10.00
92066A
920661404
ref: 92066A
PLUG
920661404
€ 12.00
92075
920751681
ref: 92075
DAMPER
920751681
€ 3.50
92160
921601687
ref: 92160
DAMPER
€ 57.50
92160A
921601688
ref: 92160A
DAMPER
921601688
€ 17.00
92160B
921601710
ref: 92160B
DAMPER
€ 100.50
