HEADLIGHT(S)
EN500C5 2000 IS / KPH

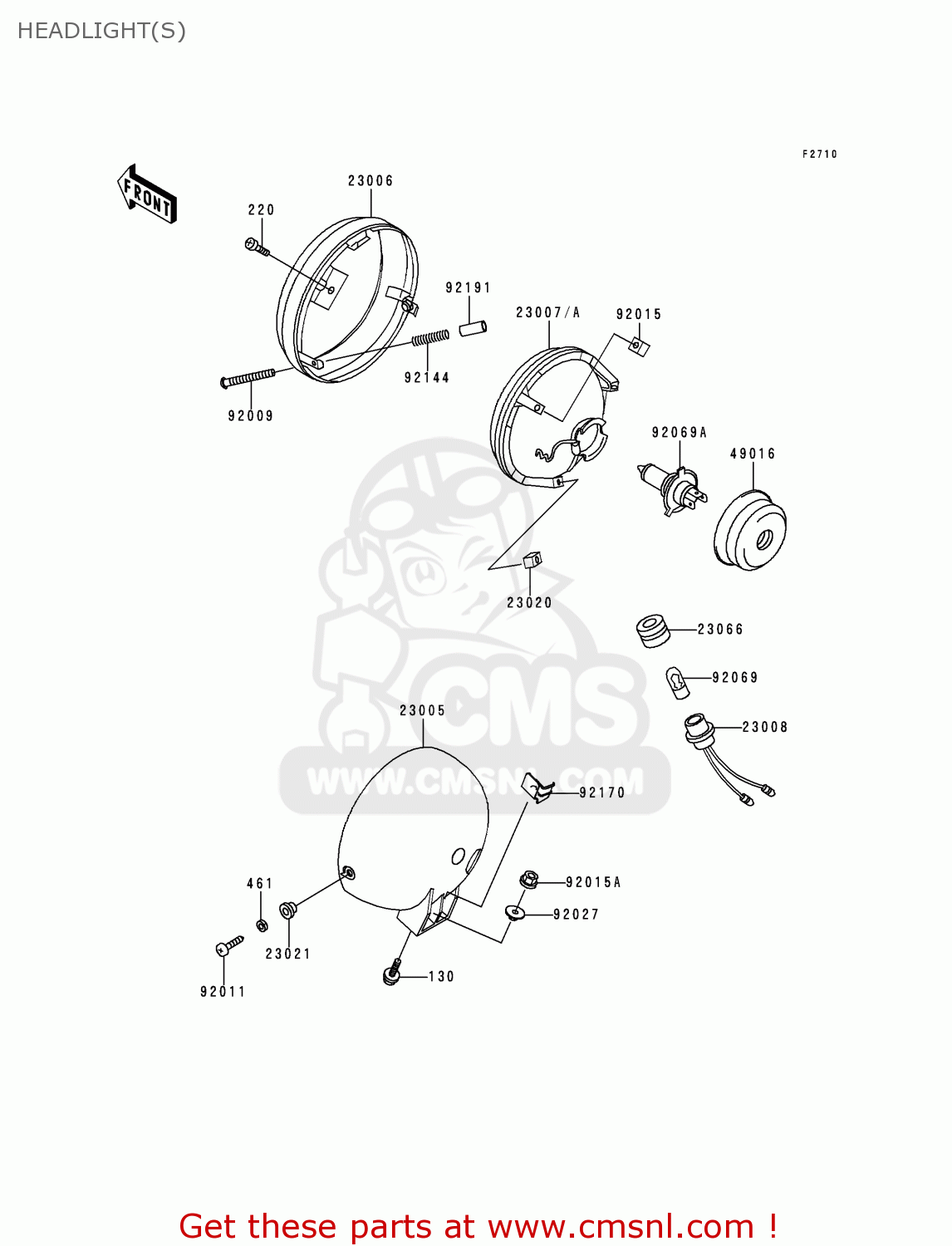

Headlight(s) diagram EN500C5 2000 IS / KPH
HEADLIGHT(S) EN500C5 2000 IS / KPH
×
prices are in EUR
ref
part #
description
quantity
130
130V0620
ref: 130
BOLT-FLANGED
€ 2.00
220
220D0512
ref: 220
SCREW-PAN-CROS,5X12
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
23005
230051149
ref: 23005
BODY-COMP-HEAD LAMP
€ 117.00
23006
230061070
ref: 23006
RIM-LAMP
€ 61.50
23007A
230071262
ref: 23007A
LENS-COMP,HEAD LAMP
€ 151.00
23008
23008038
ref: 23008
SOCKET-ASSY,PARKING L
€ 7.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
€ 3.00
23021
23021010
ref: 23021
WASHER
€ 2.50
23066
23066008
ref: 23066
DAMPER,PARKING LAMP
€ 3.00
49016
490161129
ref: 49016
COVER-SEAL,HEAD LAMP
€ 8.00
92009
920091472
ref: 92009
SCREW,FOCUS ADJUST,4X
€ 3.50
92011
92011024
ref: 92011
SCREW-PAN HEAD,5MM
€ 2.00
92015
920151157
ref: 92015
NUT,5MM
€ 3.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92027
92027252
ref: 92027
COLLAR,L=6.5
€ 3.50
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
92144
921441149
ref: 92144
SPRING,FOCUS ADJUST
€ 5.50
92170
921701624
ref: 92170
CLAMP
€ 3.50
92191
921911217
ref: 92191
TUBE
€ 1.50
