GEAR CHANGE MECHANISM

EN500C5 2000 IS / KPH

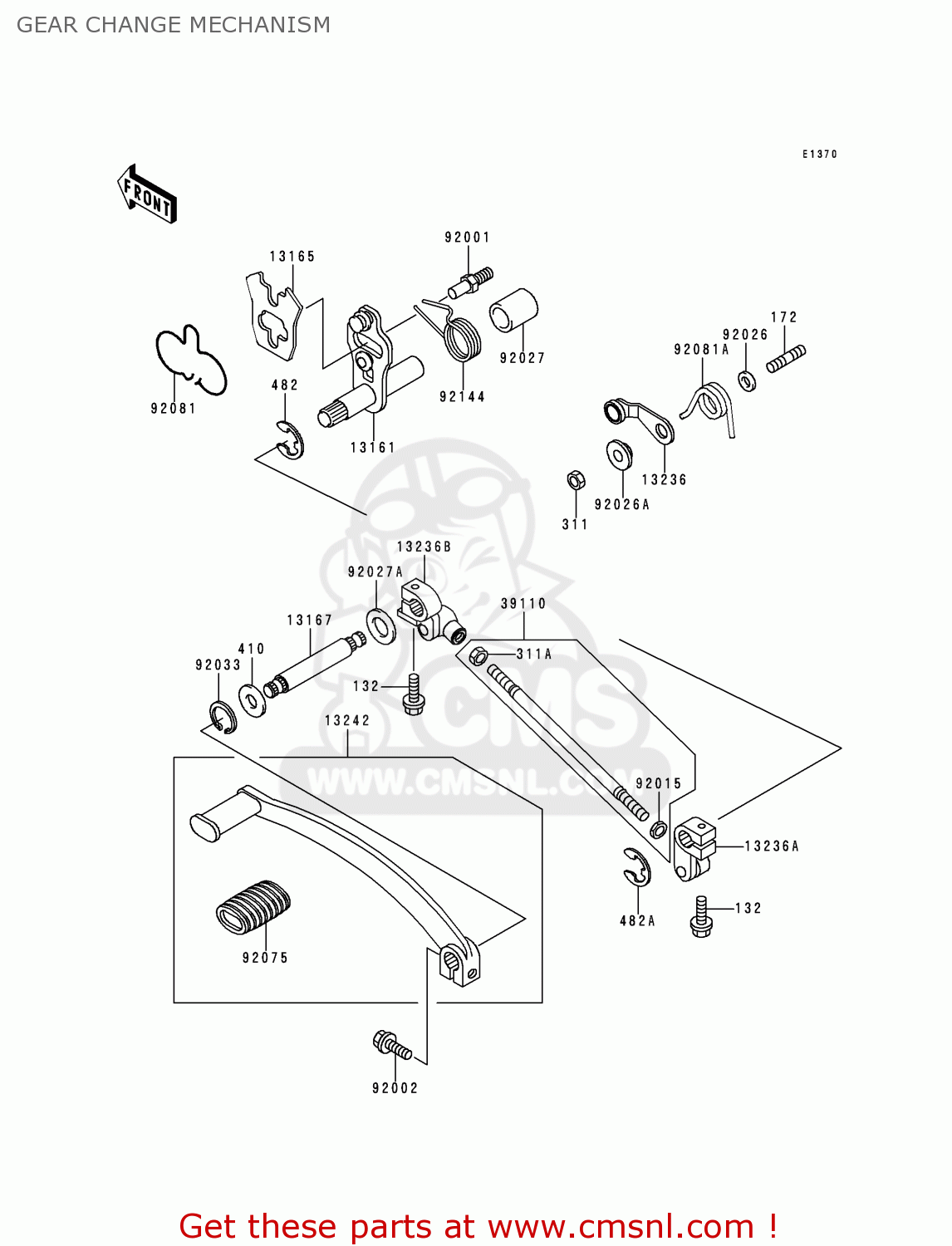

Gear change mechanism diagram EN500C5 2000 IS / KPH

GEAR CHANGE MECHANISM EN500C5 2000 IS / KPH
GEAR CHANGE MECHANISM EN500C5 2000 IS / KPH
GEAR CHANGE MECHANISM EN500C5 2000 IS / KPH
prices are in EUR
ref
part #
description
quantity
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
132J0620
€ 2.00
172
172G0614
ref: 172
STUD,6X14
172G0614
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
311G0600
€ 0.50
311A
311J0600
ref: 311A
NUT-HEX
311J0600
€ 1.00
410
410F1200
ref: 410
410F1200
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
482J0200
€ 2.50
482A
482L7000
ref: 482A
CIRCLIP-TYPE-E
482L7000
€ 2.50
13161
131611117
ref: 13161
LEVER-COMP-CHANGE SHA
131611117
€ 56.00
13165
131651034
ref: 13165
PAWL,CHANGE LEVER
131651034
€ 7.00
13167
131671059
ref: 13167
SHAFT-CHANGE
131671059
€ 41.50
13236
132361103
ref: 13236
LEVER-COMP,GEAR POSIT
132361103
€ 13.00
13236A
132361123
ref: 13236A
LEVER-COMP,CHANGE
132361123
€ 62.00
13236B
132361274
ref: 13236B
LEVER-COMP,CHANGE
€ 67.00
13242
132421331
ref: 13242
LEVER-ASSY-CHANGE,PED
132421331
€ 29.00
39110
391101116
ref: 39110
ROD-ASSY-TIE
391101116
€ 10.50
92001
920011455
ref: 92001
BOLT
920011455
€ 3.00
92002
920021237
ref: 92002
BOLT,6X20
920021237
€ 2.50
92015
920151178
ref: 92015
NUT
920151178
€ 2.50
92026
92026094
ref: 92026
WASHER,THRUST
92026094
€ 6.50
92026A
920261217
ref: 92026A
SPACER
920261217
€ 3.50
92027
920271440
ref: 92027
COLLAR,13X18.3X21.5
920271440
€ 3.50
92027A
920271855
ref: 92027A
COLLAR,13.2X22X5.5
920271855
€ 7.00
92033
920331189
ref: 92033
RING-SNAP,11MM
920331189
€ 3.00
92075
920751585
ref: 92075
DAMPER
920751585
€ 6.50
92081
920811785
ref: 92081
SPRING,CHANGE LEVER
920811785
€ 6.00
92081A
920811786
ref: 92081A
SPRING,POSITION LEVER
920811786
€ 6.00
92144
921441644
ref: 92144
SPRING,CHANGE PEDAL R
921441644
€ 6.00
