RADIATOR
EN500C5 2000 IS / KPH

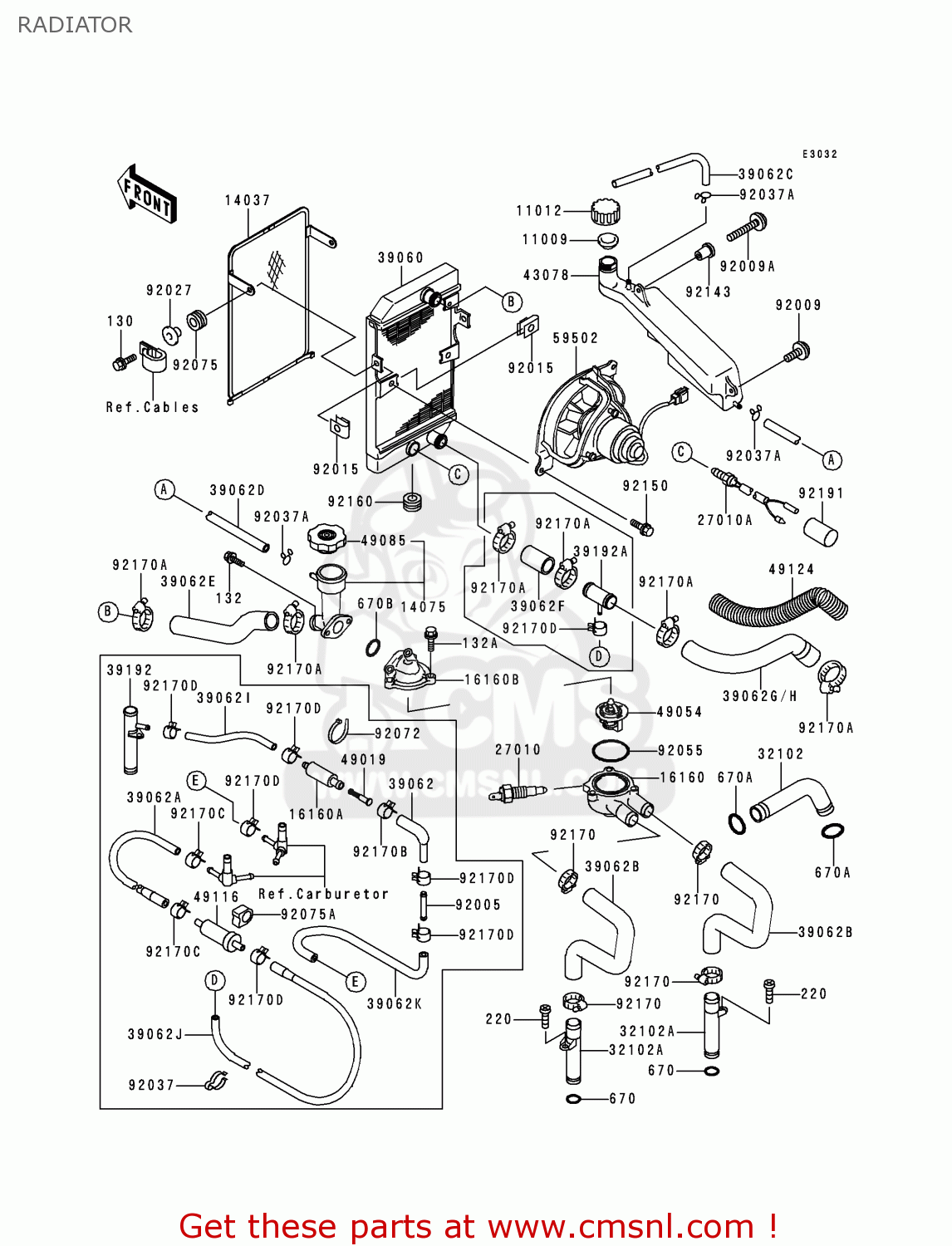

Radiator diagram EN500C5 2000 IS / KPH
RADIATOR EN500C5 2000 IS / KPH
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14037
140371220
ref: 14037
SCREEN,RADIATOR
€ 55.50
14075
140751102
ref: 14075
CAP-ASSY,RADIATOR
€ 173.50
16160
161601138
ref: 16160
BODY,THERMOSTAT,LWR
€ 24.50
16160A
161601151
ref: 16160A
BODY,FILTER
€ 6.50
16160B
161601170
ref: 16160B
BODY,THERMOSTAT,UPP
€ 49.00
27010
270101239
ref: 27010
SWITCH,SENSOR WATER
€ 104.50
27010A
270101307
ref: 27010A
SWITCH,FAN
€ 104.50
32102
321021014
ref: 32102
PIPE
€ 29.50
32102A
321021473
ref: 32102A
PIPE
€ 25.50
39060
390601136
ref: 39060
RADIATOR
€ 649.00
39062
390621314
ref: 39062
HOSE-COOLING
€ 7.50
39062A
390621428
ref: 39062A
HOSE-COOLING,CARBURET
€ 9.50
39062B
390621667
ref: 39062B
HOSE-COOLING,HEAD-THE
€ 22.00
39062C
390621668
ref: 39062C
HOSE-COOLING,OVERFLOW
€ 9.00
39062D
390621669
ref: 39062D
HOSE-COOLING,CAP-RESE
€ 9.00
39062E
390621670
ref: 39062E
HOSE-COOLING,THERMO-R
€ 15.00
39062F
390621671
ref: 39062F
HOSE-COOLING,PIPE-RAD
€ 4.00
39062G
390621672
ref: 39062G
HOSE-COOLING,PUMP-PIP
€ 14.50
39062I
390621685
ref: 39062I
HOSE-COOLING,HEAD-FIL
€ 2.00
39062J
390621686
ref: 39062J
HOSE-COOLING,RADIATOR
€ 11.00
39062K
390621687
ref: 39062K
HOSE-COOLING
€ 6.50
39192
391921019
ref: 39192
PIPE-WATER
€ 16.00
39192A
391921095
ref: 39192A
PIPE-WATER
€ 22.50
43078
430781151
ref: 43078
RESERVOIR
€ 39.00
49019
490191068
ref: 49019
FILTER-FUEL
€ 4.00
130
130J0625
ref: 130
BOLT-FLANGED,6X25
€ 2.00
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0620
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
670
670B2014
ref: 670
O RING,14MM
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
€ 1.00
49054
490541055
ref: 49054
THERMOSTAT
€ 39.50
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
49116
491161081
ref: 49116
VALVE-ASSY
€ 85.00
49124
491241057
ref: 49124
SPRING-TUBE GUARD
€ 19.50
59502
595021116
ref: 59502
FAN-ASSY
€ 460.00
92005
920051318
ref: 92005
FITTING
€ 6.00
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92009A
920091672
ref: 92009A
SCREW,6X35
€ 2.50
92015
920151487
ref: 92015
NUT
€ 3.00
92027
920271767
ref: 92027
COLLAR
€ 3.50
92037
92037093
ref: 92037
CLAMP
€ 7.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92055
920551279
ref: 92055
RING-O,45MM
€ 4.50
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92075
920751680
ref: 92075
DAMPER
€ 4.00
92075A
920751728
ref: 92075A
DAMPER,CARRIER
€ 5.00
92143
921431700
ref: 92143
COLLAR
€ 4.50
92150
921501186
ref: 92150
BOLT
€ 3.00
92160
921601007
ref: 92160
DAMPER
€ 3.50
92170
921701077
ref: 92170
CLAMP,COOLING HOSE
€ 6.50
92170A
921701286
ref: 92170A
CLAMP
€ 13.00
92170B
921701491
ref: 92170B
CLAMP
€ 5.00
92170C
921701492
ref: 92170C
CLAMP
€ 3.00
92170D
921701493
ref: 92170D
CLAMP
€ 3.00
92191
921911080
ref: 92191
TUBE
€ 2.50
670B
670B2020
ref: 670B
O RING,20MM
€ 1.00
