BATTERY CASE
EN500C5 2000 IS / KPH

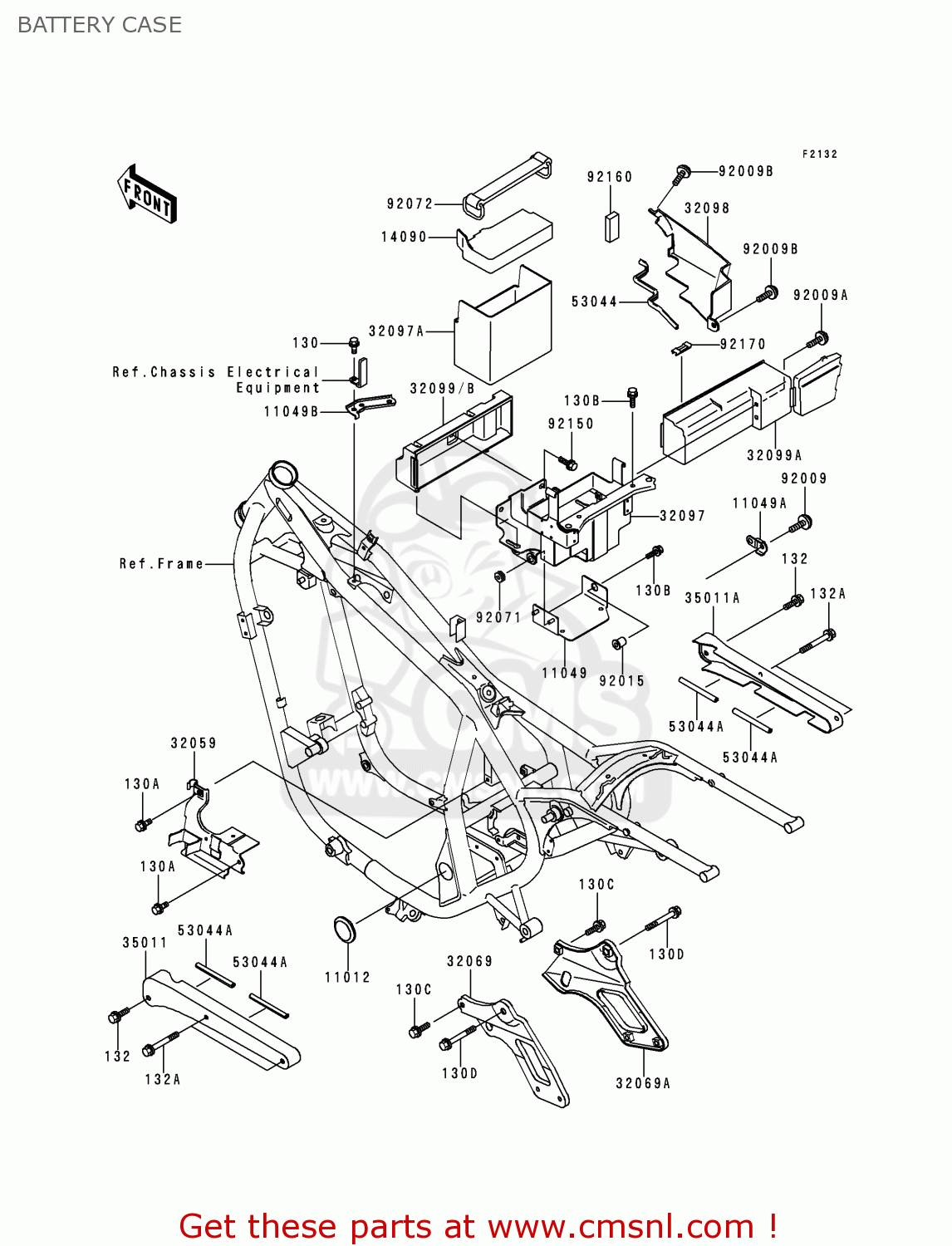

Battery case diagram EN500C5 2000 IS / KPH
BATTERY CASE EN500C5 2000 IS / KPH
×
prices are in EUR
ref
part #
description
quantity
130
130G0614
ref: 130
BOLT,FLANGED,6X14
€ 0.50
130A
130J0610
ref: 130A
BOLT-FLANGED
€ 1.50
130B
130J0616
ref: 130B
BOLT-FLANGED,6X16
€ 1.50
130C
130J0814
ref: 130C
BOLT-FLANGED,8X14
€ 2.50
130D
130J1055
ref: 130D
BOLT-FLANGED,10X55
€ 4.00
132
132E0820
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132E0850
ref: 132A
BOLT-FLANGED-SMALL
€ 3.50
11012
110121821
ref: 11012
CAP,PIVOT
€ 8.50
11049
110491576
ref: 11049
BRACKET,IGNITER
€ 7.50
11049A
110491577
ref: 11049A
BRACKET,AIR CLEANER
€ 3.00
11049B
110491795
ref: 11049B
BRACKET,THERMOSTAT
€ 4.50
14090
140901688
ref: 14090
COVER,BATTERY
€ 16.00
32059
320591132
ref: 32059
BRACKET-SWITCH
€ 16.50
32069
320691453
ref: 32069
BRACKET-MUFFLER,LH
€ 36.50
32069A
320691454
ref: 32069A
BRACKET-MUFFLER,RH
€ 36.50
32097
320971160
ref: 32097
CASE-BATTERY
€ 116.50
32097A
320971163
ref: 32097A
CASE-BATTERY
€ 13.00
32098
320981110
ref: 32098
CASE-TOOL
€ 19.50
32099A
320991170
ref: 32099A
CASE
€ 47.00
32099B
320991177
ref: 32099B
CASE
€ 22.50
35011
350111757
ref: 35011
STAY,LH
€ 98.00
35011A
350111758
ref: 35011A
STAY,RH
€ 98.00
53044
530441299
ref: 53044
TRIM,L=200
€ 8.00
53044A
530443728
ref: 53044A
TRIM,L=100
€ 3.50
92009
920091402
ref: 92009
SCREW,6X10
€ 1.50
92009A
920091651
ref: 92009A
SCREW
€ 2.50
92009B
920091661
ref: 92009B
SCREW
€ 2.50
92015
920151700A
ref: 92015
NUT
€ 5.50
92071
920713733
ref: 92071
GROMMET
€ 2.50
92072
92072006
ref: 92072
BAND,L=142.1
€ 8.00
92150
921501198
ref: 92150
BOLT
€ 2.50
92160
921601439
ref: 92160
DAMPER
€ 3.00
92170
921701646
ref: 92170
CLAMP
€ 2.50
