Genuine EN Kawasaki Parts delivered quickly!


FUEL TANK

EN500C5 2000 IS / KPH

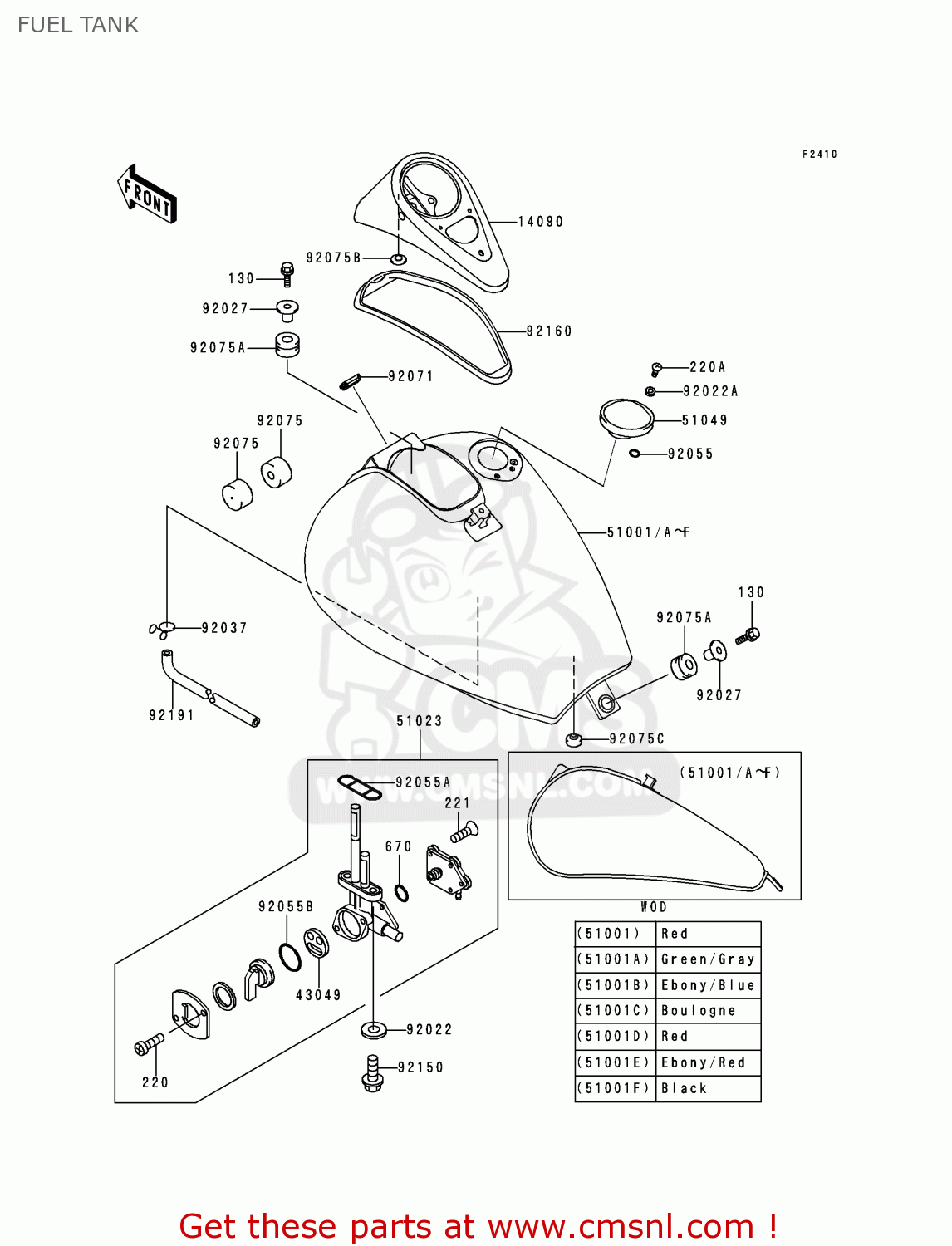

Fuel tank diagram EN500C5 2000 IS / KPH

FUEL TANK EN500C5 2000 IS / KPH
FUEL TANK EN500C5 2000 IS / KPH
FUEL TANK EN500C5 2000 IS / KPH
prices are in EUR
ref
part #
description
quantity
130
130G0830
ref: 130
BOLT,8X30
130G0830
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
220B0308
€ 0.50
220A
220D0510
ref: 220A
SCREW-PAN-CROS
220D0510
€ 0.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
221B0414
€ 2.50
670
670B1504
ref: 670
O RING,4MM
670B1504
€ 2.50
14090
140901560
ref: 14090
COVER,METER
140901560
€ 104.00
43049
430491066
ref: 43049
PACKING,TAP VALVE (NAS)
430491066
€ 5.00
51001B
510011503Q1
ref: 51001B
TANK-COMP-FUEL,EBONY/
€ 1,109.00
51001E
5100115032N
ref: 51001E
TANK-COMP-FUEL,EBONY/
€ 1,109.00
51023
510231223
ref: 51023
TAP-ASSY,FUEL
510231223
€ 95.50
51049
510491103
ref: 51049
CAP-TANK,FUEL
€ 91.00
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92022A
920221977
ref: 92022A
WASHER,5.1X10X1.0
920221977
€ 2.50
92027
920271780
ref: 92027
COLLAR,L=19.3
920271780
€ 4.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
920551023
ref: 92055
ORING
920551023
€ 2.50
92055A
920551112
ref: 92055A
RING-/,FUEL TAP PACKI
920551112
€ 3.00
92055B
920551419
ref: 92055B
RING-O,TAP LEVER
920551419
€ 3.00
92071
920711187
ref: 92071
GROMMET
920711187
€ 3.00
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
92075125
€ 4.00
92075A
920751736
ref: 92075A
DAMPER
920751736
€ 4.00
92075B
920751876
ref: 92075B
DAMPER
920751876
€ 7.00
92075C
92075261
ref: 92075C
DAMPER,BATTERY CASE
92075261
€ 3.00
92150
921501358
ref: 92150
BOLT,FLANGED,6X16
921501358
€ 2.50
92160
921601593
ref: 92160
DAMPER,METER COVER
921601593
€ 33.00
92191
921911015
ref: 92191
TUBE
921911015
€ 19.50
