REAR HUB

EN500C5 2000 IS / KPH

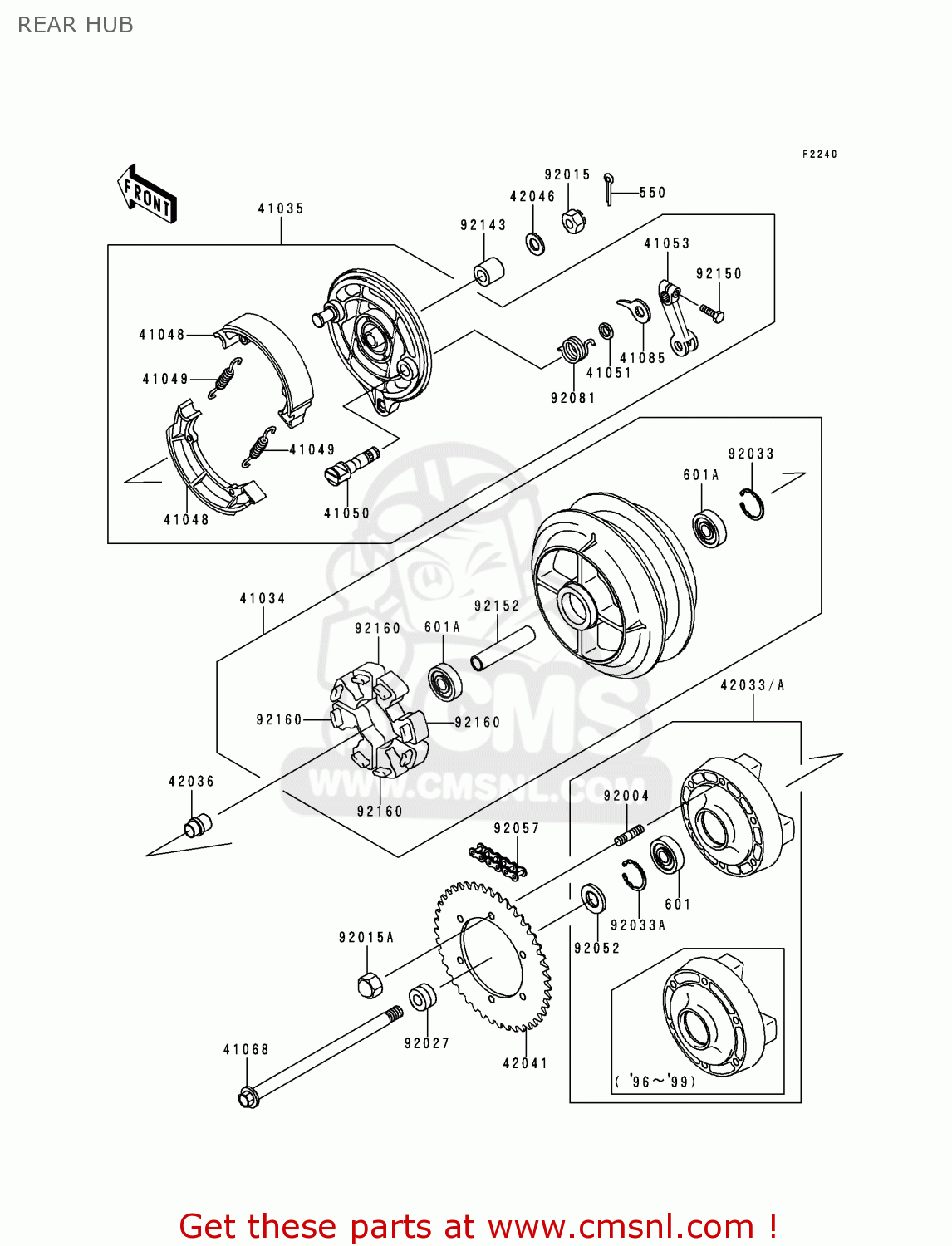

Rear hub diagram EN500C5 2000 IS / KPH

REAR HUB EN500C5 2000 IS / KPH
REAR HUB EN500C5 2000 IS / KPH
REAR HUB EN500C5 2000 IS / KPH
prices are in EUR
ref
part #
description
quantity
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6205UG
ref: 601
BEARING-BALL,#6205UG
601B6205UG
€ 27.00
601A
601B6303UU
ref: 601A
BEARING-BALL,6303LLUC
601B6303UU
€ 30.50
41034
410341258
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 980.50
41035
410351485
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 426.50
41048
410481070
ref: 41048
SHOE-BRAKE (NAS)
410481070
€ 26.00
41049
41049012
ref: 41049
SPRING, BRKE SHOE
41049012
€ 6.00
41050
410501059
ref: 41050
CAM-BRAKE
€ 41.00
41051
41051003
ref: 41051
DUST SHIELD-BRAKE CAM
41051003
€ 2.50
41053
410531072
ref: 41053
LEVER-BRAKE CAM
€ 37.00
41068
410681377
ref: 41068
AXLE,RR
€ 49.50
41085
410851054
ref: 41085
INDICATOR
€ 9.00
42033A
420331204
ref: 42033A
COUPLING-ASSY,RR HUB
€ 194.50
42036
420361328
ref: 42036
SLEEVE,RR HUB,L=28
€ 34.00
42041
420411474
ref: 42041
SPROCKET-HUB,42T
420411474
€ 42.50
42046
42046009
ref: 42046
WASHER-SLEEVE
42046009
€ 5.00
92004
920041151
ref: 92004
STUD,10X19.5
920041151
€ 6.50
92015
920151951
ref: 92015
NUT,CASTLE,16MM
920151951
€ 8.00
92015A
920151961
ref: 92015A
NUT,CAP,10MM
920151961
€ 6.50
92027
920271368
ref: 92027
COLLAR,REAR AXLE,LH,L
920271368
€ 20.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
920331043
€ 6.00
92052
92052006
ref: 92052
OIL SEAL WTC35527
92052006
€ 6.50
92057
920571423
ref: 92057
CHAIN,DRIVE,EK520SX-O
€ 226.00
92081
920811814
ref: 92081
SPRING,BRAKE CAM LEVE
920811814
€ 6.50
92143
921431898
ref: 92143
COLLAR
921431898
€ 15.50
92150
921501797
ref: 92150
BOLT
921501797
€ 3.50
92152
921521117
ref: 92152
COLLAR,RR HUB,L=101
€ 19.50
92160
921601697
ref: 92160
DAMPER,SHOCK,RR HUB
921601697
€ 16.00
