CYLINDER HEAD

EN500C5 2000 IS / KPH

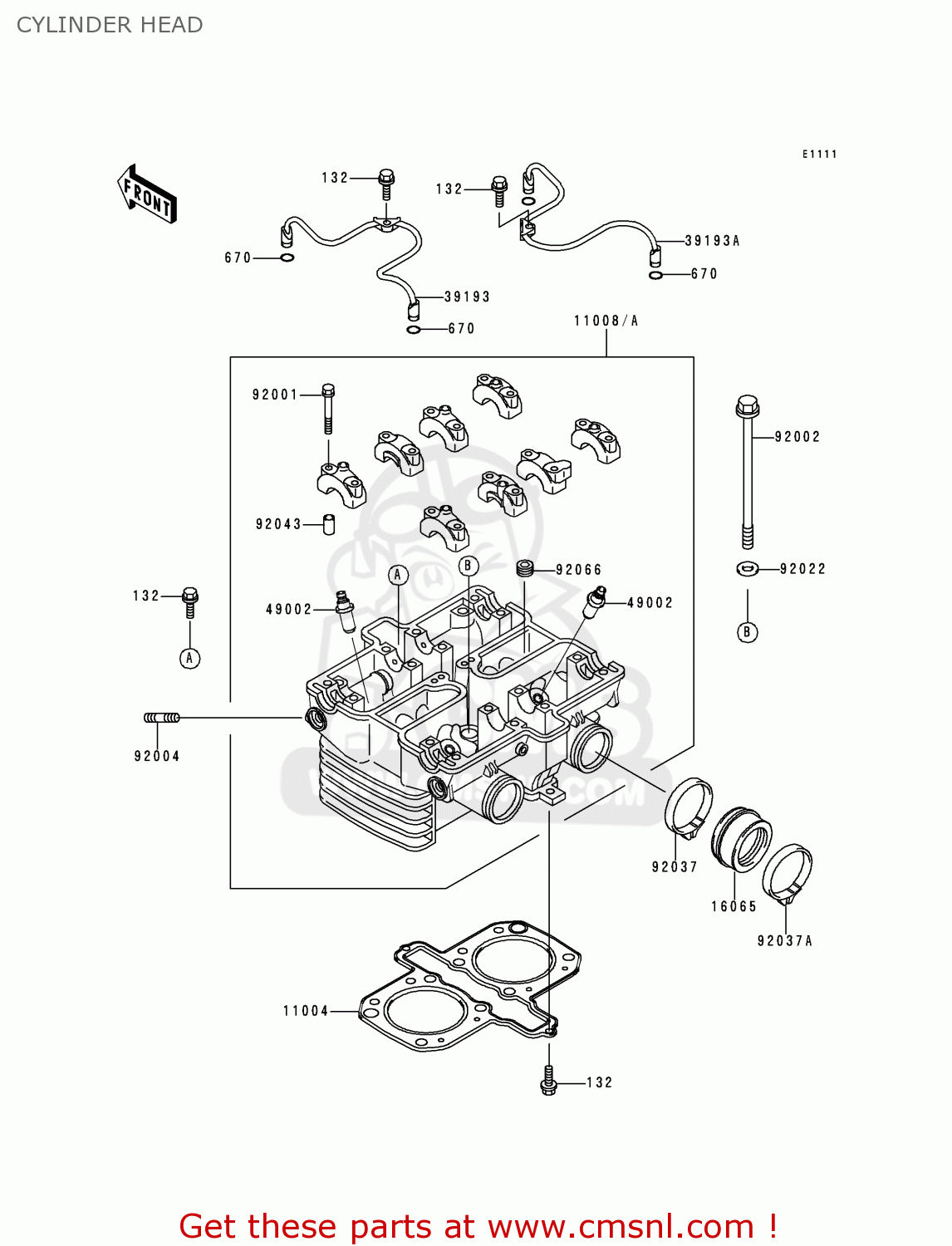

Cylinder head diagram EN500C5 2000 IS / KPH

CYLINDER HEAD EN500C5 2000 IS / KPH
CYLINDER HEAD EN500C5 2000 IS / KPH
CYLINDER HEAD EN500C5 2000 IS / KPH
prices are in EUR
ref
part #
description
quantity
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
132G0620
€ 1.50
670
670D1507
ref: 670
O RING,7MM
670D1507
€ 1.00
11004
110041159
ref: 11004
GASKET-HEAD (NAS)
110041159
€ 61.00
11008A
110081232
ref: 11008A
HEAD-COMP-CYLINDER
110081232
€ 1,317.50
16065
160651320
ref: 16065
HOLDER-CARBURETOR
160651320
€ 14.50
39193
391931038
ref: 39193
PIPE-OIL,LH
€ 44.00
39193A
391931039
ref: 39193A
PIPE-OIL,RH
391931039
€ 44.00
49002
490021052
ref: 49002
GUIDE-VALVE
490021052
€ 26.00
92001
920011872
ref: 92001
BOLT,6X46
920011872
€ 2.50
92002
920021943
ref: 92002
BOLT,10X164
920021943
€ 10.50
92004
920041214
ref: 92004
STUD
920041214
€ 3.50
92022
920221591
ref: 92022
WASHER,10.5X20X1.6
920221591
€ 3.00
92037
920371523
ref: 92037
CLAMP
920371523
€ 8.50
92037A
920371843
ref: 92037A
CLAMP
920371843
€ 5.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92066
920661253
ref: 92066
PLUG,PT1/2X12.5
920661253
€ 6.50
