FRONT FORK
EN500C5 2000 IS / KPH

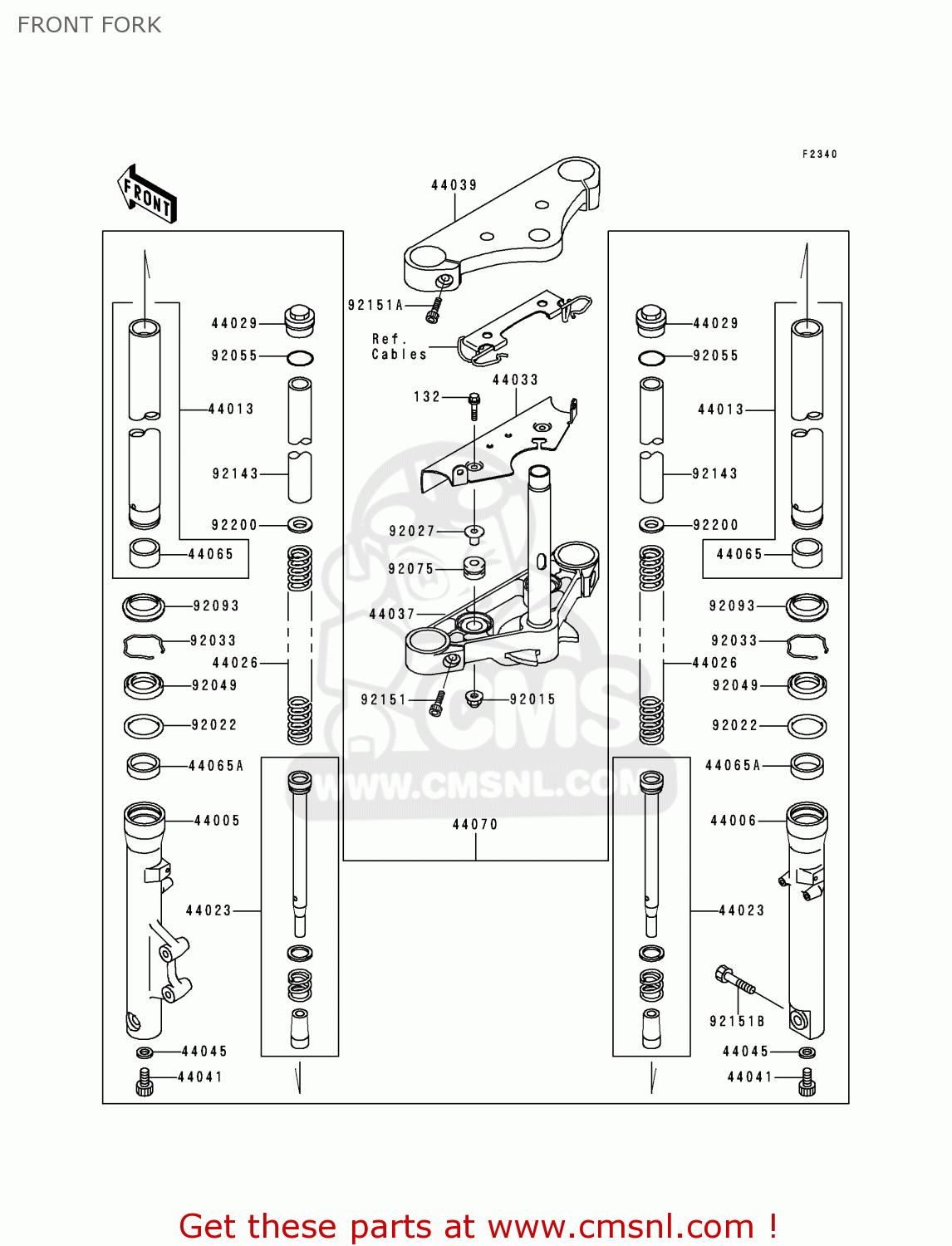

Front fork diagram EN500C5 2000 IS / KPH
FRONT FORK EN500C5 2000 IS / KPH
×
prices are in EUR
ref
part #
description
quantity
132
132E0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
44005
440051365
ref: 44005
PIPE-LEFT FORK OUTER
€ 362.50
44006
440061364
ref: 44006
PIPE-RIGHT FORK OUTER
€ 337.00
44013
440131422
ref: 44013
PIPE-FORK INNER
€ 258.50
44023
440231099
ref: 44023
CYLINDER-COMP-FORK
€ 236.50
44026
440261606
ref: 44026
SPRING-FRONT FORK
€ 48.00
44029
440291147
ref: 44029
SEAT-FORK SPRING
€ 31.50
44033
440331213
ref: 44033
COVER-FORK
€ 49.50
44037
440371341
ref: 44037
HOLDER-FORK UNDER
€ 339.50
44039
440391265
ref: 44039
HOLDER-FORK UPPER
€ 228.50
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
€ 4.50
44045
44045057
ref: 44045
GASKET (NAS)
€ 3.00
44065
440651114
ref: 44065
BUSHING-FRONT FORK,IN
€ 14.50
44065A
440651115
ref: 44065A
BUSHING-FRONT FORK
€ 19.50
44070
440701482
ref: 44070
DAMPER-ASSY,FORK
€ 1,280.00
92015
920151385
ref: 92015
NUT,CAP,6MM
€ 2.50
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
€ 5.50
92027
920271847
ref: 92027
COLLAR,6=16.1
€ 4.00
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92049
920491356
ref: 92049
SEAL-OIL
€ 13.00
92055
920551321
ref: 92055
RING-O
€ 1.00
92075
920751035
ref: 92075
DAMPER RUBBER
€ 3.50
92093
920931359
ref: 92093
SEAL,FORK OUTER TUBE
€ 14.00
92143
921431861
ref: 92143
COLLAR,FORK,L=250
€ 17.00
92151
921511080
ref: 92151
BOLT,SOCKET,10X25
€ 4.00
92151A
921511081
ref: 92151A
BOLT,SOCKET,8X25
€ 3.00
92151B
921511082
ref: 92151B
BOLT,SOCKET,10X40
€ 4.50
92200
922001302
ref: 92200
WASHER
€ 3.00
