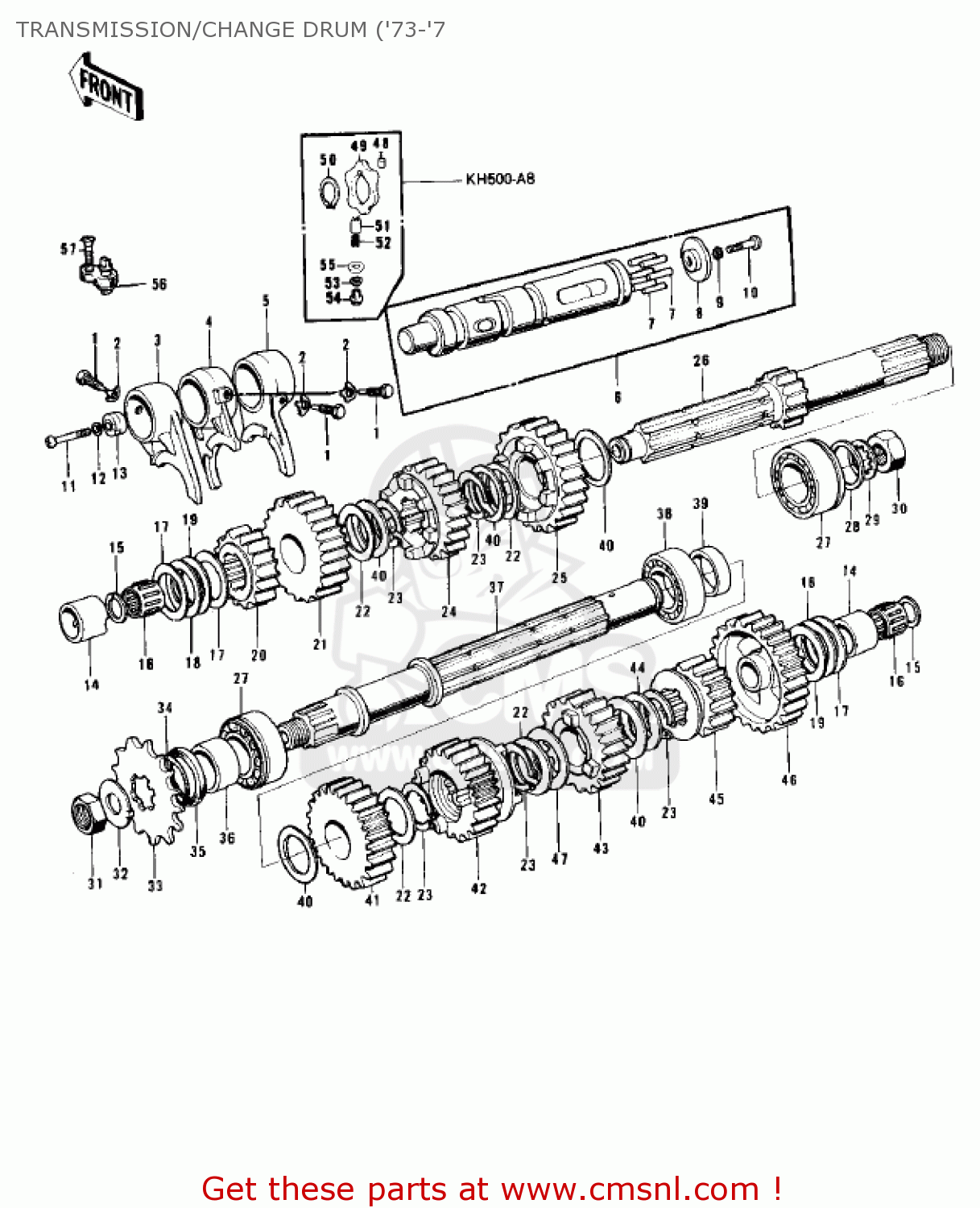

TRANSMISSION/CHANGE DRUM ('73-'7

ref

part #

description

quantity

1

92043016
ref: 1

PIN,SELECT FORK GUIDE

€ 12.50

2

92031001
ref: 2

WASHER,LOCK,10MM

€ 7.00

3

13140064
ref: 3

FORK,SELECTOR,2ND&3R

€ 40.50

4

13140013
ref: 4

FORK-SELECTOR,TOP

€ 56.00

5

13140014
ref: 5
H1-D/E/F

FORK-SELECTOR,LOW

€ 40.50

5

13140014
ref: 5
KH500-A8

FORK-SELECTOR,LOW

€ 40.50

6

13239007
ref: 6
H1-D/E/F

DRUM ASSY-GEAR CHANGE

€ 298.50

6

13239023
ref: 6
KH500-A8

DRUM ASSY,CHANGE

€ 169.50

7

92042014
ref: 7

PIN-GEAR CHANGE DRUM

€ 0.50

8

13142004
ref: 8

PLATE-CHANGE DRUM PIN

€ 1.50

9

464H0600
ref: 9

WASHER-LOCK,6MM

€ 0.50

10

220B0614
ref: 10

SCREW-PAN HEAD,6X14

€ 2.00

11

220B0625
ref: 11

SCREW-PAN HEAD,6X25

€ 1.50

12

461F0600
ref: 12

WASHER-SPRING,6MM

€ 0.50

13

13147001
ref: 13
H1-D/E/F

ROTOR-NEUTRAL SWITCH

€ 3.00

13

13147005
ref: 13
KH500-A8

ROTER,MISSION SWITCH

€ 2.00

14

92028073
ref: 14

BUSH

€ 15.00

15

92033015
ref: 15

CIRCLIP

€ 2.50

16

92046010
ref: 16

BEARING-NEEDLE,#KT202

€ 26.50

17

92022112
ref: 17

WASHER,20.5X30X1,STEE

€ 6.00

18

92022144
ref: 18
H1-D/E/F

SHIM-KICK SHAFT

€ 4.50

18

92022223
ref: 18
KH500-A8

WASHER,20.5X30X1.4

€ 8.50

19

92022113
ref: 19

WASHER,20.5X30X1

€ 6.00

20

13130017
ref: 20

2ND GEAR-DRIVE SHAFT

€ 39.50

21

13134003
ref: 21

4TH GEAR-DRIVE SHAFT

€ 62.00

22

92022076
ref: 22
H1-D

WASHER,25MM

€ 7.00

22

92022161
ref: 22
H1-E/F, KH500-A8

WASHER-THRUST,25MM

€ 7.00

23

92033026
ref: 23

CIRCLIP

€ 6.00

24

13132014
ref: 24

3RD GEAR-DRIVE SHAFT

€ 66.50

25

13136041
ref: 25

TOP GEAR-DRIVE SHAFT

€ 47.00

26

13127019
ref: 26

SHAFT-DRIVE

€ 108.50

27

92045010
ref: 27

BEARING-BALL,#6205NX3

€ 23.00

28

92022114
ref: 28

WASHER-THRUST

€ 1.00

29

463G2000
ref: 29

WASHER-LOCK,20MM

€ 0.50

30

92016028
ref: 30

NUT

€ 9.50

31

92015019
ref: 31

NUT,18MM

€ 4.00

32

92024067
ref: 32

WASHER,LOCK

€ 2.00

33

13144030
ref: 33
STD

SPROCKET-OUTPUT,15T

€ 29.50

33

13144035
ref: 33

ENGINE SPROCKET,14T

€ 29.50

33

13144036
ref: 33

ENGINE SPROCKET,16T

€ 15.50

34

92055035
ref: 34

O RING

€ 3.00

35

92050024
ref: 35

OIL SEAL SC325210

€ 5.00

36

920261024
ref: 36

SPACER-ENG SPROCKET

€ 13.00

37

13128020
ref: 37

SHAFT-OUTPUT

€ 124.00

38

601B6005
ref: 38

BEARING-BALL,#6005C3

€ 11.50

39

92027052
ref: 39

COLLAR

€ 7.00

40

92022225
ref: 40

WASHER-THRUST

€ 3.50

41

13131011
ref: 41

2ND GEAR-OUTPUT SHAFT

€ 76.50

42

13135007
ref: 42

4TH GEAR-OUTPUT SHAFT

€ 57.00

43

13133015
ref: 43

3RD GEAR-OUTPUT SHAFT

€ 60.50

44

92024033
ref: 44

WASHER,TOOTHED,25.5X3

€ 4.50

45

13137010
ref: 45

TOP GEAR-OUTPUT SHAFT

€ 73.50

46

13129024
ref: 46

LOW GEAR-OUTPUT SHAFT

€ 58.00

47

92024072
ref: 47
KH500-A8

WASHER,LOCK

€ 1.50

47

92022225
ref: 47
H1-D/E/F

WASHER-THRUST

€ 3.50

48

610A0406
ref: 48
KH500-A8

ROLLER,4X6

€ 2.50

49

13145006
ref: 49
KH500-A8

DISC,CHANGE DRUM OPRT

€ 14.00

50

480J3000
ref: 50
KH500-A8

CIRCLIP-TYPE-C,30MM

€ 3.50

51

92043076
ref: 51
KH500-A8

PIN-NEUTRAL PISTON

€ 8.00

52

92081112
ref: 52
KH500-A8

SPRING

€ 4.00

53

92065090
ref: 53
KH500-A8

GASKET (NAS)

€ 2.00

54

92001131
ref: 54
KH500-A8

BOLT,10MM

€ 14.00

55

92022053
ref: 55
KKH500-A8

WASHER,THRUST,16.5X21

€ 2.50

56

13151012
ref: 56

SWITCH-NEUTRAL

€ 6.50

57

221B0616
ref: 57

SCREW-CNTSNK HD,6X16

€ 0.50
