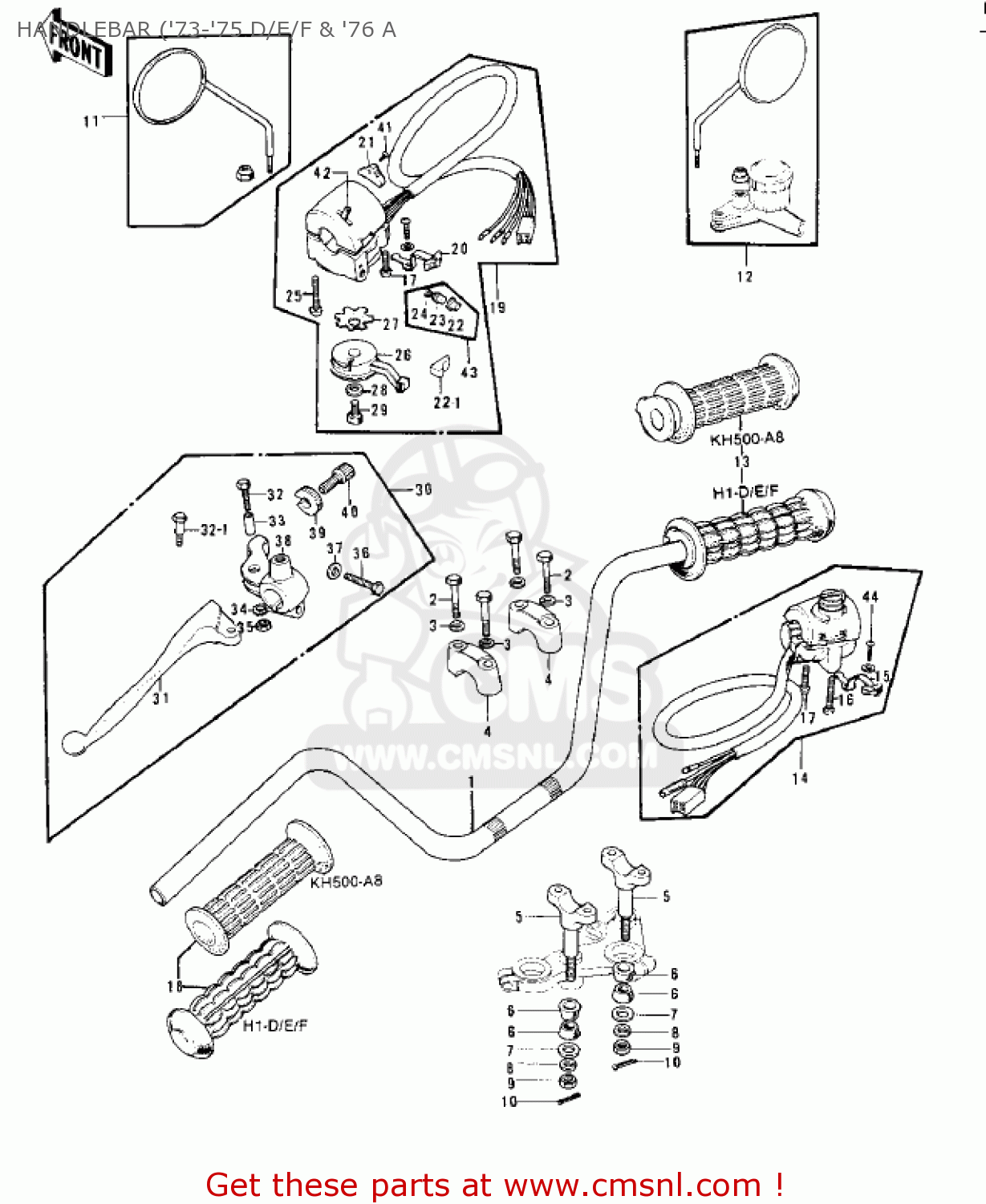

HANDLEBAR ('73-'75 D/E/F & '76 A

ref

part #

description

quantity

1

46003017
ref: 1

HANDLEBAR

€ 38.00

2

920011405
ref: 2

BOLT,8X38

€ 10.00

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

46012008
ref: 4

HOLDER-HANDLE,UPP

€ 23.00

5

46012010
ref: 5

HOLDER-HANDLE,LWR

€ 20.00

6

92075275
ref: 6

DAMPER,HANDLE

€ 6.00

7

92022196
ref: 7

WASHER,10.5X30X2

€ 2.00

8

461F1000
ref: 8

WASHER-SPRING,10MM

€ 0.50

9

314B1000
ref: 9

NUT,10MM

€ 0.50

10

554A0800
ref: 10

PIN-SNAP,8MM

€ 1.00

11

56003009
ref: 11
H1-D/E/F

MIRROR-ASSY,LH

€ 50.00

11

56003019
ref: 11
KH500-A8

MIRROR-ASSY,LH

€ 51.00

12

56002020
ref: 12
H1-D/E/F

MIRROR-ASSY,RH

€ 47.50

12

56002029
ref: 12
KH500-A8

MIRROR-ASSY,RH

€ 49.00

13

46019023
ref: 13
H1-D/E/F

GRIP ASSY-THROTTLE

€ 13.50

13

46019041
ref: 13
KH500-A8

GRIP-ASSY,THROTTLE

€ 28.00

14

46132003
ref: 14
H1-D/E

CASE ASSY,R.H

€ 96.50

14

46132019
ref: 14
H1-F

CASE ASSEMBLY,RH

€ 0.00

14

46132027
ref: 14
KH500-A8

CASE ASSEMBLY,RH

€ 256.00

14

46132028
ref: 14
KH500-A8 CANADA

CASE ASSEMBLY,RH

€ 179.50

15

46043006
ref: 15

KNOB-ASSY,LIGHTING SW

€ 8.00

16

220B0535
ref: 16

SCREW-PAN-CROS

€ 2.00

17

220B0522
ref: 17

SCREW-PAN-CROS

€ 0.50

18

46075017
ref: 18
H1-D/E/F

GRIP,LH

€ 15.50

18

46075028
ref: 18
KH500-A8

GRIP,LH

€ 32.00

19

46091014
ref: 19
H1-D

CASE ASSEMBLY,LH

€ 308.50

19

46091047
ref: 19
H1-E/F,KH500-A8

CASE ASSEMBLY,LH

€ 280.50

20

46043005
ref: 20

KNOB-LIGHTING SW L.H

€ 6.50

21

46044013
ref: 21

KNOB,LIGHTING SWITCH,

€ 8.00

22

270101009
ref: 22
H1-D/E

SWITCH ASSY,HORN BUTN

€ 5.50

22-1

270101001
ref: 22-1
H1-F,KH500-A8

BUTTON, HORN PUSH

€ 6.50

23

270101009
ref: 23
H1-D/E

SWITCH ASSY,HORN BUTN

€ 5.50

24

270101009
ref: 24
H1-D/E

SWITCH ASSY,HORN BUTN

€ 5.50

24-1

270101009
ref: 24-1
H1-D/E

SWITCH ASSY,HORN BUTN

€ 5.50

25

220B0530
ref: 25

SCREW-PAN-CROS

€ 2.00

26

46096009
ref: 26

LEVER,STARTER

€ 15.50

27

92095012
ref: 27

WASHER-LOCK

€ 3.50

28

410B0600
ref: 28

WASHER-PLAIN-SMALL,6M

€ 0.50

29

110B0608
ref: 29

BOLT-HEX HEAD,6X8

€ 0.50

30

46076026
ref: 30
H1-D

LEVER ASSY-CLUTCH

€ 35.00

30

46076036
ref: 30
H1-E/F

LEVER ASSY,CLUTCH

€ 47.00

30

46076051
ref: 30
KH500-A8

LEVER ASSY,CLUTCH

€ 27.00

31

46092015
ref: 31
H1-D

LEVER-GRIP,CLUTCH

€ 11.50

31

46092015
ref: 31
H1-E/F

LEVER-GRIP,CLUTCH

€ 11.50

31

46092023
ref: 31
KH500-A8

LEVER-GRIP,CLUTCH

€ 17.00

32

92007020
ref: 32
H1-D

BOLT-HEX HEAD,5X20

€ 2.50

32-1

92007046
ref: 32-1
H1-E/F

BOLT,HEX HEAD,5X22

€ 4.50

32-1

92007047
ref: 32-1
KH500-A8

BOLT,HEX HEAD

€ 6.50

33

46059011
ref: 33
H1-D, USE FOR 92007-

COLLAR,LEVER

€ 3.50

34

464H0500
ref: 34
H1-D, USE FOR 92007-

WASHER-LOCK,5MM

€ 0.50

35

312B0500
ref: 35
H1-D, USE FOR 92007-

NUT-HEX,5MM

€ 0.50

35

92019014
ref: 35
H1-E/F,KH500-A8

NUT-LOCK,5M/M

€ 2.50

36

110N0625
ref: 36

BOLT-HEX HEAD,6X25

€ 3.50

37

410B0600
ref: 37

WASHER-PLAIN-SMALL,6M

€ 0.50

38

4609401121
ref: 38
H1-D/E/F

HOLDER-CLUTCH LEV,BLK

€ 23.00

38

46094017
ref: 38
KH500-A8

HOLDER,CLUTCH LEVER

€ 23.00

39

46056005
ref: 39

NUT-LOCK

€ 6.00

40

46055006
ref: 40

SCREW-CABLE ADJUST

€ 15.50

41

221B0308A
ref: 41

SCREW-CNTSNK HD,3X8

€ 2.50

42

46089016
ref: 42
H1-D/E

SWITCH ASSEMBLY,LH

€ 22.00

42

46089014
ref: 42
H1-F

SWITCH, L.H

€ 15.00

43

99990530
ref: 43
INCLUDES REF. #S 21,

DIMMER SWITCH KIT A

€ 1.00

44

220B0305A
ref: 44

SCREW-PAN HEAD,3X5

€ 1.00
