SEAT ('69-'72 H1/A/B/C)

H1B 1972 CANADA

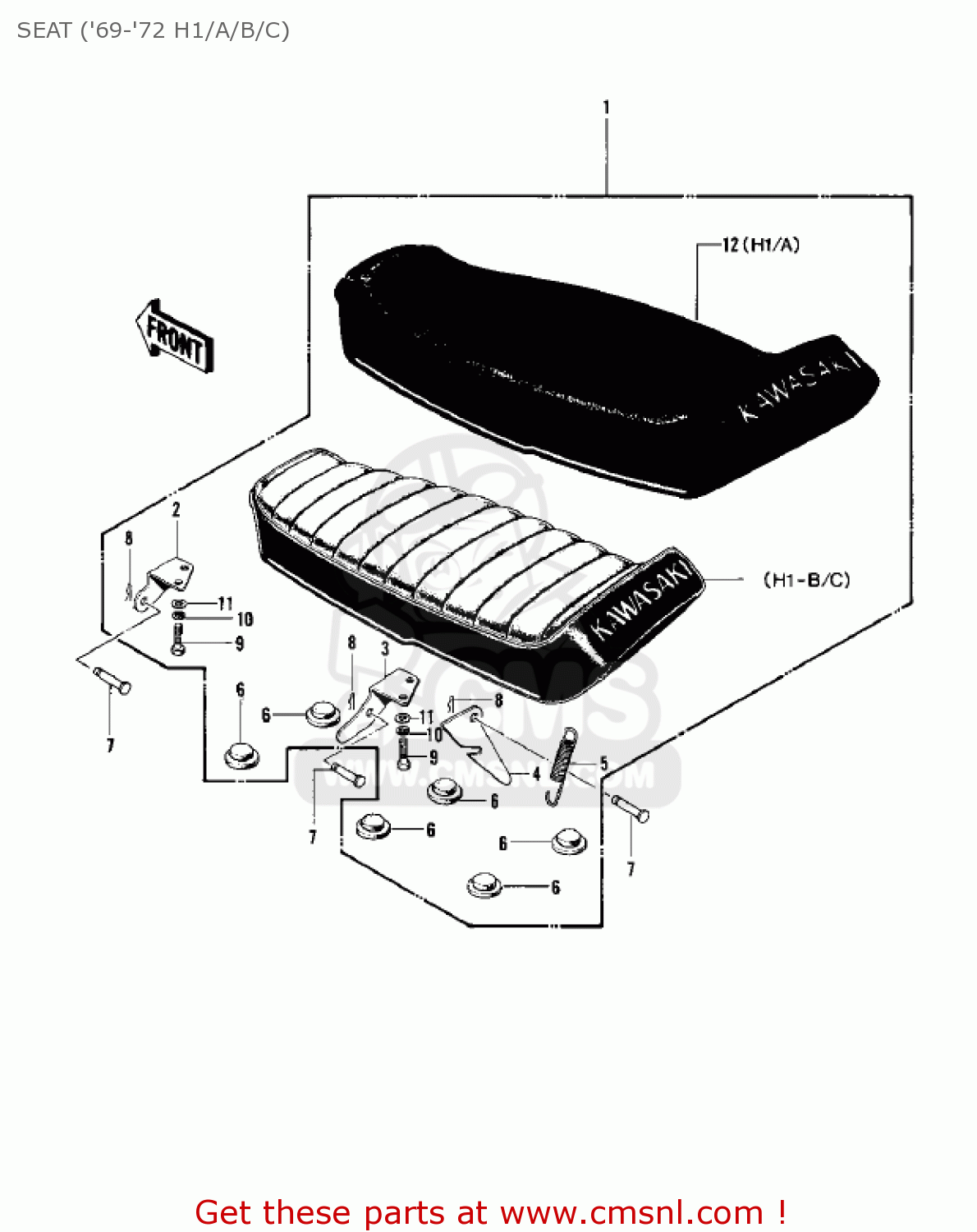

Seat ('69-'72 h1/a/b/c) diagram H1B 1972 CANADA

prices are in EUR

ref

part #

description

quantity

53001060
ref: 1
H1

SEAT ASSY-DUAL

€ 115.50

53001066
ref: 1
H1-A

SEAT-DUAL

€ 115.50

53001072
ref: 1
H1-B/C

SEAT ASSY-DUAL

€ 115.50

5300901210
ref: 2

HINGE-FRONT,BLACK

€ 2.50

5300901310
ref: 3

HING-REAR,BLACK

€ 8.50

53008006
ref: 4

HOOK

€ 1.50

53012002
ref: 5

SPRING

€ 3.00

92075023
ref: 6

DAMPER RUBB-DUAL SEAT

€ 3.00

53011001
ref: 7

PIN,6X12

€ 2.50

550D2015
ref: 8

PIN-COTTER,2.0X15

€ 1.00

554A0800
ref: 8

PIN-SNAP,8MM

€ 1.00

112B0614
ref: 9

BOLT-UPSET 6X14

€ 2.50

461F0600
ref: 10

WASHER-SPRING,6MM

€ 0.50

411B0600
ref: 11

WASHER-PLAIN,6MM

€ 0.50

53003002
ref: 12
H1-A

COVER-DUAL SEAT

€ 18.50
