CRANKCASE ('69-'72 H1/A/B/C)
H1B 1972 CANADA

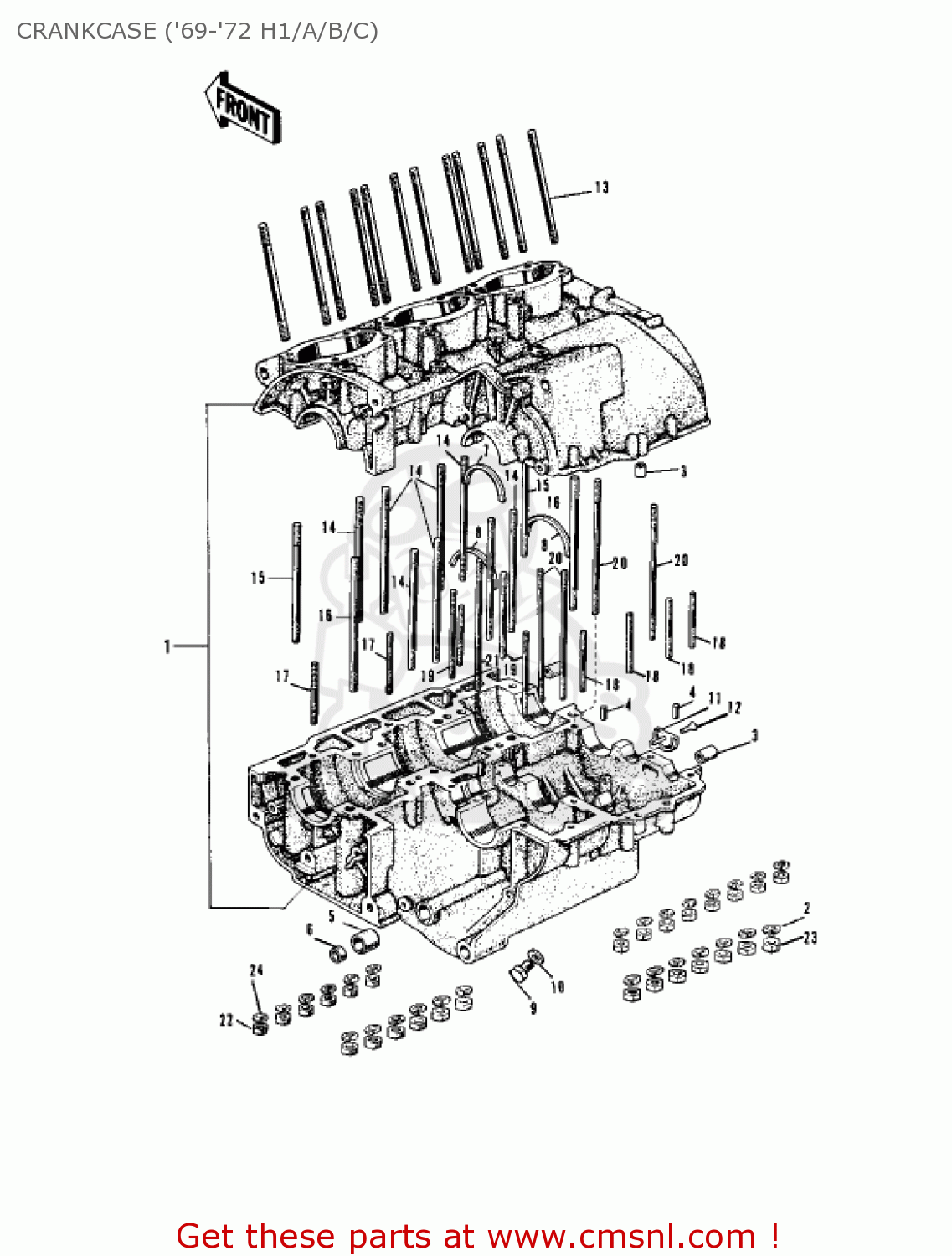

Crankcase ('69-'72 h1/a/b/c) diagram H1B 1972 CANADA
CRANKCASE ('69-'72 H1/A/B/C) H1B 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
14001030
ref: 1
INCLUDES REF. #'S 3-
CRANKCASE SET
€ 1,153.00
2
461F0600
ref: 2
WASHER-SPRING,6MM
€ 0.50
3
920431037
ref: 3
PIN,DOWEL,10X8.2X14
€ 0.50
4
92042016
ref: 4
PIN,DOWEL,6X16
€ 3.50
5
92028071
ref: 5
BUSHING,12X20X20
€ 54.00
6
92049004
ref: 6
OIL SEAL SB12205
€ 6.00
7
140131004
ref: 7
RING-POSITION,CRANK
€ 3.00
8
14013004
ref: 8
RING-BEARING SETTING
€ 7.00
9
92067001
ref: 9
PLUG-OIL DRAIN
€ 3.00
10
92065058
ref: 10
GASKET, 10,5X16X1 (NAS)
€ 2.50
11
14015001
ref: 11
RECEIVER-OIL
€ 3.50
12
221B0616
ref: 12
SCREW-CNTSNK HD,6X16
€ 0.50
13
172G0875
ref: 13
STUD,8X75
€ 4.50
14
172G1060
ref: 14
STUD,10X60
€ 3.50
15
172G1075
ref: 15
STUD,10X75
€ 8.00
16
172G1090
ref: 16
STUD,10X90
€ 7.50
17
172G0620
ref: 17
H1/A
STUD,6X20
€ 1.00
17
172G0622
ref: 17
H1-B/C
STUD,6X22
€ 1.00
18
172G0635
ref: 18
STUD,6X35
€ 3.00
19
172G0650
ref: 19
STUD,6X50
€ 5.50
20
172G0675
ref: 20
STUD,6X75
€ 1.50
21
172G0685
ref: 21
STUD,6X85
€ 1.50
22
317B1000
ref: 22
NUT,10MM
€ 0.50
23
311B0600
ref: 23
NUT,6MM
€ 0.50
24
461F1000
ref: 24
WASHER-SPRING,10MM
€ 0.50
