CRANKCASE ('73-'75 D/E/F & '76 A
H1B 1972 CANADA

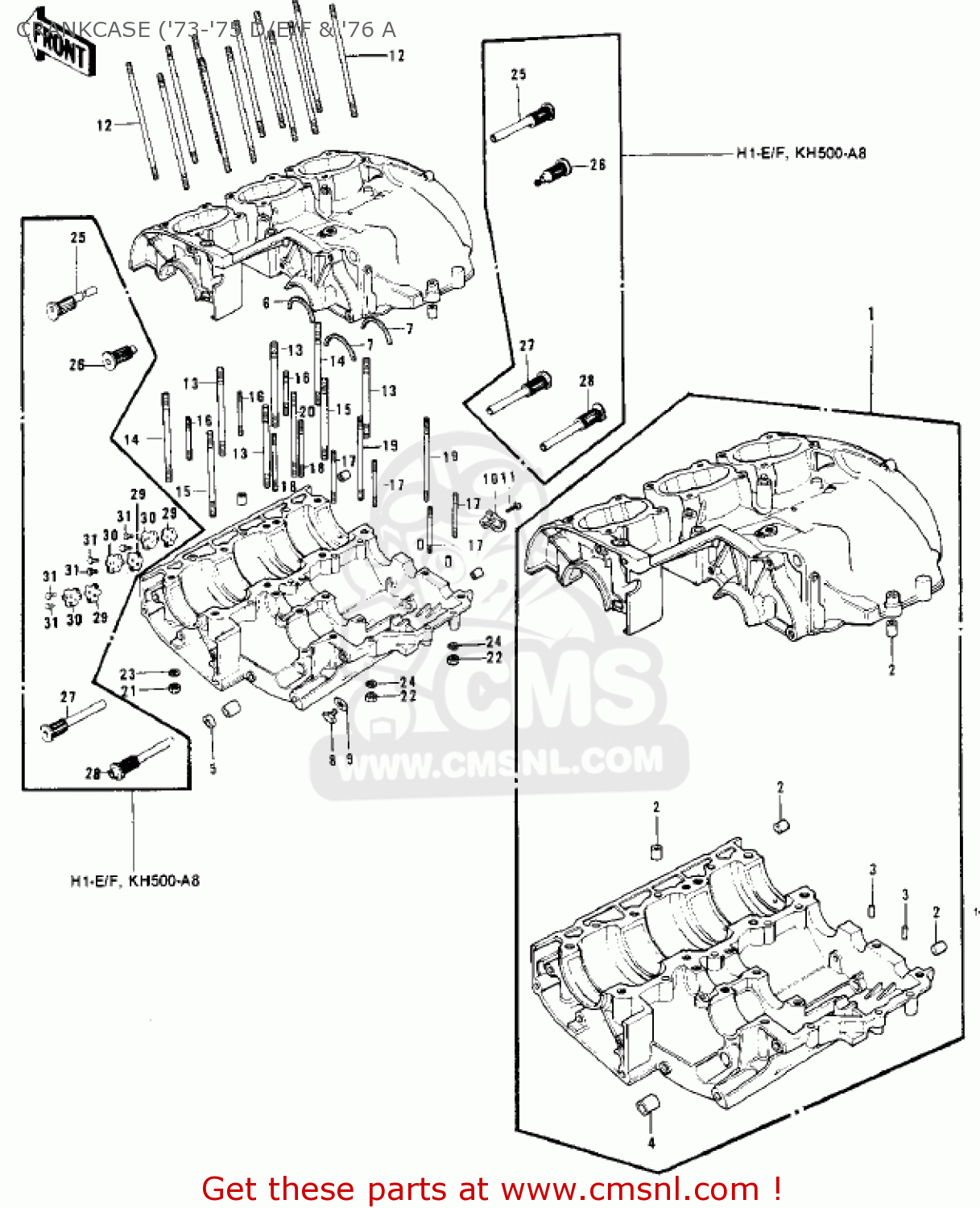

Crankcase ('73-'75 d/e/f & '76 a diagram H1B 1972 CANADA
CRANKCASE ('73-'75 D/E/F & '76 A H1B 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
14001030
ref: 1
H1-D
CRANKCASE SET
€ 1,153.00
1
140015004
ref: 1
H1-E/F
CRANKCASE SET
€ 401.50
1
14001078
ref: 1
KH500-A8
CRANKCASE ASSY
€ 1,064.00
2
920431037
ref: 2
PIN,DOWEL,10X8.2X14
€ 0.50
3
92042016
ref: 3
PIN,DOWEL,6X16
€ 3.50
4
92028071
ref: 4
BUSHING,12X20X20
€ 54.00
5
92049004
ref: 5
OIL SEAL SB12205
€ 6.00
6
140131004
ref: 6
RING-POSITION,CRANK
€ 3.00
7
14013004
ref: 7
RING-BEARING SETTING
€ 7.00
8
92067001
ref: 8
PLUG-OIL DRAIN
€ 3.00
9
92065058
ref: 9
GASKET, 10,5X16X1 (NAS)
€ 2.50
10
14015001
ref: 10
RECEIVER-OIL
€ 3.50
11
221B0616
ref: 11
SCREW-CNTSNK HD,6X16
€ 0.50
12
172G0875
ref: 12
STUD,8X75
€ 4.50
13
172G1060
ref: 13
STUD,10X60
€ 3.50
14
172G1075
ref: 14
STUD,10X75
€ 8.00
15
172G1090
ref: 15
STUD,10X90
€ 7.50
16
172G0622
ref: 16
H1-D
STUD,6X22
€ 1.00
16
172G0620
ref: 16
H1-E/F, KH500-A8
STUD,6X20
€ 1.00
17
172G0635
ref: 17
STUD,6X35
€ 3.00
18
172G0650
ref: 18
STUD,6X50
€ 5.50
19
172G0675
ref: 19
STUD,6X75
€ 1.50
20
172G0685
ref: 20
STUD,6X85
€ 1.50
21
317B1000
ref: 21
NUT,10MM
€ 0.50
22
311B0600
ref: 22
NUT,6MM
€ 0.50
23
461F1000
ref: 23
WASHER-SPRING,10MM
€ 0.50
24
461F0600
ref: 24
WASHER-SPRING,6MM
€ 0.50
25
14017012
ref: 25
H1-E/F, KH500-A8
ABSORBER,FRONT UPPER
€ 12.00
26
14017013
ref: 26
H1-E/F, KH500-A8
ABSORBER,REAR UPPER
€ 16.50
27
14017010
ref: 27
H1-E/F, KH500-A8
ABSORBER,FRONT LOWER
€ 8.50
28
14017011
ref: 28
H1-E/F, KH500-A8
ABSORBER,REAR LOWER
€ 12.00
29
14051003
ref: 29
H1-E/F, KH500-A8
GASKET,CHECK TALVE (MCA)
€ 2.00
30
16128008
ref: 30
H1-E/F, KH500-A8
VALVE,CHECK
€ 9.50
31
220B0620
ref: 31
H1-E/F, KH500-A8
SCREW-PAN HEAD,6X20
€ 2.50
