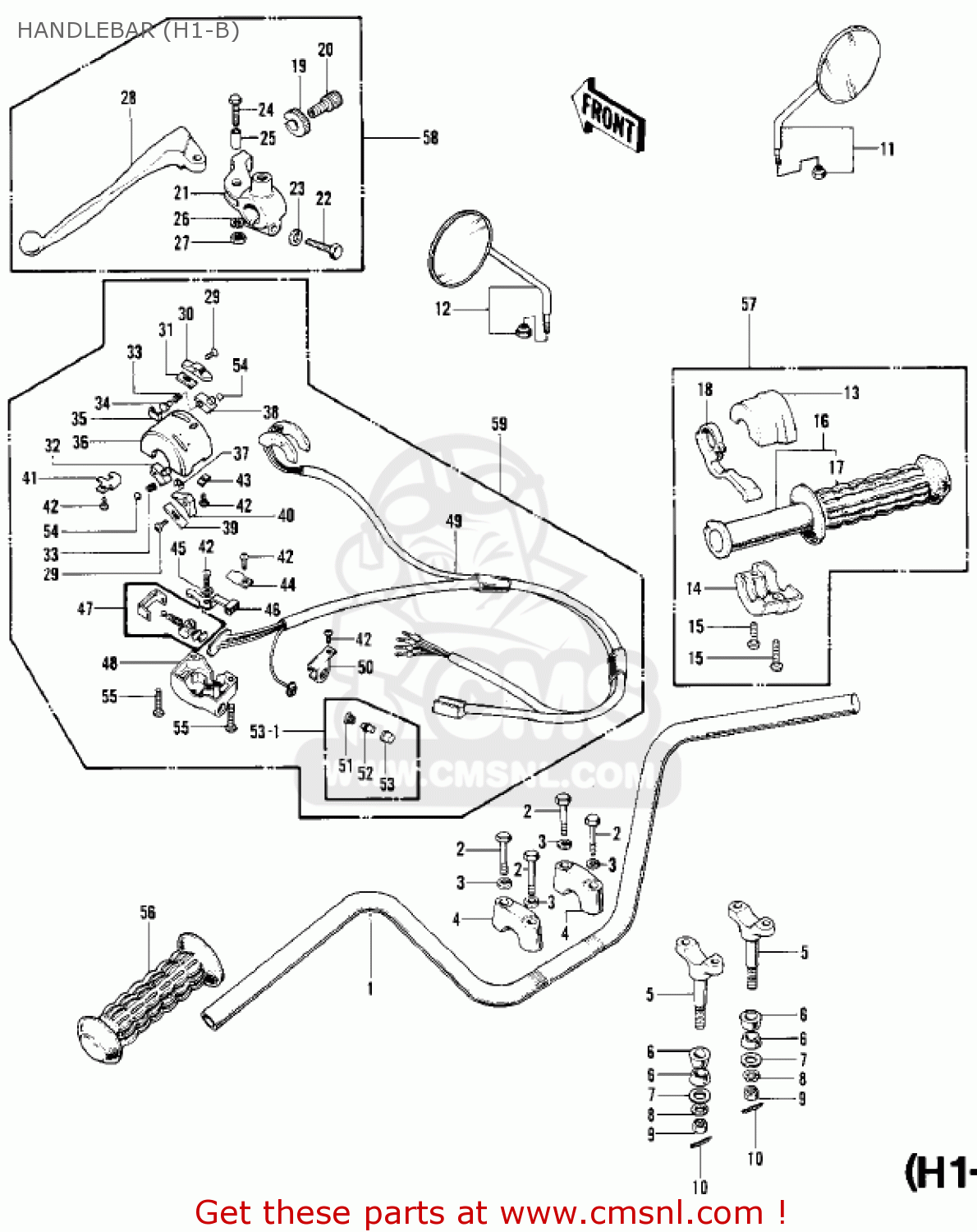

HANDLEBAR (H1-B)

ref

part #

description

quantity

1

46003017
ref: 1

HANDLEBAR

€ 38.00

2

920011405
ref: 2

BOLT,8X38

€ 10.00

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

46012008
ref: 4

HOLDER-HANDLE,UPP

€ 23.00

5

46012010
ref: 5

HOLDER-HANDLE,LWR

€ 20.00

6

92075039
ref: 6

DAMPER RUBBER-HANDLE

€ 3.00

7

92022196
ref: 7

WASHER,10.5X30X2

€ 2.00

8

461F1000
ref: 8

WASHER-SPRING,10MM

€ 0.50

9

314B1000
ref: 9

NUT,10MM

€ 0.50

10

554A0800
ref: 10

PIN-SNAP,8MM

€ 1.00

11

56002020
ref: 11

MIRROR-ASSY,RH

€ 47.50

12

56003009
ref: 12

MIRROR-ASSY,LH

€ 50.00

1

46041006
ref: 1

CASE-R.H UPPER

€ 10.50

14

46023006
ref: 14

CASE-R.H LOWER

€ 10.00

15

220B0522
ref: 15

SCREW-PAN-CROS

€ 0.50

16

46019017
ref: 16

GRIP ASSY-THROTTLE

€ 9.50

17

46061012
ref: 17

GRIP,RUBBER,RH

€ 18.50

18

46096007
ref: 18

LEVER-STARTER

€ 7.50

19

46056005
ref: 19

NUT-LOCK

€ 6.00

20

46055006
ref: 20

SCREW-CABLE ADJUST

€ 15.50

21

4609401121
ref: 21

HOLDER-CLUTCH LEV,BLK

€ 23.00

22

110N0625
ref: 22

BOLT-HEX HEAD,6X25

€ 3.50

23

410B0600
ref: 23

WASHER-PLAIN-SMALL,6M

€ 0.50

24

92007020
ref: 24

BOLT-HEX HEAD,5X20

€ 2.50

25

46059011
ref: 25

COLLAR,LEVER

€ 3.50

26

464H0500
ref: 26

WASHER-LOCK,5MM

€ 0.50

27

312B0500
ref: 27

NUT-HEX,5MM

€ 0.50

28

46092015
ref: 28

LEVER-GRIP,CLUTCH

€ 11.50

29

221B0308A
ref: 29

SCREW-CNTSNK HD,3X8

€ 2.50

30

46044008
ref: 30

KNOB-L.H SWITCH,B

€ 3.00

31

46031006
ref: 31

SPRING-L.H SW KNOB,B

€ 3.50

32

46089005
ref: 32

SWITCH-L.H A

€ 4.50

33

46031007
ref: 33

SPRING-L.H SWITCH

€ 1.50

34

46079004
ref: 34

CONTACT-L.H SWITCH

€ 1.50

35

46080004
ref: 35

PLATE-L.H SW CNTACT,B

€ 3.00

36

46086014
ref: 36

CASE-L.H UPPER

€ 12.00

37

46080003
ref: 37

PLATE-L.H SW CNTACT,A

€ 3.00

38

46089006
ref: 38

SWITCH-L.H,B

€ 4.50

39

46031003
ref: 39

SPRING-L.H SW KNOB

€ 1.50

40

46044011
ref: 40

KNOB-L.H SWITCH

€ 6.00

41

46085018
ref: 41

HOLDER-L.H SW UPPER,A

€ 1.00

42

220B0305A
ref: 42

SCREW-PAN HEAD,3X5

€ 1.00

43

46085019
ref: 43

HOLDER-L.H SW UPPER,B

€ 0.50

44

46085016
ref: 44

HOLDER-L.H SW LOWER,A

€ 2.00

45

92095010
ref: 45

WASHER

€ 2.50

46

46044007
ref: 46

KNOB-SWITCH

€ 8.00

47

46089007
ref: 47

SLIDE BLOCK AY-L.H SW

€ 10.00

48

46077016
ref: 48

CASE-L.H LOWER

€ 17.50

49

46082018
ref: 49

WIRING HARNESS-L.H SW

€ 31.00

50

46085017
ref: 50

HOLDER-L.H SW LOWER,B

€ 1.00

51

270101009
ref: 51

SWITCH ASSY,HORN BUTN

€ 5.50

52

270101009
ref: 52

SWITCH ASSY,HORN BUTN

€ 5.50

53

270101009
ref: 53

SWITCH ASSY,HORN BUTN

€ 5.50

53-1

270101009
ref: 53-1

SWITCH ASSY,HORN BUTN

€ 5.50

54

46079004
ref: 54

CONTACT-L.H SWITCH

€ 1.50

55

220B0522
ref: 55

SCREW-PAN-CROS

€ 0.50

56

46075017
ref: 56

GRIP,LH

€ 15.50

57

46018018
ref: 57

CASE ASSY,R.H

€ 52.00

58

46076022
ref: 58

LEVER ASSY-CLUTCH

€ 42.00

59

46091005
ref: 59

CASE ASSY-L.H

€ 59.50

all assemblies
