TAILLIGHT (H1-B/C)

H1B 1972 CANADA

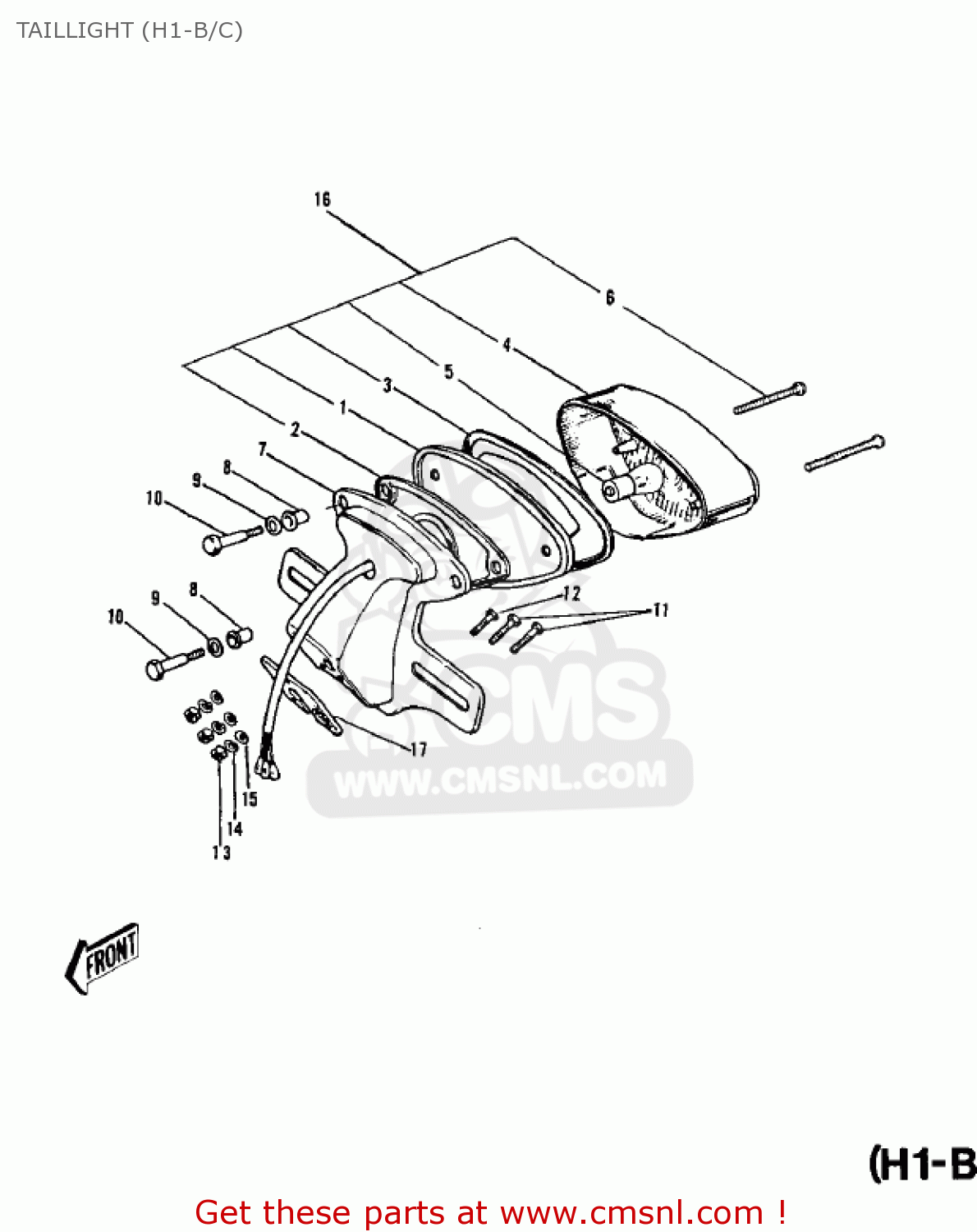

Taillight (h1-b/c) diagram H1B 1972 CANADA

TAILLIGHT (H1-B/C) H1B 1972 CANADA
TAILLIGHT (H1-B/C) H1B 1972 CANADA
TAILLIGHT (H1-B/C) H1B 1972 CANADA
prices are in EUR
ref
part #
description
quantity
1
23027029
ref: 1
CASE-TAIL LAMP
23027029
€ 24.50
2
23028015
ref: 2
GASKET-TAIL LAMP CASE (NAS)
23028015
€ 6.50
3
23028016
ref: 3
GASKET-TAIL LAMP LENS (NAS)
23028016
€ 7.00
4
23026022
ref: 4
LENS,TAIL LAMP
23026022
€ 47.50
5
92069059
ref: 5
BULB,12V 32/3CP
92069059
€ 5.50
6
220R0455
ref: 6
SCREW-PAN-CROS
220R0455
€ 3.50
7
2303601421
ref: 7
BKT-LICENSE PLT,BLACK
€ 25.50
8
92075091
ref: 8
DAMPER RUBBER
92075091
€ 1.50
9
920221561
ref: 9
WASHER,8.5X20X1.6
920221561
€ 2.50
10
92001105
ref: 10
BOLT
92001105
€ 3.00
11
112G0640
ref: 11
BOLT-UPSET,6X40
€ 2.50
12
110G0650
ref: 12
BOLT,HEX HEAD,6X50
110G0650
€ 1.00
13
312B0600
ref: 13
NUT,6MM
312B0600
€ 0.50
14
461F0600
ref: 14
WASHER-SPRING,6MM
461F0600
€ 0.50
15
411B0600
ref: 15
WASHER-PLAIN,6MM
411B0600
€ 0.50
16
23025044
ref: 16
INCLUDES REF. #'S 1-
LAMP ASSY-TAIL
€ 62.50
