CLUTCH ('69-'72 H1/A/B/C)
H1B 1972 CANADA

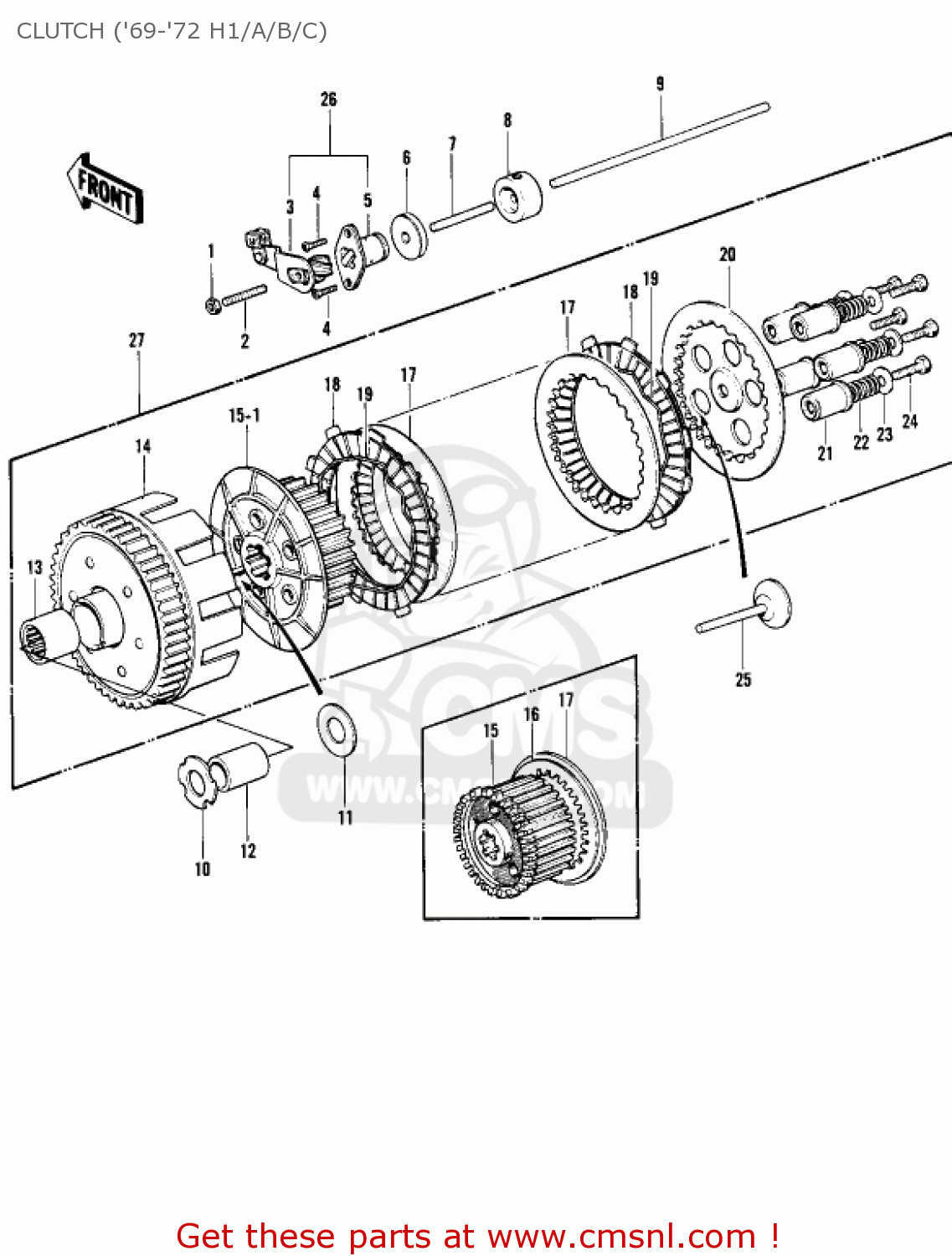

Clutch ('69-'72 h1/a/b/c) diagram H1B 1972 CANADA
CLUTCH ('69-'72 H1/A/B/C) H1B 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
311B0600
ref: 1
NUT,6MM
€ 0.50
2
291Z0622
ref: 2
SCREW-SLOTTED,6X22
€ 5.50
3
13102017
ref: 3
INNER,CLUTCH RELEASE
€ 29.00
4
221B0616
ref: 4
SCREW-CNTSNK HD,6X16
€ 0.50
5
13118008
ref: 5
OUTER,CLUTCH RELEASE
€ 16.00
6
92050025
ref: 6
OIL SEAL SC7317
€ 8.50
7
13116010
ref: 7
ROD-CLUTCH PUSH SHORT
€ 10.50
8
92028070
ref: 8
BUSH-CLUTCH PUSH ROD
€ 18.50
9
13116009
ref: 9
ROD-CLUTCH PUSH LONG
€ 4.50
10
92022119
ref: 10
WASHER-THRUST
€ 4.50
11
92026022
ref: 11
SPACER,25.5X47X2.5
€ 6.50
12
92028081
ref: 12
BUSH
€ 6.50
13
92046004
ref: 13
BEARING,#TLA3030ZC
€ 12.50
14
13095018
ref: 14
INCLUDES REF. #13
HOUSING-CLUTCH
€ 152.50
15
13087030
ref: 15
H1/A
HUB-CLUTCH
€ 51.00
15-1
13087030
ref: 15-1
H1-B/C
HUB-CLUTCH
€ 51.00
16
13090011
ref: 16
NOT REQ'D 13087-03
PLATE-CLUTCH OUTER (NAS)
€ 6.50
17
13089013
ref: 17
USE WITH 13087-02
PLATE-CLUTCH,T=1.6 (NAS)
€ 6.50
17
13089013
ref: 17
USE WITH 13087-03
PLATE-CLUTCH,T=1.6 (NAS)
€ 6.50
18
13088015
ref: 18
PLATE-CLUTCH FRICTION
€ 11.50
18
130881008
ref: 18
PLATE,CLUTCH FRICTION (MCA)
€ 11.50
19
13229003
ref: 19
RING-CLUTCH STEEL
€ 7.50
20
13187005
ref: 20
PLATE-CLUTCH SPRING (NAS)
€ 26.50
21
13092005
ref: 21
GUIDE-CLUTCH SPRING
€ 7.50
22
92081042
ref: 22
SPRING-CLUTCH
€ 4.50
23
13091009
ref: 23
HOLDER-CLUTCH SPRING
€ 2.50
24
112G0618
ref: 24
BOLT-UPSET
€ 0.50
25
13116011
ref: 25
PUSHER-CLTCH SPRG PLT
€ 23.00
26
13231010
ref: 26
RELEASE ASSY,CLUTCH
€ 35.00
27
13081071
ref: 27
NO LONGER AVAILABLE
CLUTCH ASSY
€ 571.50
27
13081071
ref: 27
CLUTCH ASSY
€ 571.50
