CARBURETORS ('69-'72 H1/A/B/C)
H1B 1972 CANADA

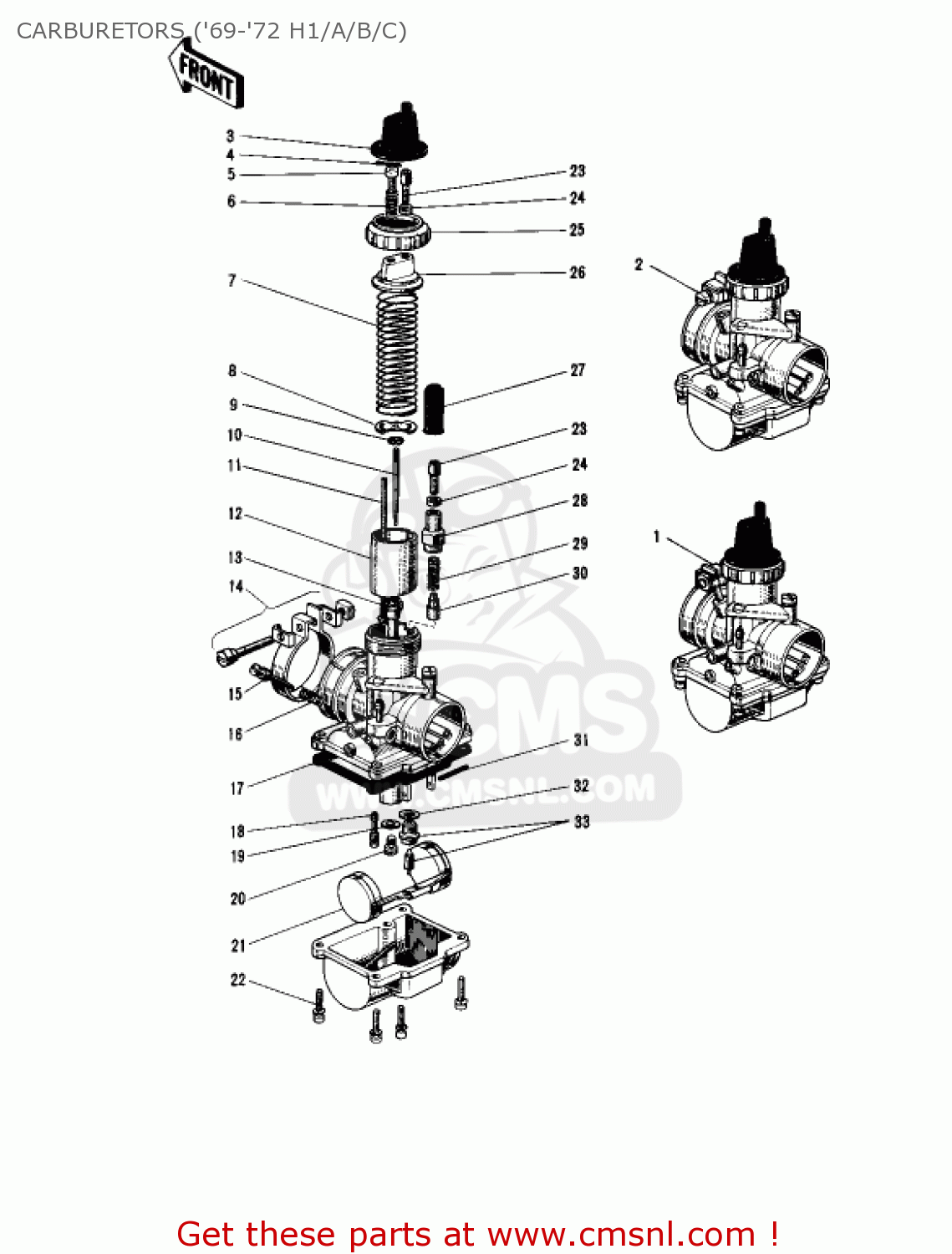

Carburetors ('69-'72 h1/a/b/c) diagram H1B 1972 CANADA
CARBURETORS ('69-'72 H1/A/B/C) H1B 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16001165
ref: 1
CARBURETOR ASY,L.H&CN
€ 289.50
1
16001165
ref: 1
E/NO. 61607-
CARBURETOR ASY,L.H&CN
€ 289.50
1
16001165
ref: 1
CARBURETOR ASY,L.H&CN
€ 289.50
2
16001166
ref: 2
CARBURETOR ASSY,R.H
€ 345.50
2
16001166
ref: 2
E/NO. 61607-
CARBURETOR ASSY,R.H
€ 345.50
2
16001166
ref: 2
CARBURETOR ASSY,R.H
€ 345.50
3
16036004
ref: 3
BOOT,CARBURETOR RUBBE
€ 34.00
4
550D1210
ref: 4
PIN-COTTER,1.2X10
€ 1.50
5
16021002
ref: 5
SCREW-THROTTLE STOP
€ 12.00
6
16022005
ref: 6
SPRING-THR STOP SCREW
€ 5.50
7
16006012
ref: 7
SPRING-THROTTLE VALVE
€ 10.50
8
16007007
ref: 8
SPRING SEAT-THRTL VLV
€ 7.50
9
16008010
ref: 9
CLAMP,E-TYPE
€ 5.00
10
16009021
ref: 10
H1/A/C
JET NEEDLE 5GL1
€ 9.00
10
16009049
ref: 10
H1-B
JET NEEDLE 5DJ19
€ 20.50
11
16024005
ref: 11
ROD-THROTTLE VLV STOP
€ 2.00
12
16025021
ref: 12
H1/A/C
VALVE-THROTTLE CA3.0
€ 21.00
12
16025048
ref: 12
H1-B
VALVE-THROTTLE CA2.0
€ 62.50
13
16017029
ref: 13
H1/A/C
NEEDLE JET O-2
€ 8.00
13
16017058
ref: 13
H1-B, -E/NO. 61606
NEEDLE JET 0-4
€ 18.00
13
16017062
ref: 13
H1-B, E/NO. 61607
NEEDLE JET,0-4
€ 17.00
14
16051002
ref: 14
CLAMP SET-CARB MOUNT
€ 8.00
15
16014006
ref: 15
SCREW-PILOT AIR
€ 9.00
16
16022007
ref: 16
SPRING-THR STOP SCREW
€ 5.50
17
16019008
ref: 17
GASKET,FLOAT CHAMBER (NAS)
€ 27.00
18
92064022
ref: 18
PILOT JET #30 ISO
€ 11.50
19
16034001
ref: 19
WASHER-MAIN JET
€ 2.50
20
920631033
ref: 20
H1/A/C, STD
JET-MAIN,#A100R
€ 17.00
20
920631031
ref: 20
H1-B, STD
MAIN JET,#95R
€ 10.00
20
92063094
ref: 20
JET-MAIN,#87.5R
€ 11.00
20
920631029
ref: 20
JET-MAIN,#A90R
€ 10.50
20
92063068
ref: 20
MAIN JET,#92.5R
€ 15.50
20
920631035
ref: 20
MAIN JET,#97.5R
€ 10.00
20
920631028
ref: 20
JET-MAIN,#A102.5R
€ 10.00
20
920631042
ref: 20
JET-MAIN,#A105R
€ 10.50
21
16031023
ref: 21
H1/A/C
FLOAT
€ 22.50
21
16031023
ref: 21
H1-B
FLOAT
€ 22.50
22
16033009
ref: 22
SCREW-FLOAT CHAMBER
€ 0.50
23
16002017
ref: 23
ADJUSTER-CABLE
€ 8.00
24
16003004
ref: 24
NUT-CABLE ADJUST LOCK
€ 4.50
25
16004006
ref: 25
CAP-MIXING CHAMBER
€ 14.00
26
16005016
ref: 26
TOP-MIXING CHAMBER
€ 8.00
27
16036005
ref: 27
CAP-CABLE ADJUST RUBB
€ 7.50
28
16012008
ref: 28
CAP-STARTER PLUNGER
€ 4.00
29
16013003
ref: 29
SPRING-STARTER PLUNG
€ 4.00
30
16016002
ref: 30
PLUNGER,STARTER
€ 20.00
31
16032003
ref: 31
FLOAT PIN
€ 4.00
32
16029004
ref: 32
WASHER-FLOAT VLV SEAT
€ 2.50
33
16030005
ref: 33
VALVE-FLOAT,2.5
€ 43.00
